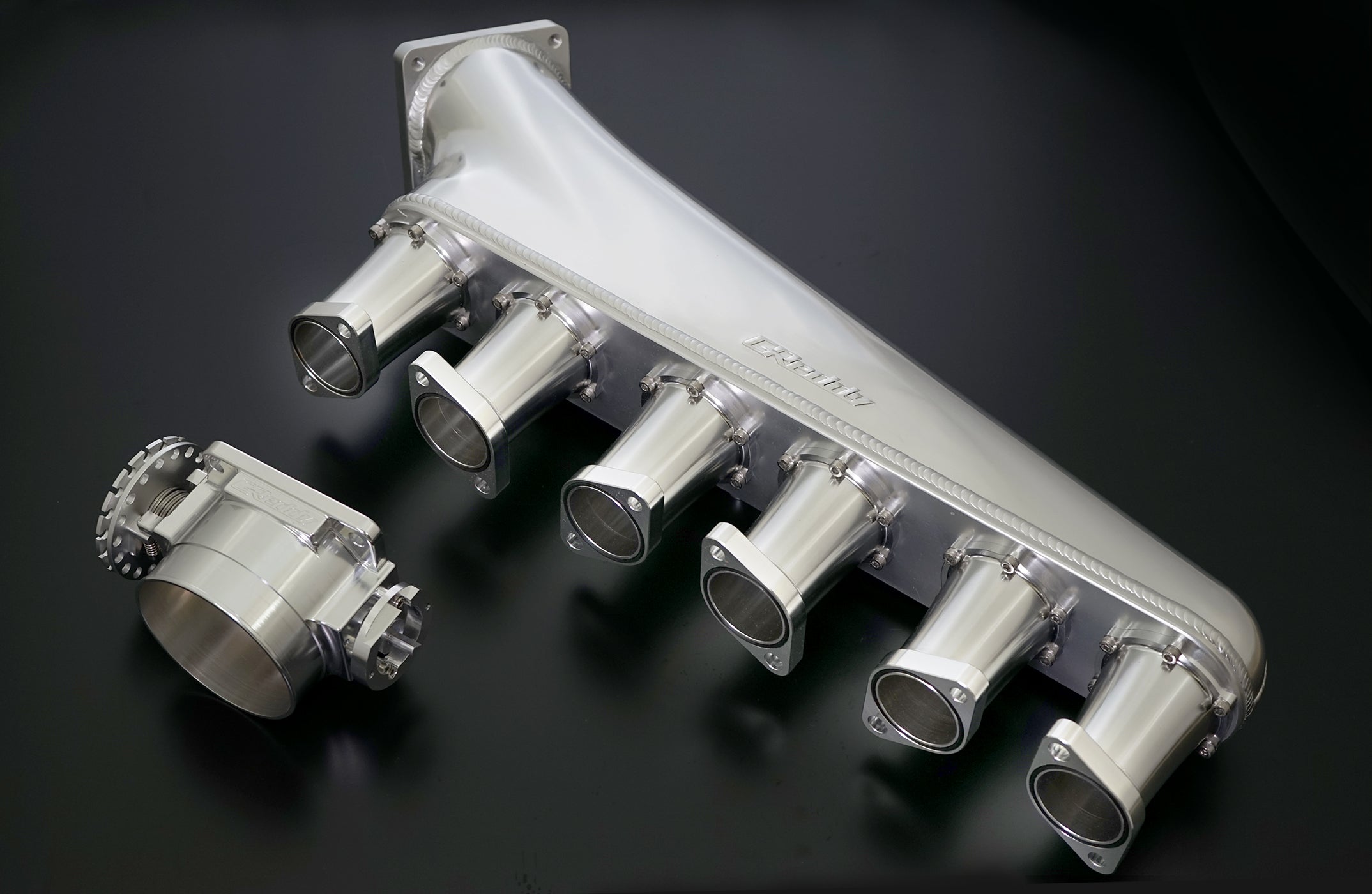

RB26 Surge Tank w/ 90mm Throttle Body

Sale price$2,300.00

Part #: 13522307

GReddy intake plenums are designed to maximize performance in highly tuned engines. The single throttle body surge tank conversion for the RB26 puts an emphasis on a balance of high power and mid-range torque.

Compatible Models

Chassis: BNR32 / BCNR33 / BNR34 (Skyline GT-R)
Engine: RB26DETT

Product Features

  • Large 90mm throttle body and a 4.1L surge tank, 121% larger than the OEM piece

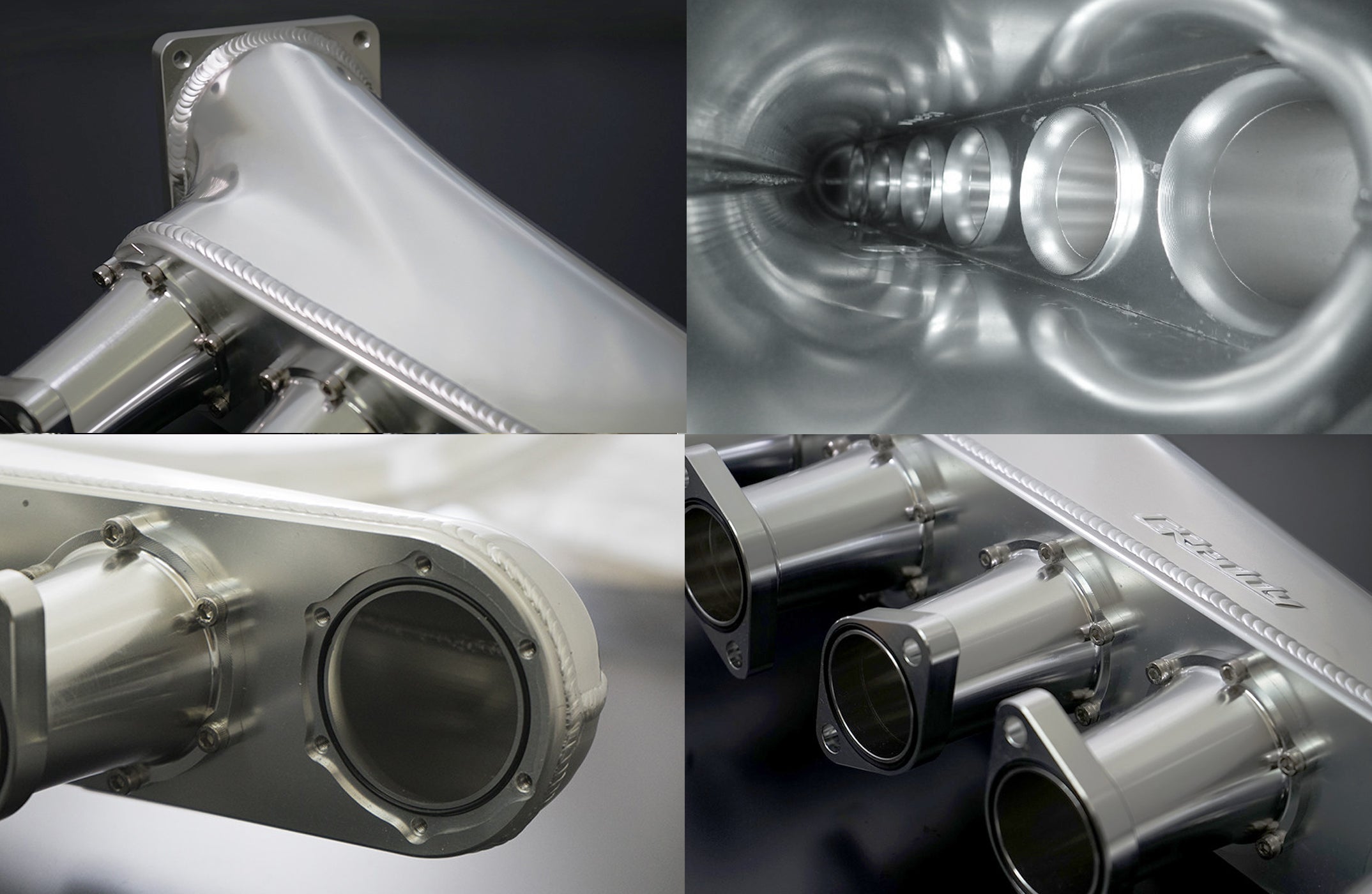

  • Thick 3mm formed metal tank, welded to a precision machined, grooved base plate for extra rigidity in high-boost applications
  • Six individual internal velocity stacks
  • Carefully designed and manufactured sealing rings between each connection
  • CNC machined primary runners sized for optimal efficiency
  • Anodized for a durable, scratch and rust resistant finish
  • Testing on a high-powered R32 GT-R showed a substantial increase in power throughout the RPM range, from 958hp / 663ft-lb to 1023hp / 697ft-lb

Specification

  • Collector surge tank size: 4.1L (121% over OEM)
  • Surge tank and base plate come pre-welded
  • CNC machined inlet runners: length 90mm, pipe size 58-45mm (tapered)

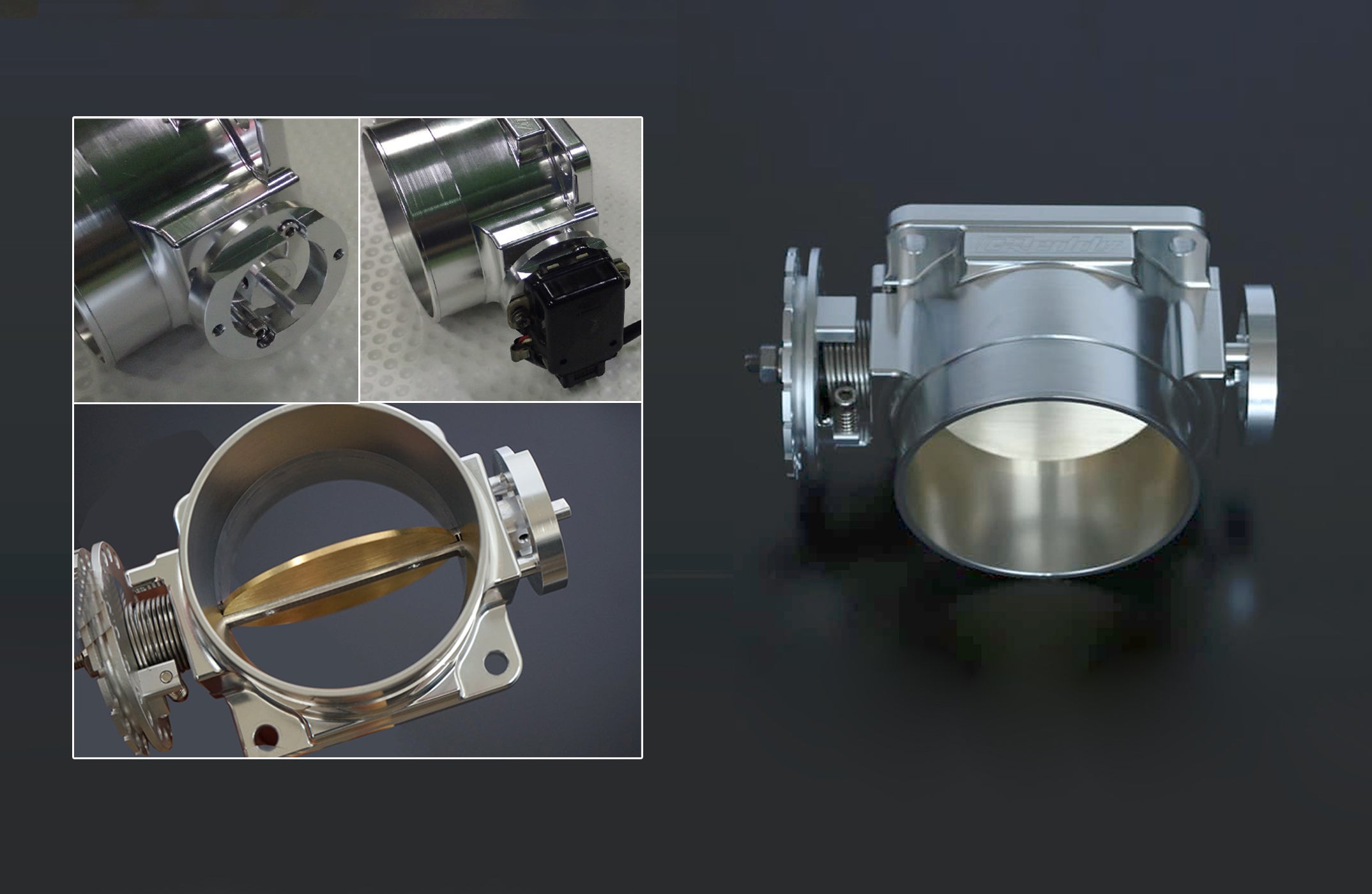

  • Throttle-body hose diameter: 100mm, internal butterfly diameter 90mm, with low-profile throttle shaft
  • Specially designed O-ring style gasket for sealing each runner
  • Compatible with the OEM AAC valve and TPS throttle position sensor

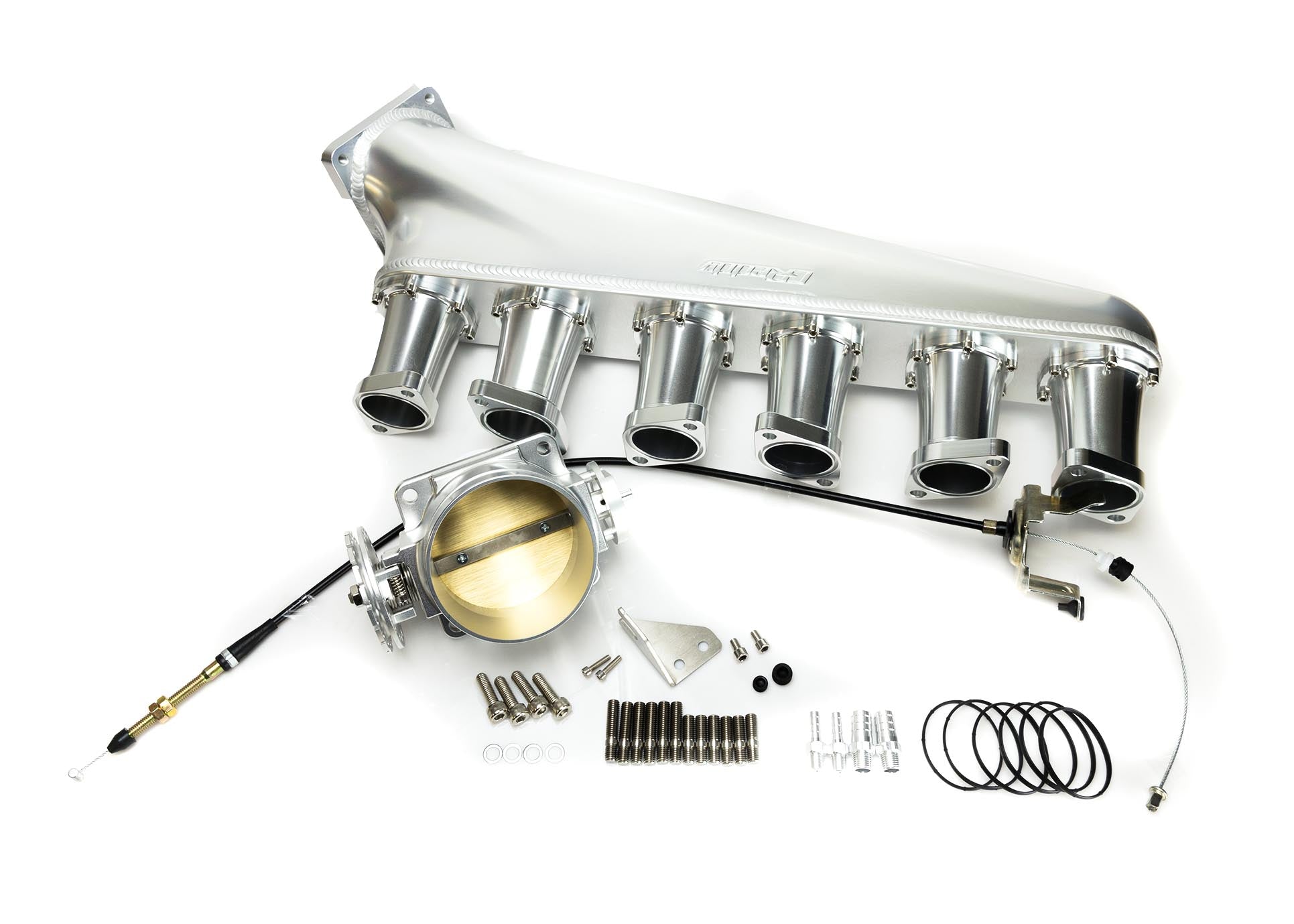

Kit Includes

  • Surge tank
  • 6x CNC primary runners
  • Throttle body

Optional Items

  • 13920402: 80mm aluminum piping set for RB26 single TB surge tank
  • 13920403: 100mm aluminum piping set for RB26 single TB surge tank
  • 13512303-AN: Additional AN8 O-ring fitting
  • 13522307-O: Replacement O-rings, runner to plenum side (6)
  • 99900059: Replacement O-rings, intake runner side (6)

Notes

  • For competition (race) use only. Check the legality of aftermarket products with your local state, county and city authorities before purchasing
  • This product is illegal to drive on public roads in the USA
