2JZ-GTE Surge Tank - Pro Kit w/ 90mm Throttle Body & Fuel Rail
Part #: 13512303

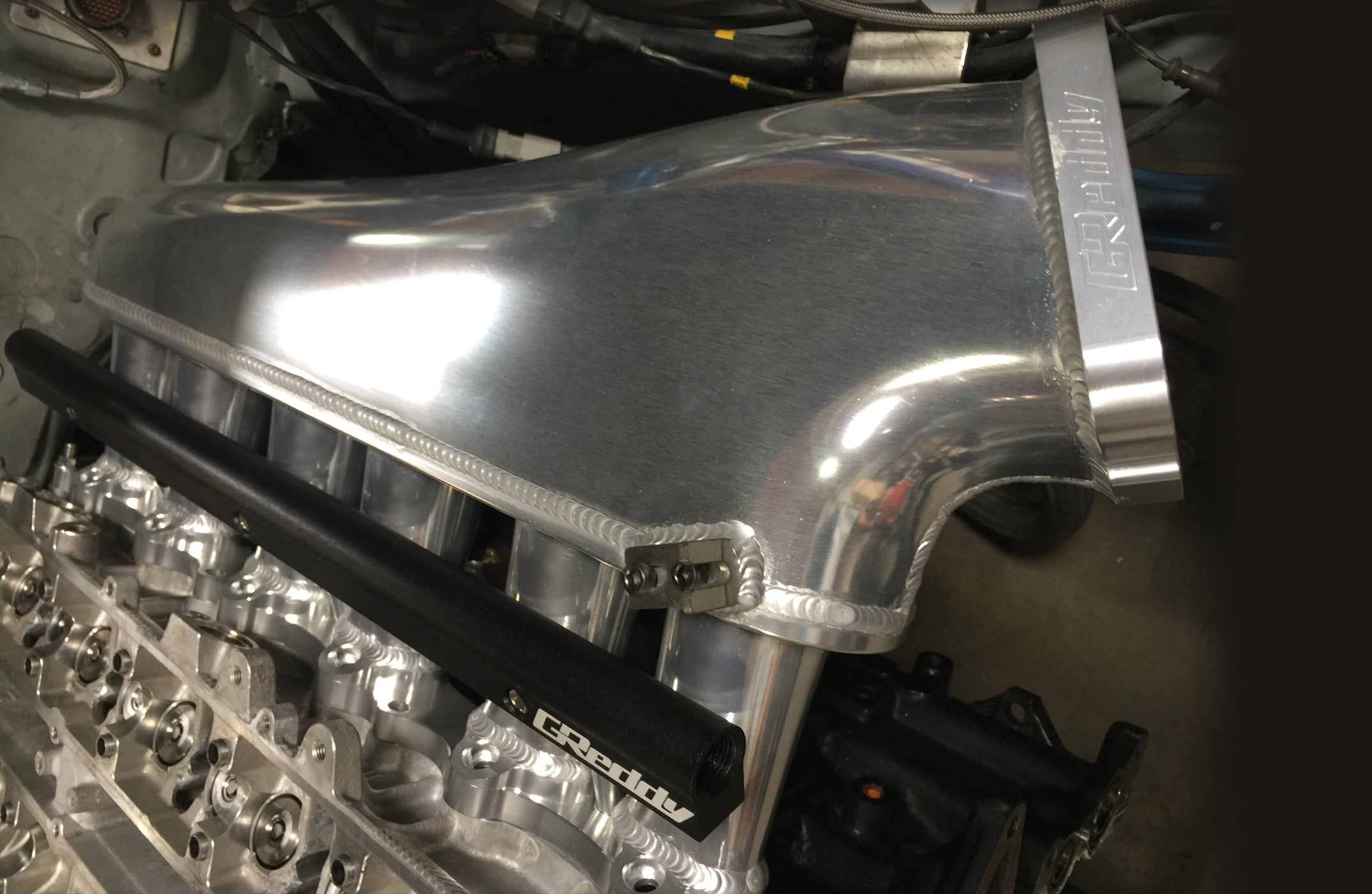

Designed specifically for custom applications with 2JZ engine transplants (and also great with a JZA80 Supra), the GReddy 2JZ Pro Surge Tank Kit offers the versatility to best match the throttle-body inlet angle and vacuum / air ports for your engine bay. This Pro kit includes a 4.0L tank with a large 90mm throttle body, a top-feed GReddy fuel rail and the necessary weld-on flanges.
Compatible Models
Chassis: JZA80 (Supra) and custom 2JZ engine transplants
Engine: 2JZ-GTE
Product Features
- Thick 3mm formed metal tank, welded to a precision machined, grooved base for additional rigidity in high-boost applications
- Six individual internal velocity stacks, tuned on each runner

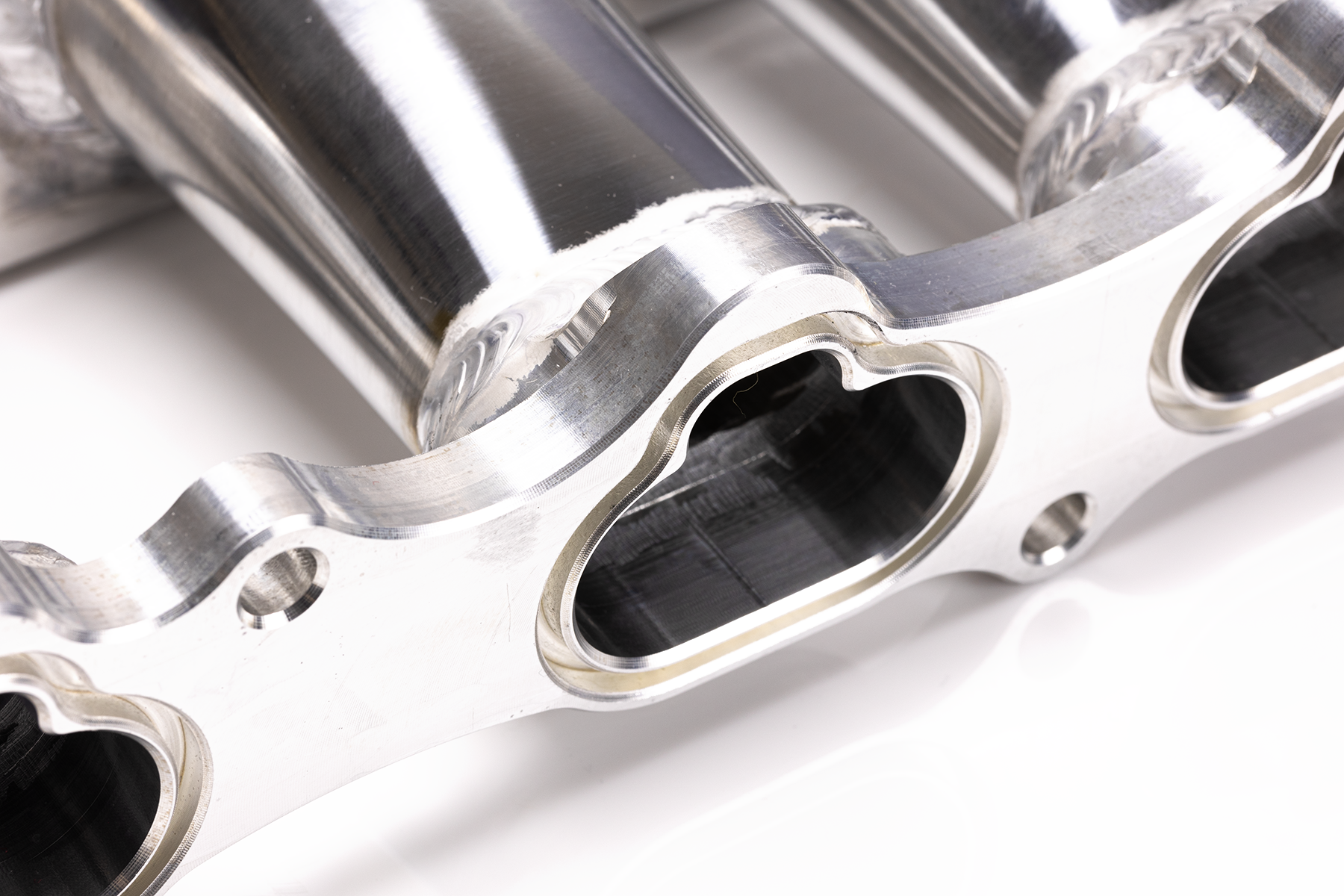

- Pre-welded tuned primary runners and CNC machined intake manifold flange with fuel injector ports

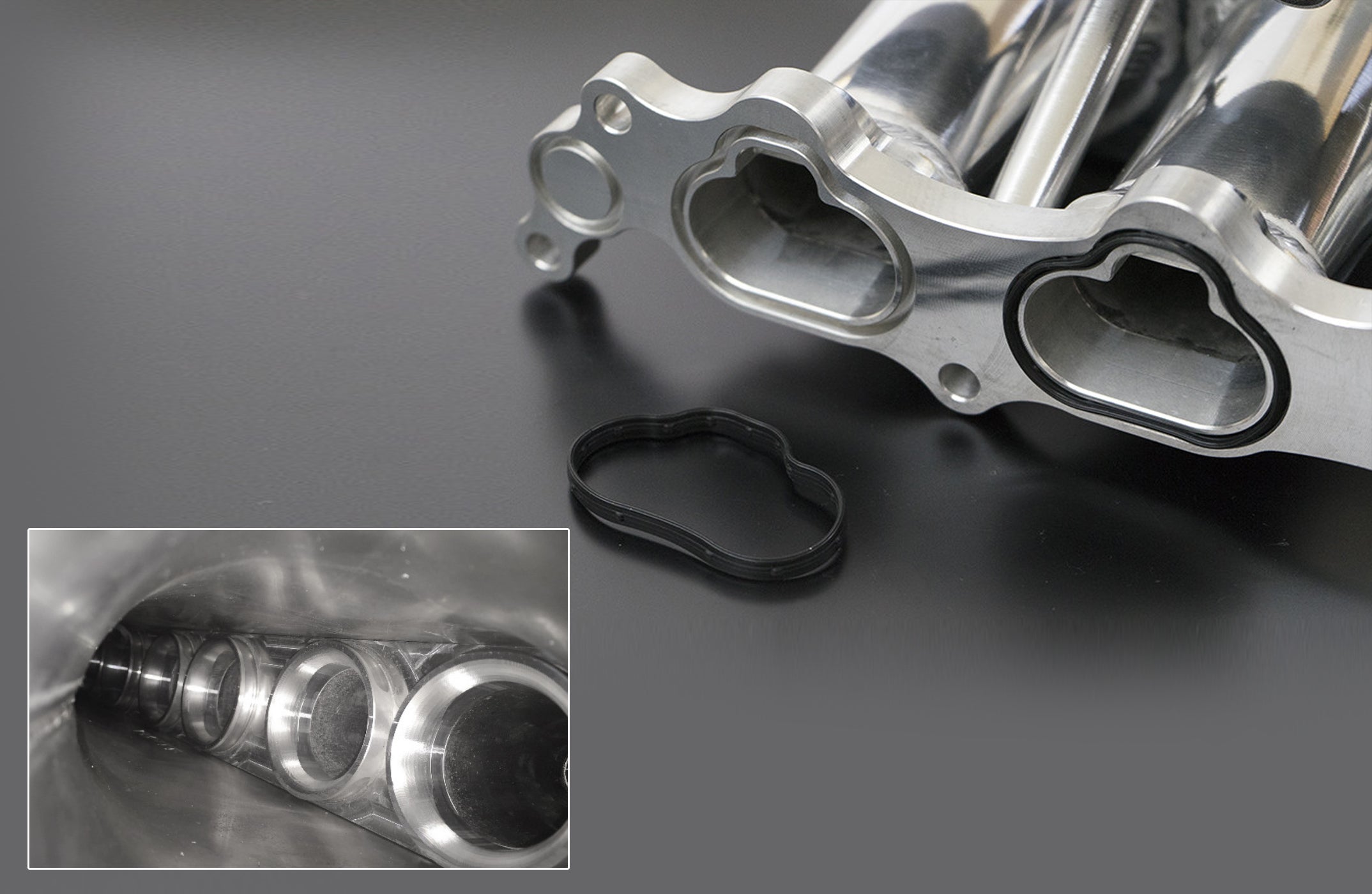

- Purpose-built, fuel-resistant ring-type gaskets that seal the manifold to the head

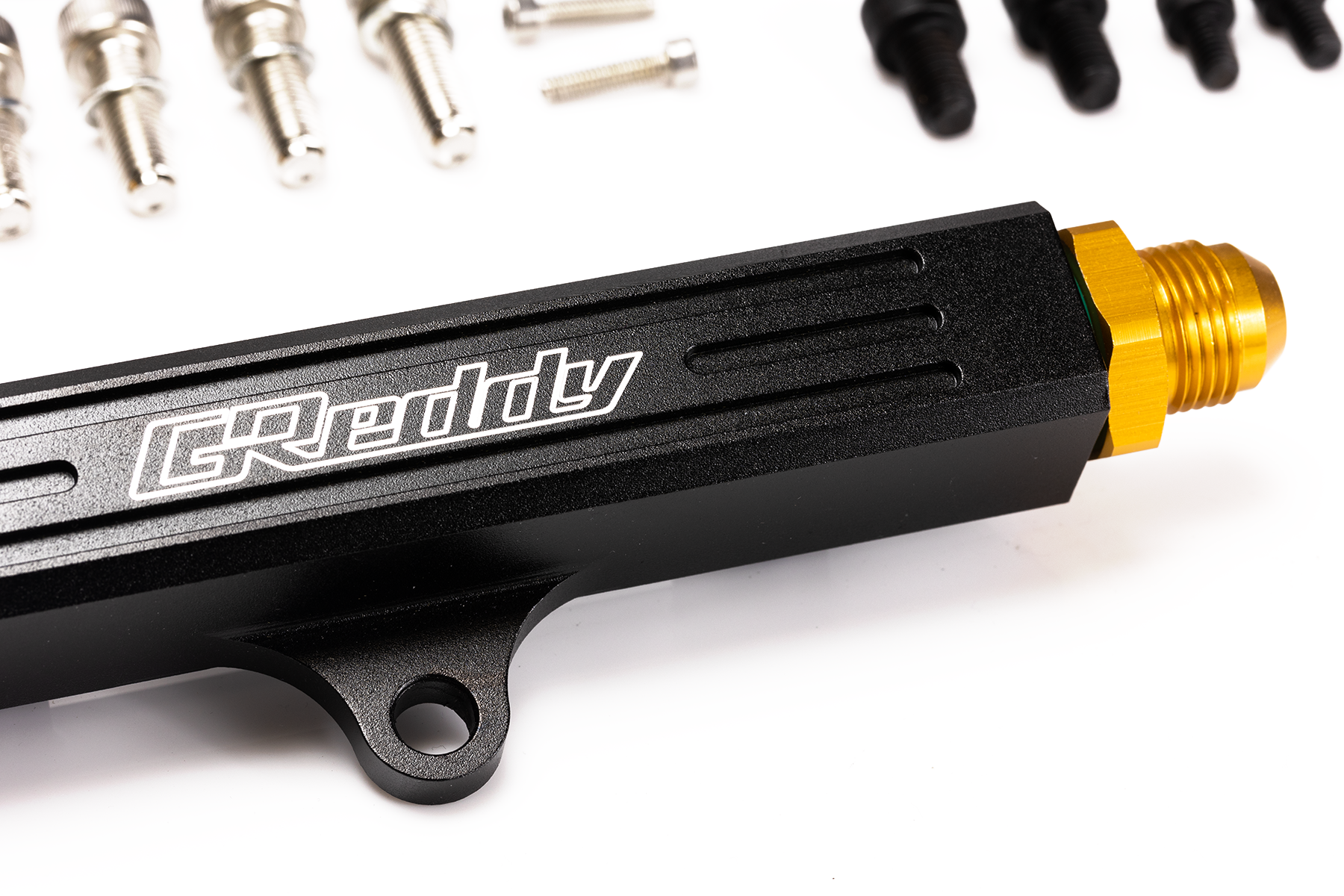

- Fuel delivery tube for 14mm top-feed injectors (compatible with Nissan R35 VR38DETT factory injectors)
- Compatible with the OEM factory idle control valve and throttle position sensor
Specification
- Collector tank capacity: 4.02L (200% of normal)
- Primary runner length: 13.0mm, OD 14.0mm, ID 13.0mm
- Throttle-body hose diameter: 100mm

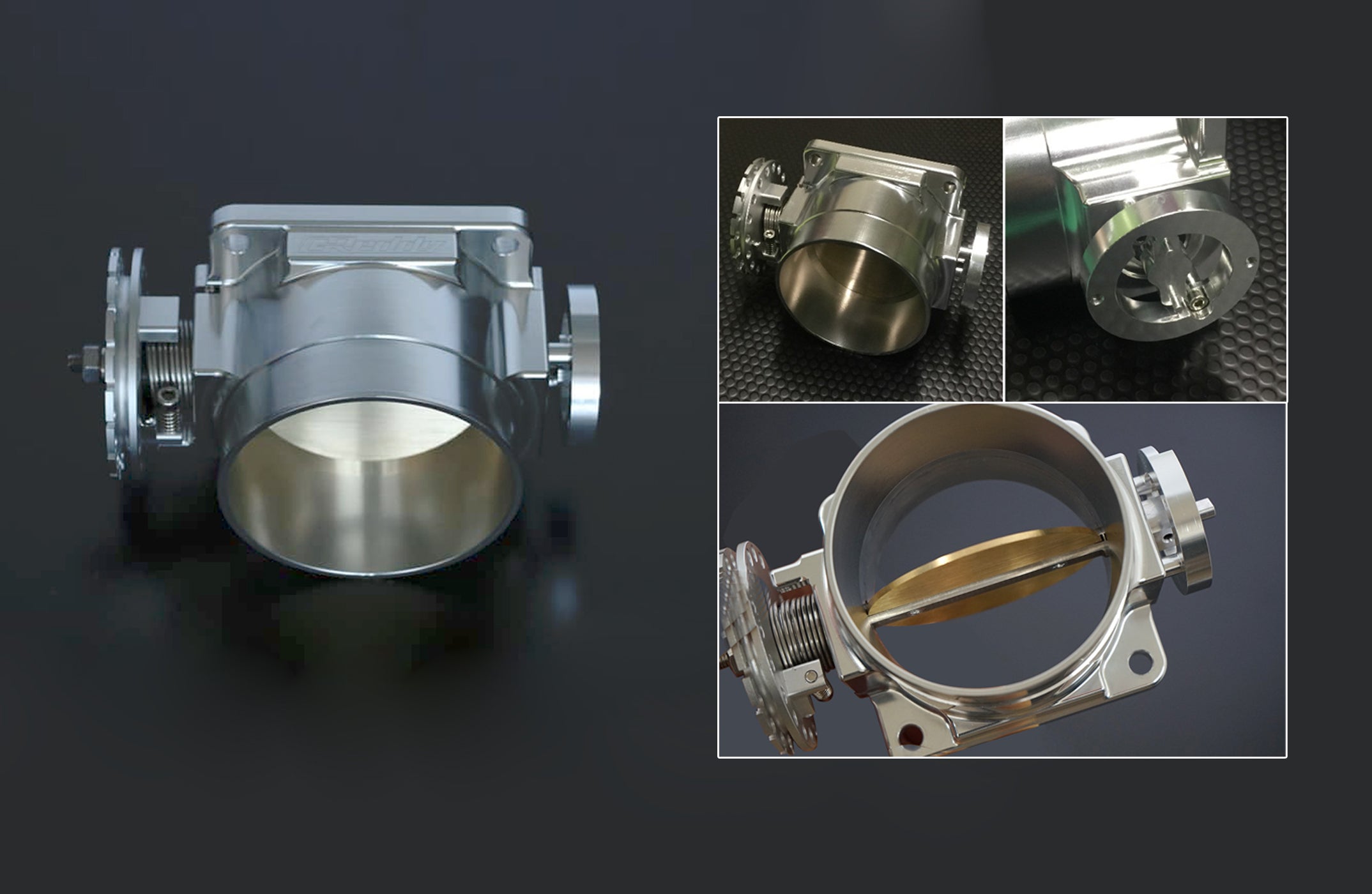

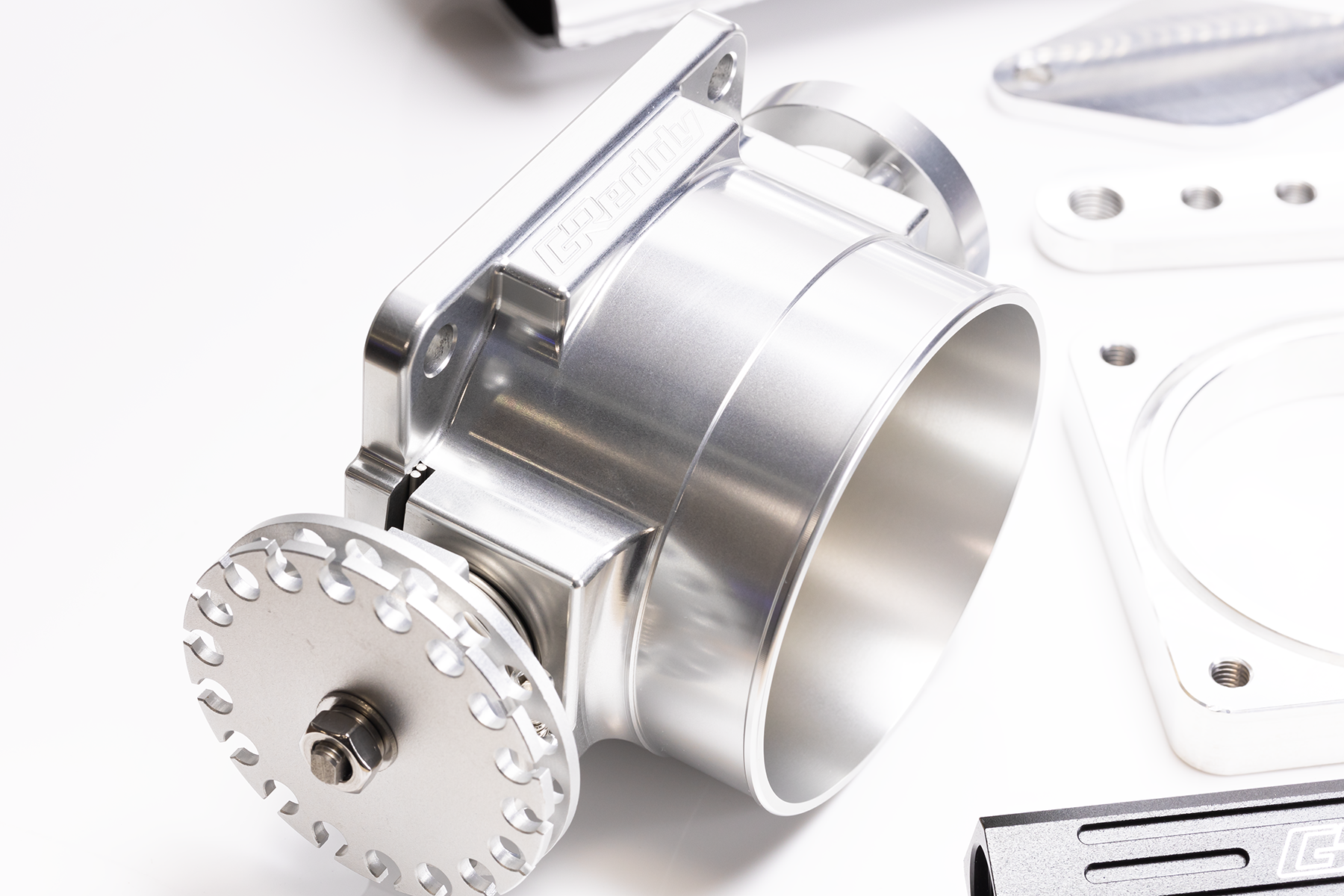

- Throttle body internal butterfly diameter: 90mm, with low-profile throttle shaft
- Surge tank, base plate and runners pre-welded

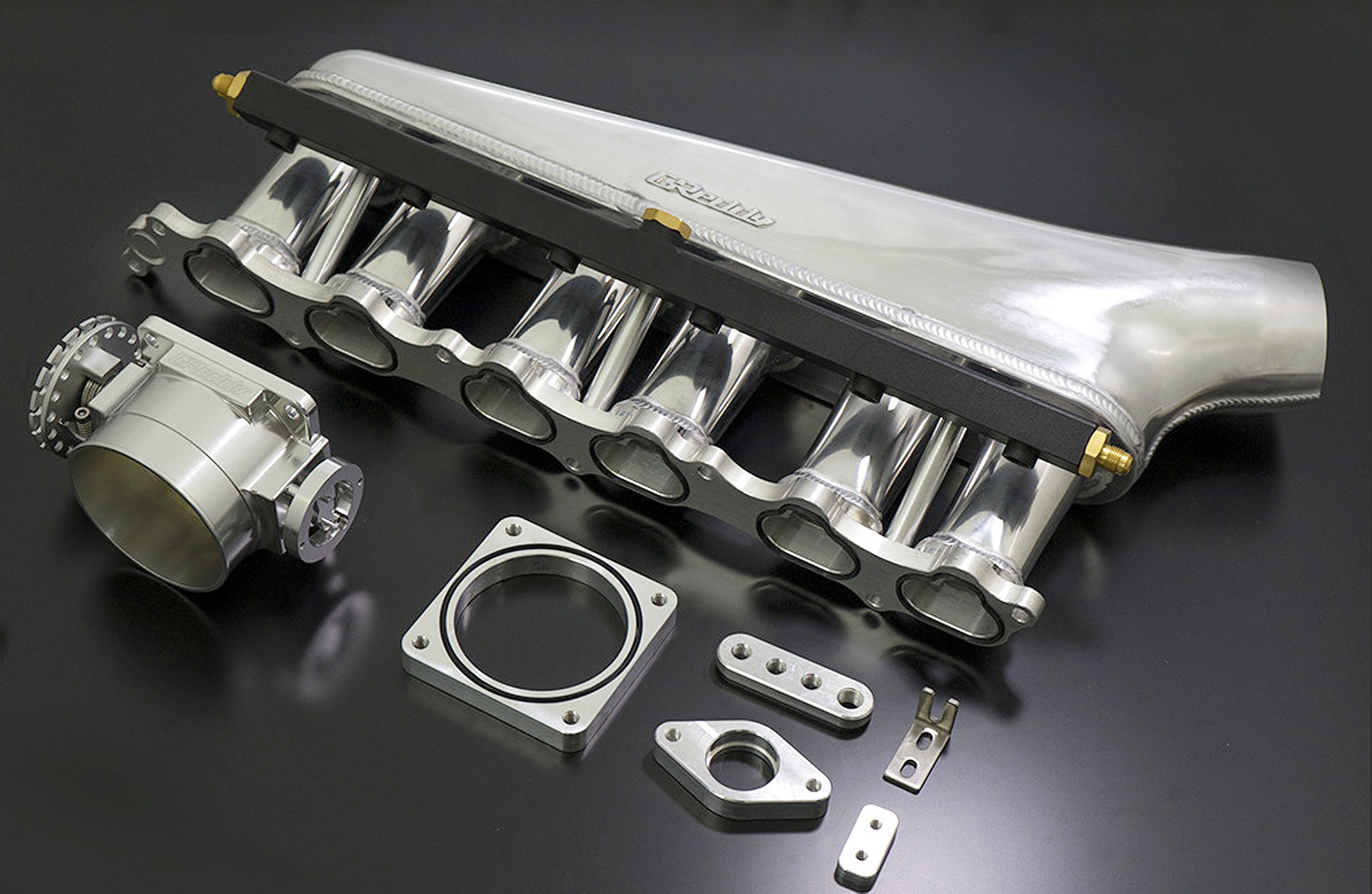

Kit Includes
- Surge tank

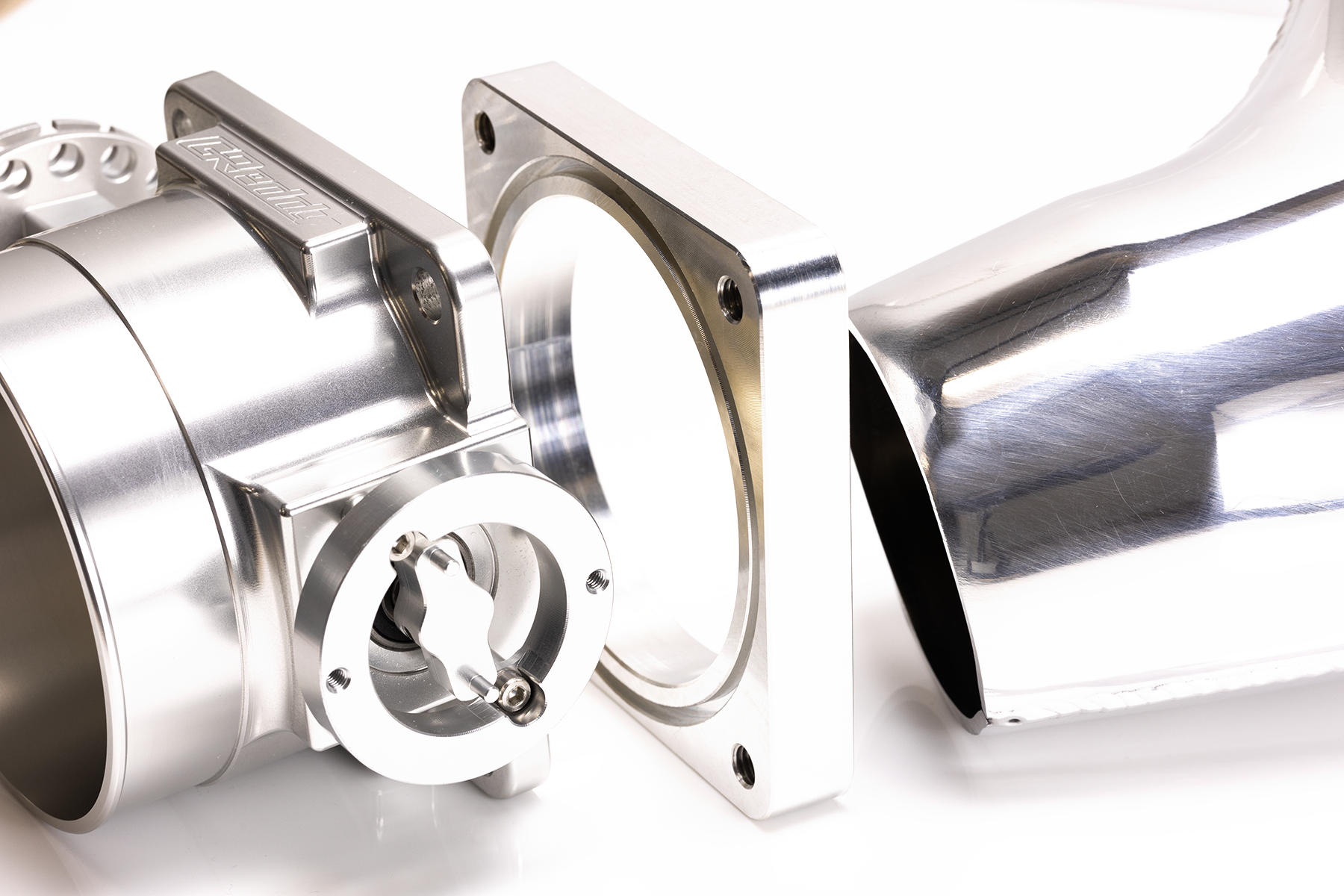

- Throttle body
- Throttle flange
- Fuel delivery tube and mounts
Optional Items
- 13512303-AN: Additional M20xP1.5 AN8 O-ring fitting
Notes
- Welding is required to attach the throttle body flange, throttle cable mount and air-port flanges
- For competition (race) use only. Check the legality of aftermarket products with your local state, county and city authorities before purchasing
- This product is illegal to drive on public roads in the USA
