GReddy Wastegate Type C15 Hi-Flow 1.5 kg/cm2

Sale price$1,280.00

Part #: 11501560

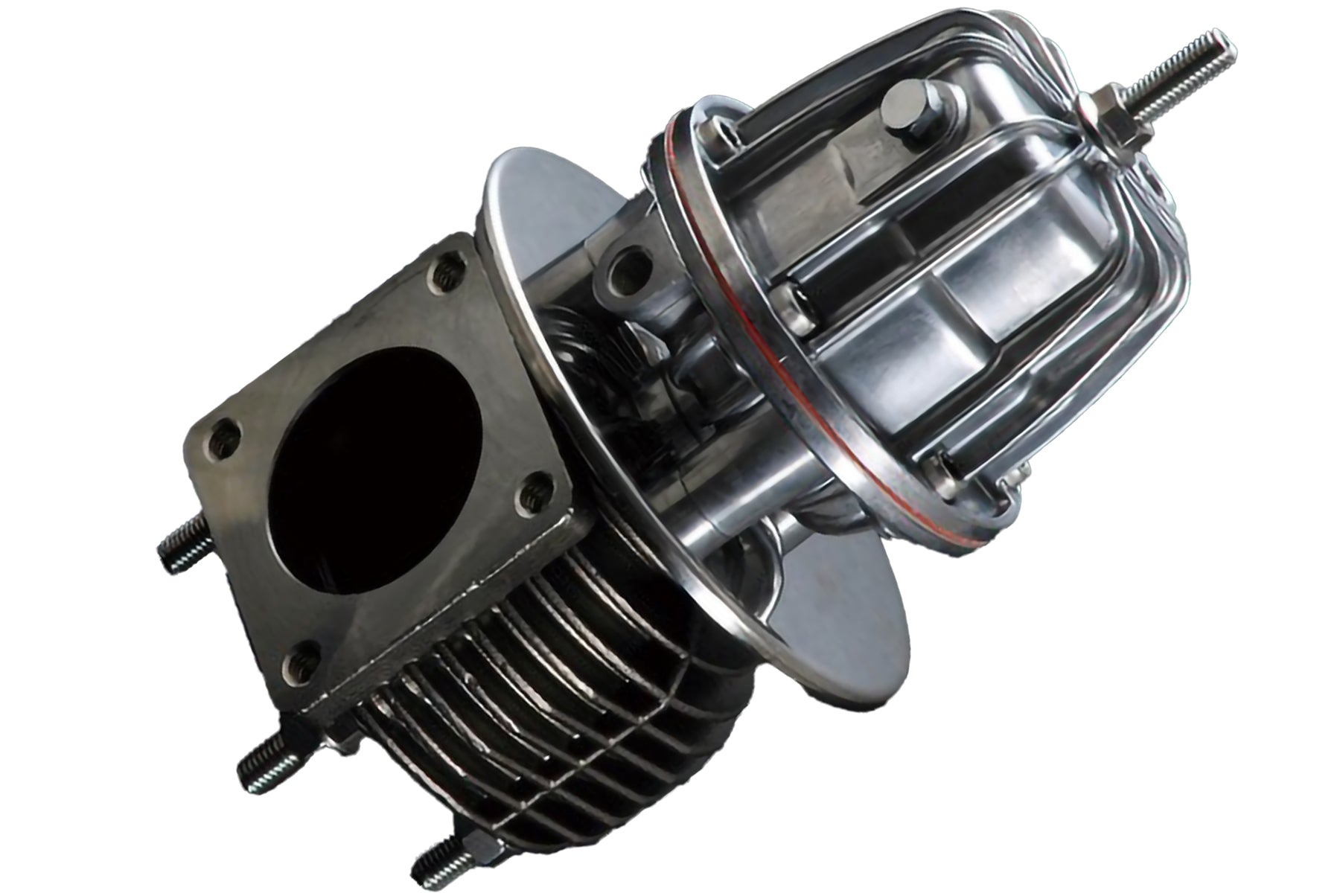

GReddy wastegate valve, 60mm Type C 15 High-Flow (1.5+ kg/cm²) with heat shield.

Product Features

  • A wastegate controls boost pressure by bypassing exhaust gas from the exhaust manifold before it passes through the turbocharger, suppressing the turbocharger's work. It is required when using a turbocharger without an actuator valve
  • When the turbine capacity is increased, an actuator does not have enough capacity to release the increased exhaust gas pressure
  • The GReddy wastegate valve has a large capacity and excellent durability, and provides stable boost pressure control

Specification

  • Valve diameter: 60Φ
  • Type: C 15 High-Flow
  • Boost pressure range: 1.5+ kg/cm²
  • Stainless steel housing with heat insulator

Notes

  • Replacement part

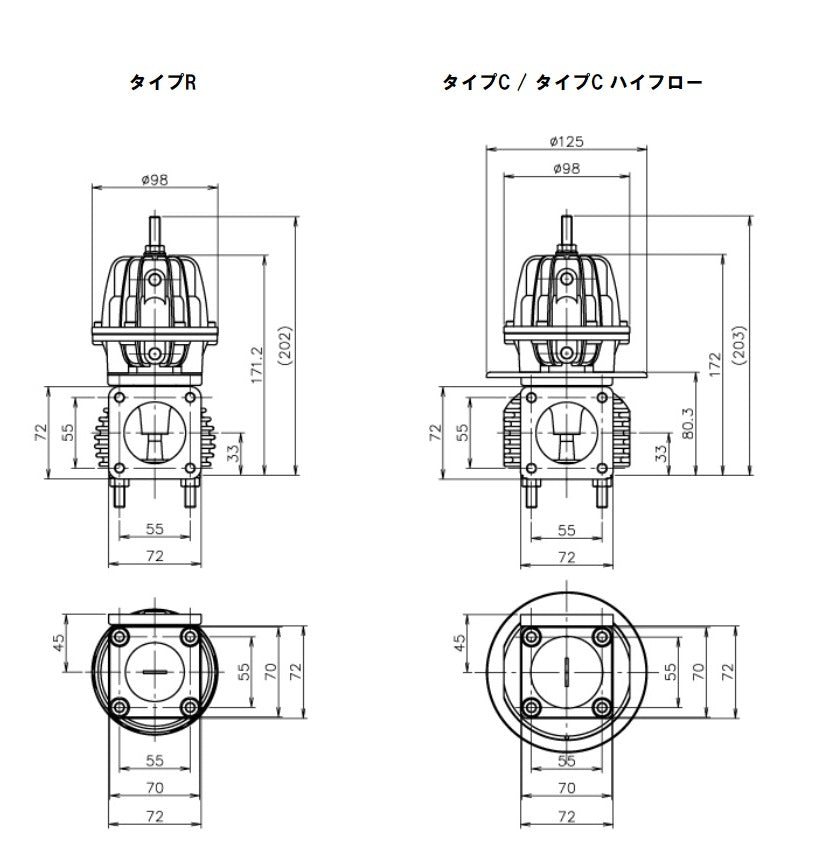

  • Lineup: Type R (50Φ valve), Type C (50Φ valve, stainless steel housing with heat insulator) and Type C High Flow (60Φ valve). Select by primary exhaust pressure and target boost pressure
  • A reinforced spring is necessary when changing the boost pressure to a higher setting
