GReddy Intercooler T-29F BNR33 Upgrade Turbo Kit
Part #: 12020217
GReddy Type-29F intercooler kit for the Nissan Skyline GT-R (BCNR33), for use with the GReddy upgraded turbo kit. Genuine replacement type with a 100mm intercooler outlet.

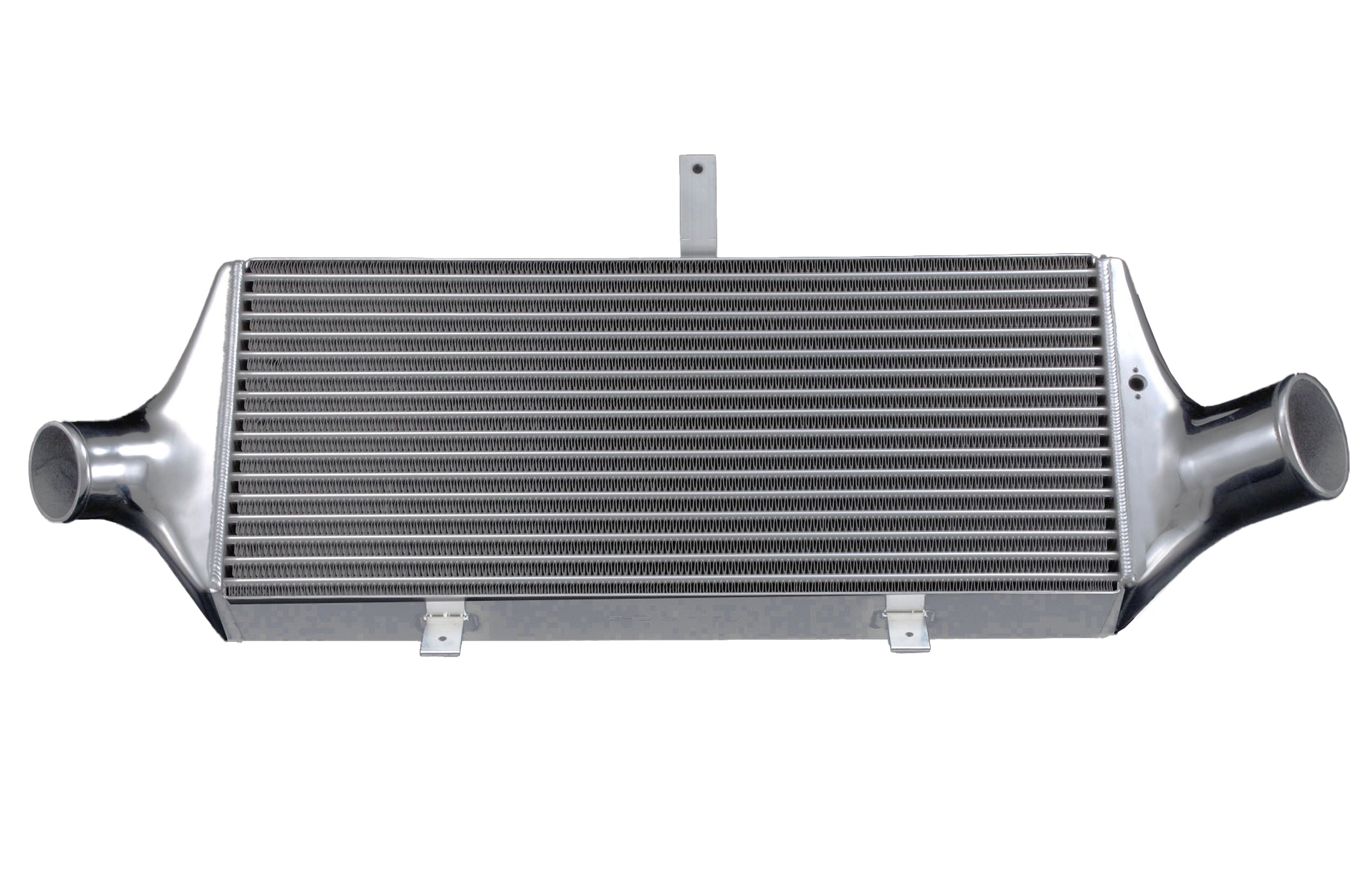

An upgraded large Type-29 (L710 x H302 x W100mm) intercooler core with cast GReddy end tanks, especially designed for the RB26DETT of the BCNR33 Skyline GT-R. 80mm inlet and 100mm outlet, for vehicles equipped with the GReddy intake manifold plenum.
Product Features
- Emphasizes cooling efficiency, maximizes charging efficiency, and supports high power and high boost
- The SPEC-R HG has the side tank and aluminum pipe buffed to a mirror finish, while the SPEC-R has a barrel finish. In addition, the core is CCP treated to improve corrosion resistance
- The inner fin uses an offset inner fin. The SPEC-R, which aims for high power and high boost, uses an "offset inner fin"
- Optimized pressure loss and cooling effect to support high-level high boost tuning
Compatible Models
Chassis: BCNR33 (Skyline GT-R)
Engine: RB26DETT
Year: 1995.01-1998.12
Specification

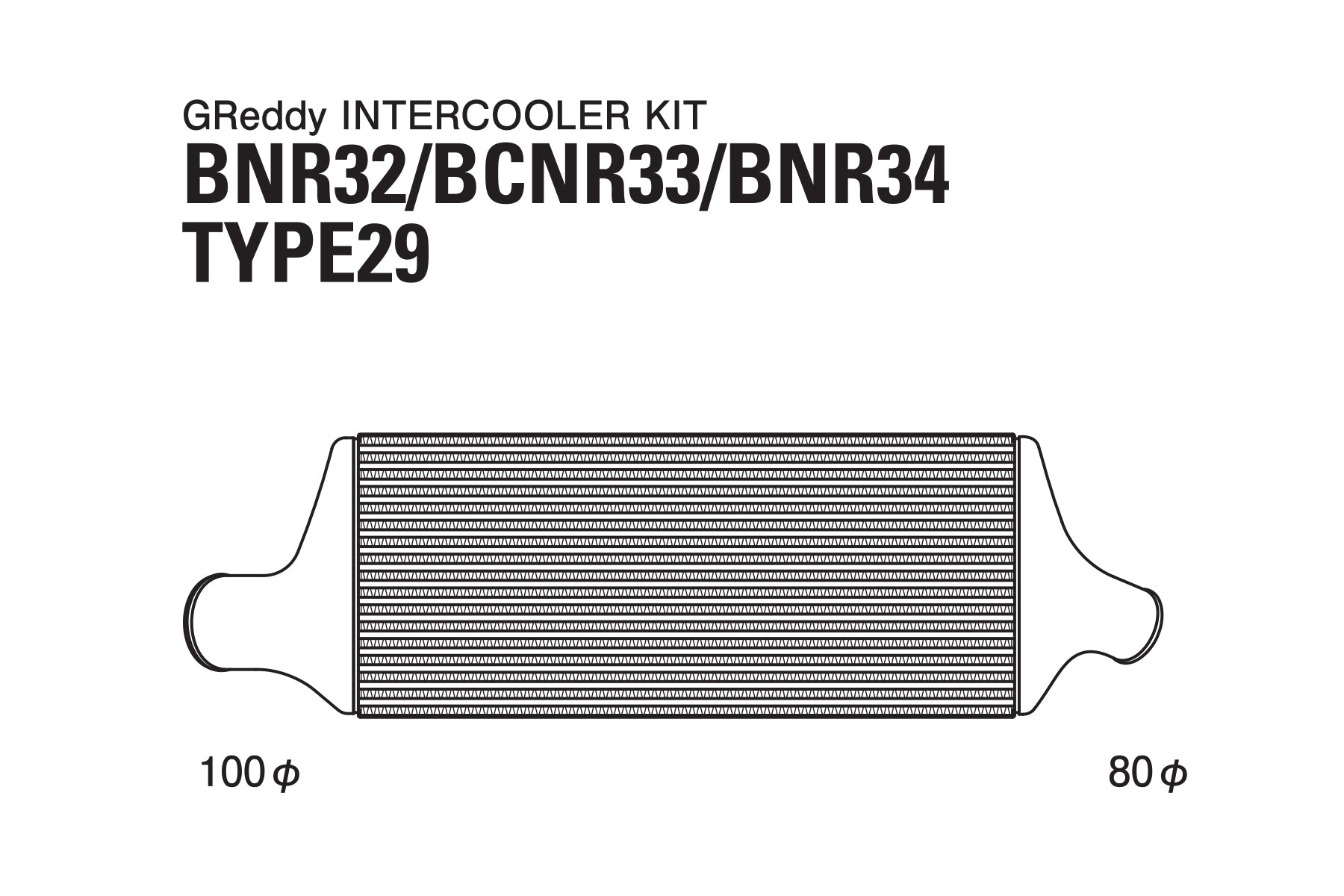

- Core: Type-29F, H302 x L710 x W100mm
- Mount position: genuine replacement
- Intercooler outlet diameter: 100mm
About GReddy Intercooler Kits
The addition of an efficient, light-weight tube and fin GReddy intercooler is one of the best ways to safely increase horsepower in a turbocharged engine. By reducing the engine's inlet temperatures, a denser air charge will enter the engine; this can make more horsepower at the same boost level and even more power at higher boost levels. Even if there is a factory-installed intercooler, generally these stock units are not ideal even for factory boost levels. They are usually mounted in awkward locations and become very susceptible to heat saturation. They are not ideal for increased boost levels.
Notes
- Compatible with GReddy turbine kit
- For manual transmission only
- Oil cooler kit can be installed at the same time
- Reinforcement processing required
- Bumper processing required
- For competition (race) use ONLY. Check legality of aftermarket products with your local state, county, city authorities before purchasing
- This product is illegal to be driven on public roads in the USA
