GReddy Intercooler Kit T-24F FD3S GReddy Comp

Sale price$1,450.00

Part #: 12040203

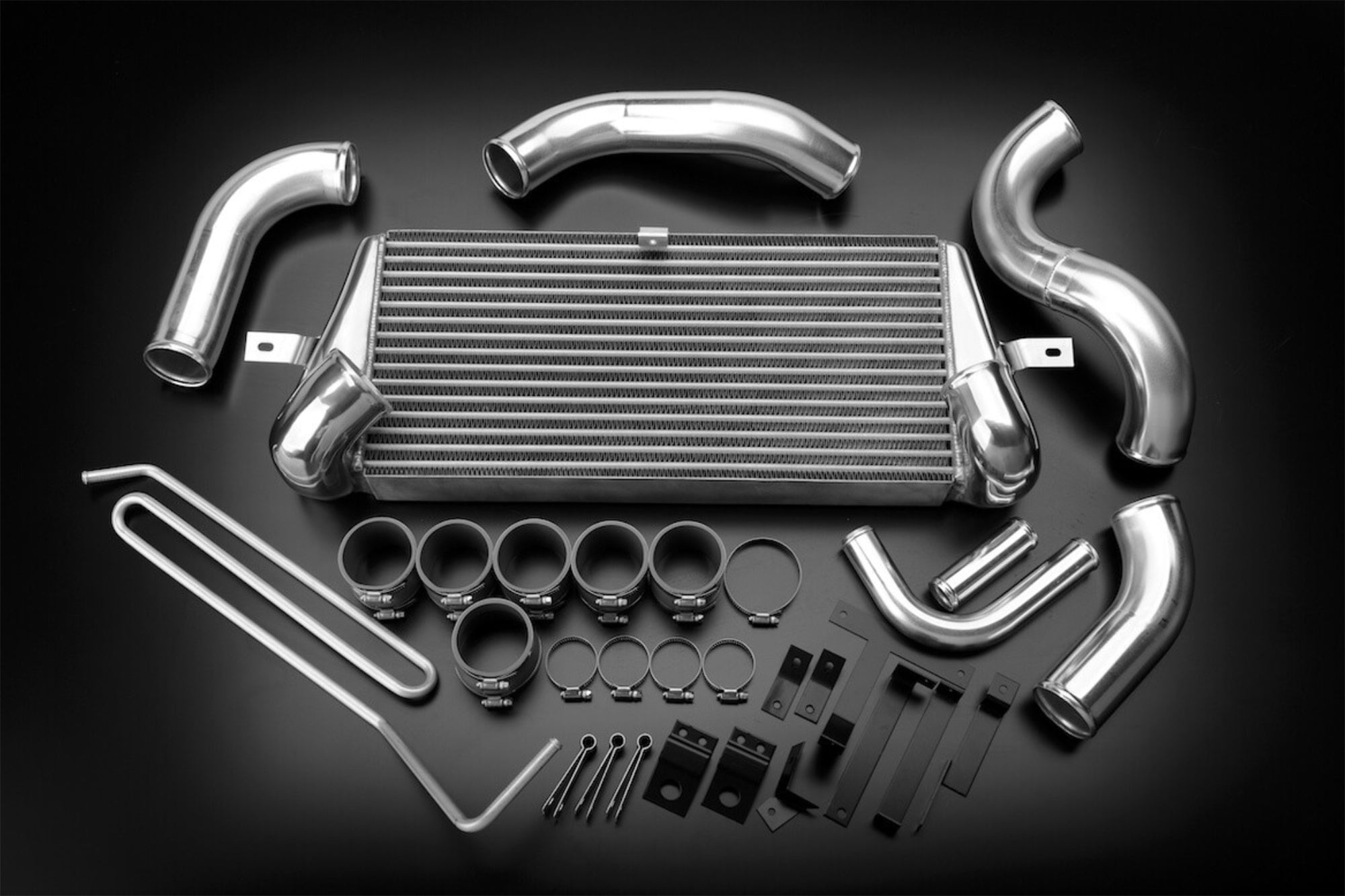

GReddy Type-24F intercooler kit for the Mazda RX-7 (FD3S), for the GReddy air funnel.

Recommended for sports turbine to full-tune class, this intercooler demonstrates high cooling efficiency.

Product Features

  • Emphasizes cooling efficiency, maximizes charging efficiency, and supports high power and high boost
  • The SPEC-R HG has the side tank and aluminum pipe buffed to a mirror finish, while the SPEC-R has a barrel finish. In addition, the core is CCP treated to improve corrosion resistance
  • The inner fin uses an offset inner fin. The SPEC-R, which aims for high power and high boost, uses an "offset inner fin"
  • Optimized pressure loss and cooling effect to support high-level high boost tuning

Compatible Models

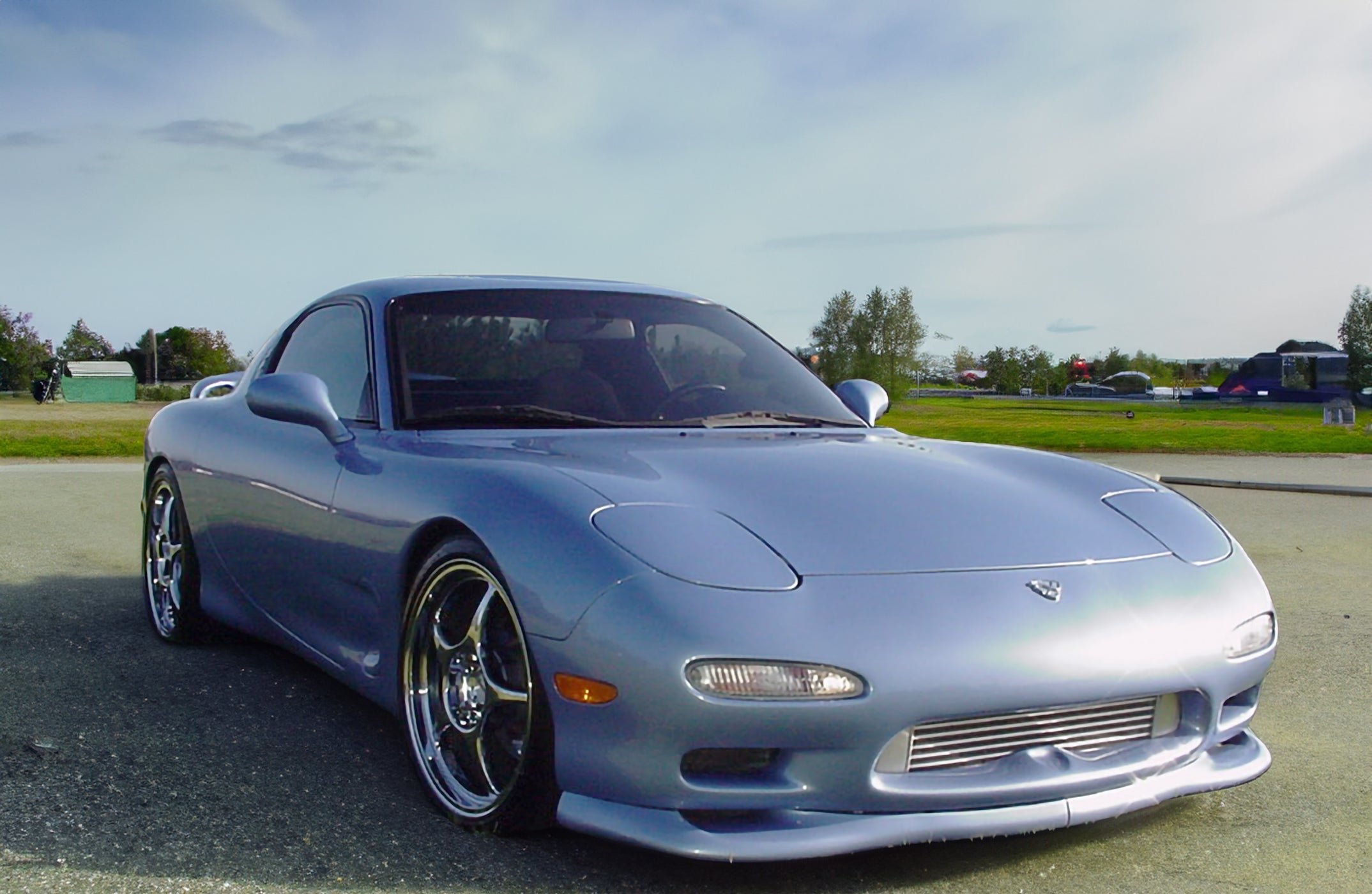

Chassis: FD3S (RX-7), for GReddy air funnel
Engine: 13B-REW
Year: 1991.12-2002.08

Specification

  • Core: Type-24F, H284 x L600 x W66mm
  • Mount position: in front of the radiator

About Type-F Cores

GReddy Type-F cores feature a high heat-dissipating "off-set, inner-fin" technology. They are recommended for medium to high boost levels on higher horsepower or upgraded turbo engines. The larger internal surface area provides a superior cooling efficiency for radiating excessive heat and minimizing heat soak. The GReddy Type-F intercooler is a light-weight tube and fin design.

Notes

  • For genuine turbine only
  • GReddy compression tube (12040911), AIRINX set (MZ-S001B) and a battery change (38B20R) are required
  • Not confirmed for automatic transmission
  • Cannot be installed at the same time as the GReddy TWR radiator
  • Oil cooler kit can be installed at the same time
  • Reinforcement processing required
  • Bumper processing required
