GREDDY V-MOUNT INTERCOOLER / RADIATOR KIT FD3S Ver. 2 STANDARD KIT - (12040703 / 12040720)
12040704 - V2 FD3S V-mounter Intercooler/Radiator Std.
(no Intakes / "hot-side" compression pipes included - ideal for single turbo upgrades)
*12040720 - V2 FD3S V-mounter Intercooler/Radiator kit w/o rad. breather tank
FD3S RX-7 Type19 V-mount Intercooler Kit(s)

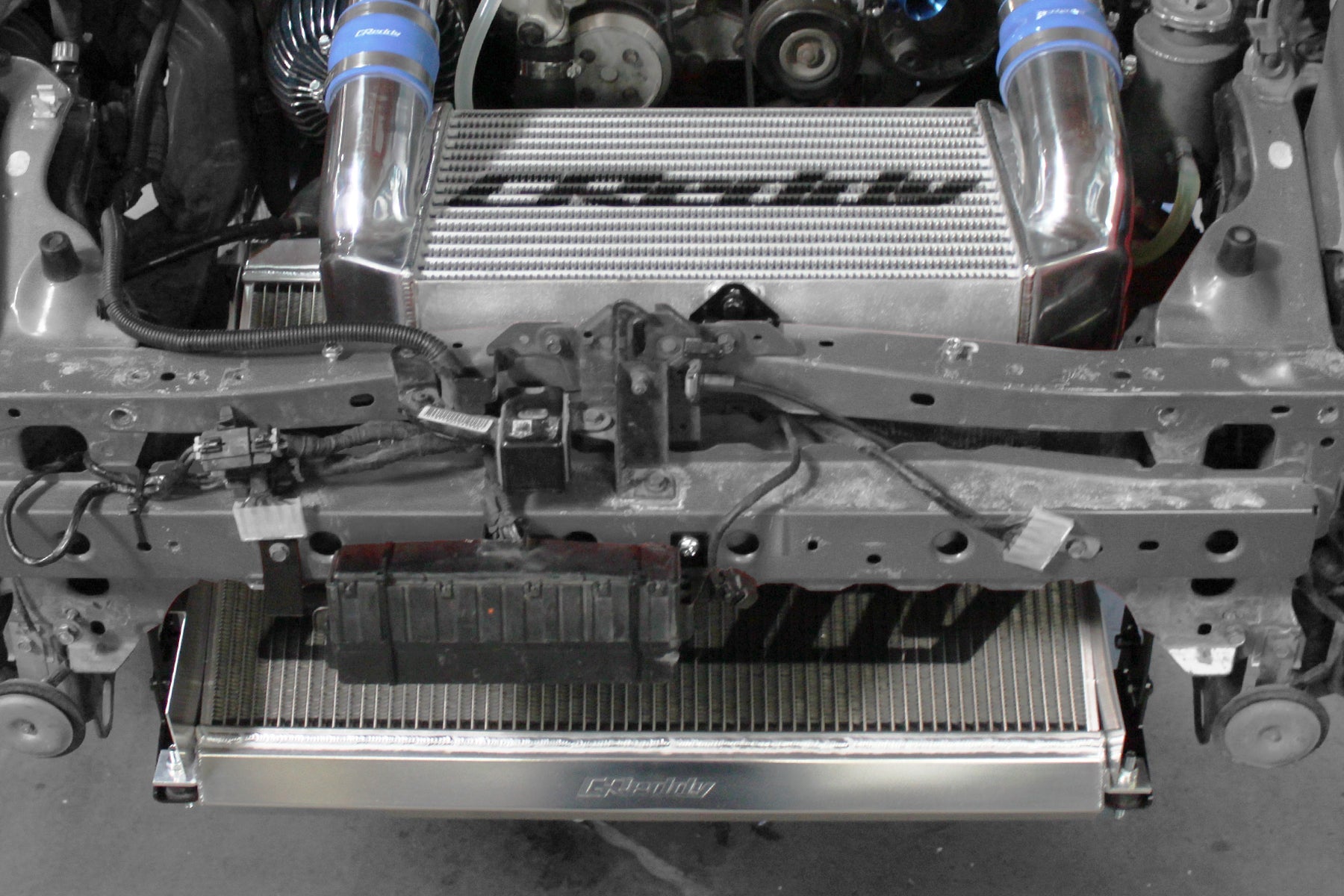

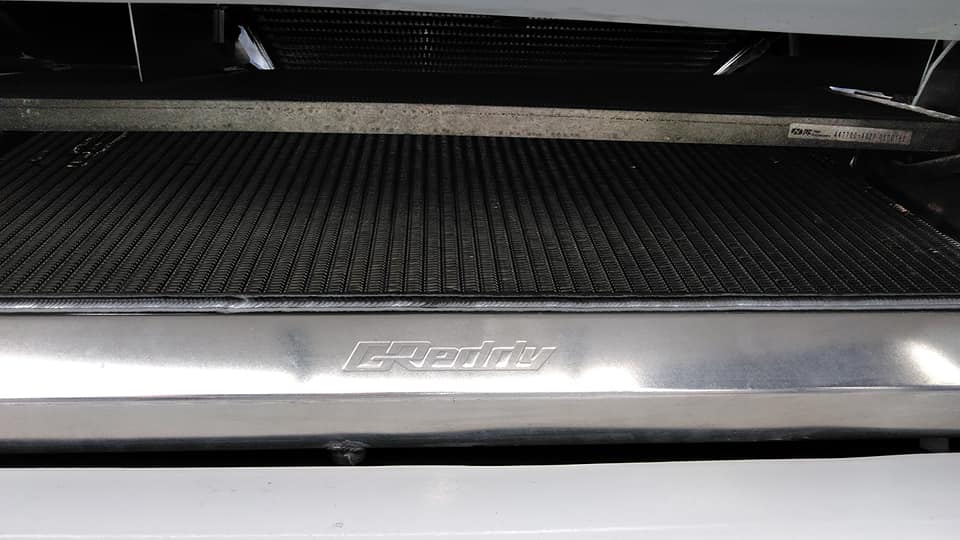

Initially designed for a drag racing set-up, the GReddy V-mounted Type-19 Intercooler / TWR Radiator kit for the Mazda (FD3S) RX-7, is also very popular with circuit track cars with aero hoods. It features our renown, lightweight, tube and inner-fin, 3row air to air core, that measures L400xH266xW100mm with high-flow cast end-tanks and our high-capacity TWR L631xH355xW48 aluminum radiator. The two coolers each have specially designed bracketry to mount the pair in an ideal “V” configuration. This favors engine cooling for the radiator, while still providing great flow and minimizing intercooler piping length for improved turbo response. The provided air diversion panels help direct air from the front bumper opening to the two heat exchangers for maximum airflow and cooling.

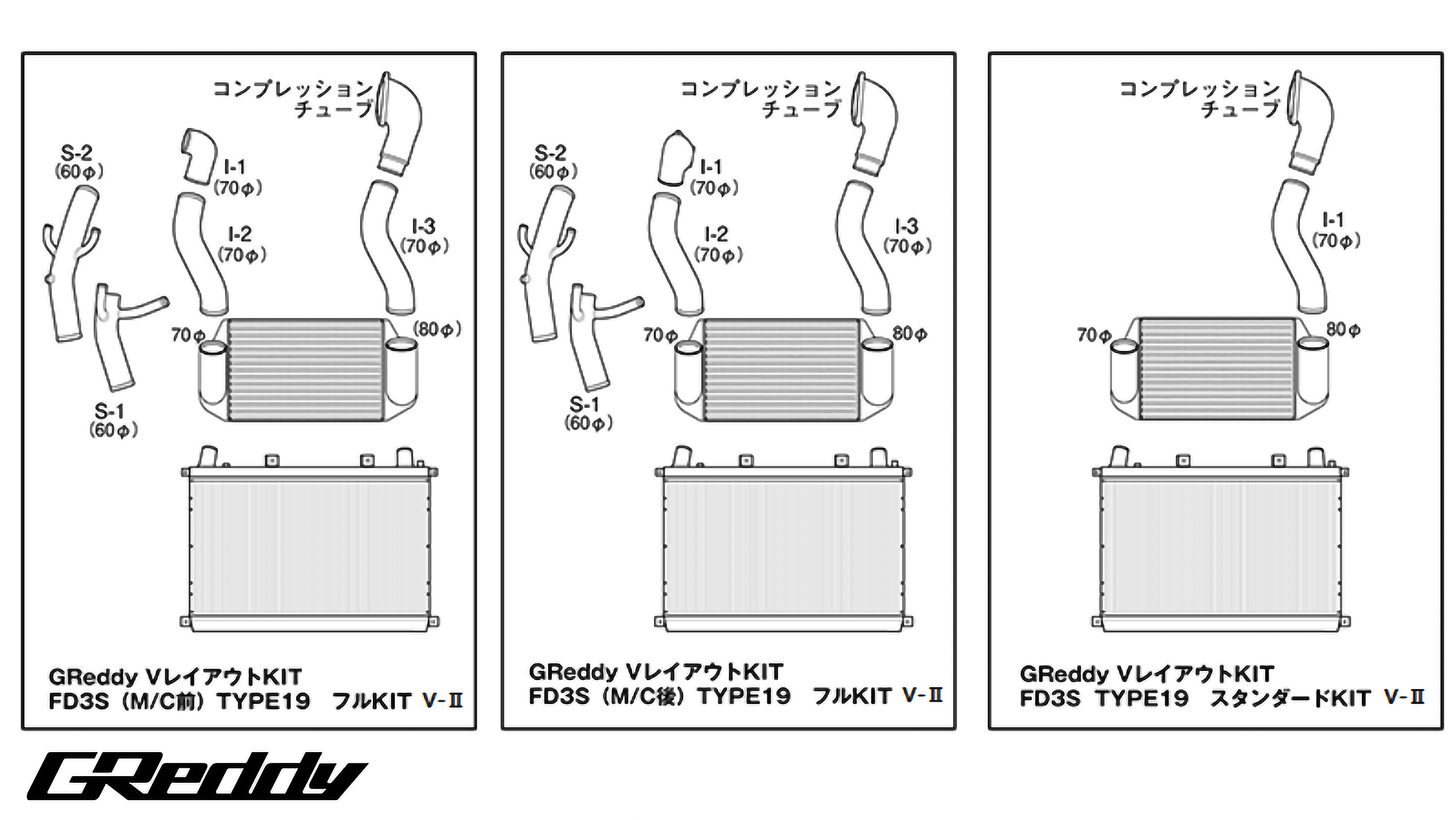

There are three main kit types for the newer V2 design with the newer Airinx S air filters, a more basic kit p/n 12040703 for vehicles with upgraded turbo(s.) This leaves the “hot-pipe” and air intake open for the user to build their own custom layout.
Product Features
Mounting angle
The radiator mount angle is set taking into consideration the ease with which air can escape when driving.

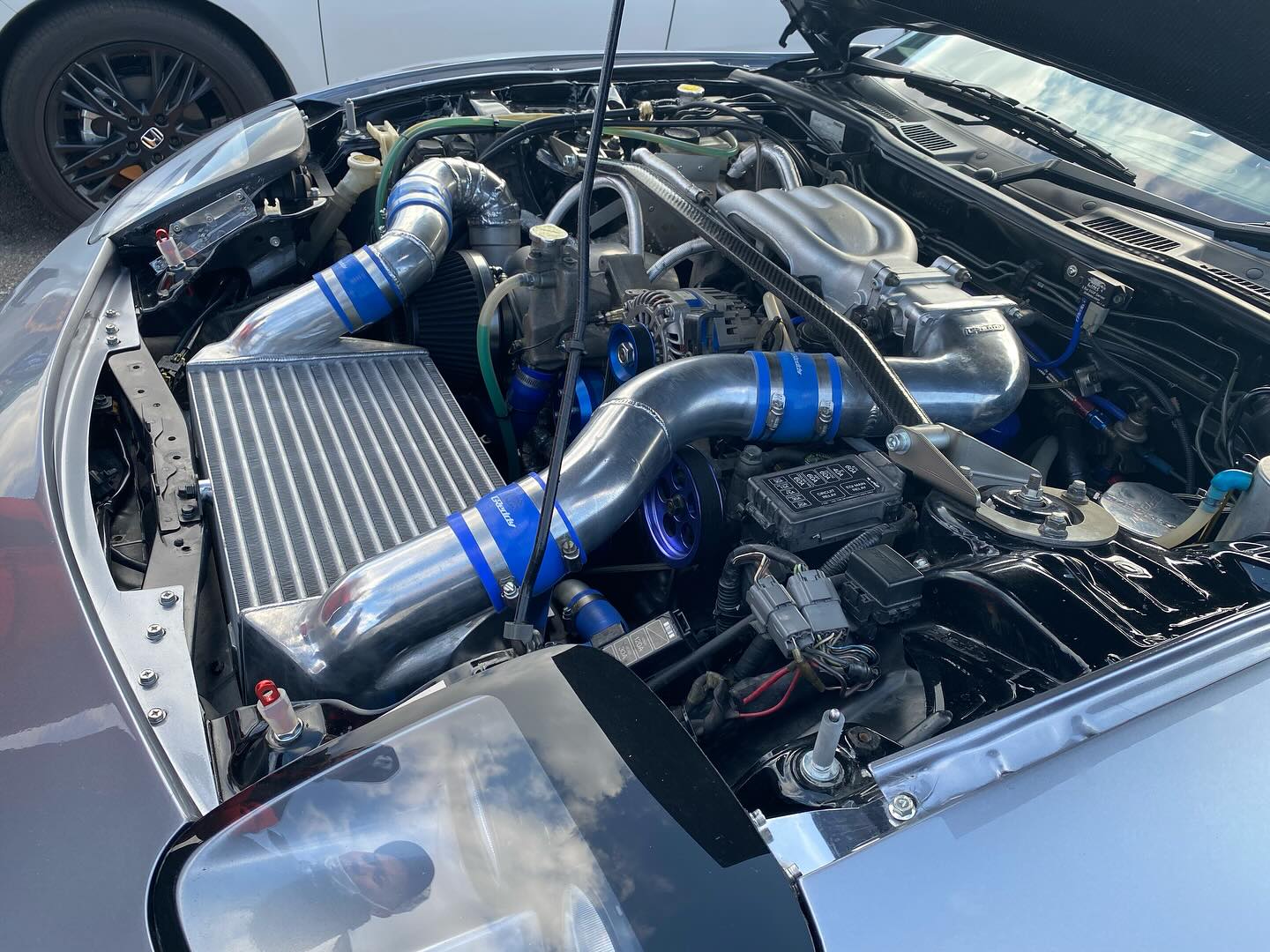

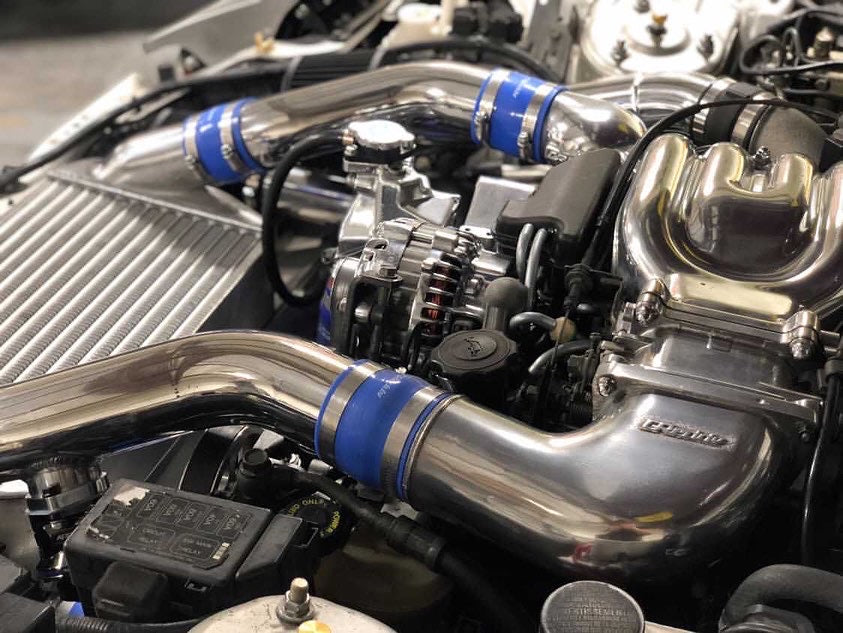

Intercooler piping layout
Piping layout considering aero bonnet installation.
The full kit for the latter half comes with a special elbow that takes into consideration the passage area.
Air diversion panels
Air guide plates are included for the radiator and intercooler. Improves cooling efficiency by preventing air from escaping through the bumper opening.
Fresh air introduction layout
The air cleaner is placed as far forward as possible so that it is less affected by engine heat. We have adopted AIRINX, which has both suction efficiency and dust collection ability.
