RS-TI UNIVERSAL ROUND MUFFLER 2.5"- 105MM TIP - (11002525)
GPP Universal RS-Ti Titanium Muffler and Tip sets create new lightweight options for creating your own custom full Ti or hybrid Ti/steel exhaust system. In addition to the Titanium RS Muffler canister and tip, each kit includes a stainless-steel muffler mounting-band (to weld on mounting hangers), pre-welded titanium inlet pipe and 2-bolt Ti flange, as well as a matching composite V-band flange and clamp (to adapt the kit to steel piping.) The kits are available in a 3.0” (76mm) and 2.5” (63.5mm) piping sizes. Our signature high quality, straight-through, universal RS racing sport muffler design offers exceptional flow with a clean, yet aggressive exhaust note. And with the RS Tri-bolt removable Tip, optional RS inner tip silencers and tips can be purchased separately for even more customization.
With the included pre-welded Titanium V-band flange and additional stainless-steel flange and stainless steel muffler canister mounting bracket, you do not have to be able to weld Titanium to have a custom Titanium muffler, exhaust system. Just weld onto the provided flange and canister mounting bracket.
No Titanium Welding Necessary!
2.5" Dia. Universal Titanium Muffler and Tip set
* Can be adapted to work with (Stainless-steel, Steel or Titanium) piping
Muffler Type: 140mm Round RS Titanium
Type: Straight-through
Inlet / Outlet : 63.5mm (2.5") V-band flange
Dia.: 140mm (5.5")
Length: 300mm (11.8")

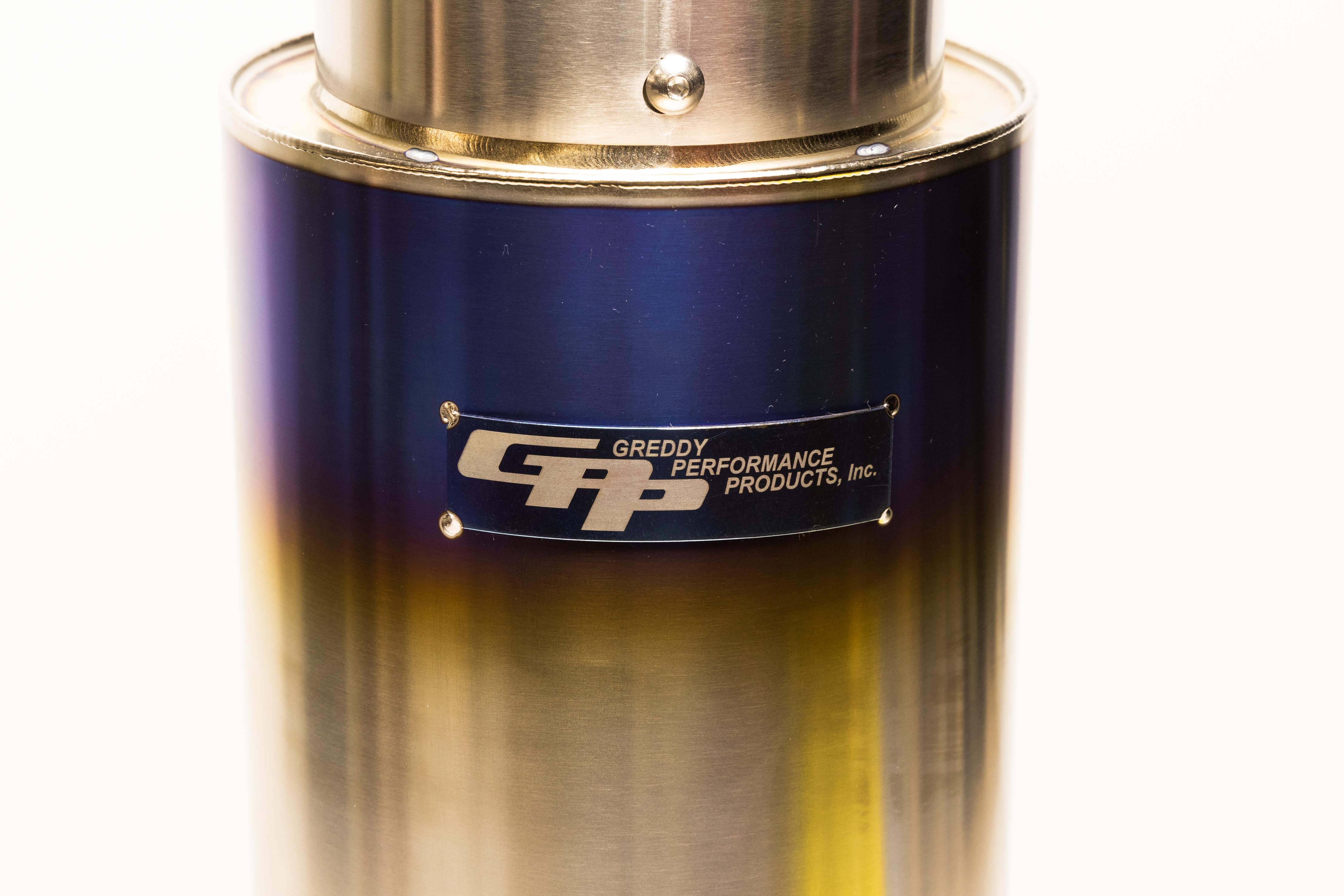

Surface: brunt-Titanium brushed finish, with GPP badge

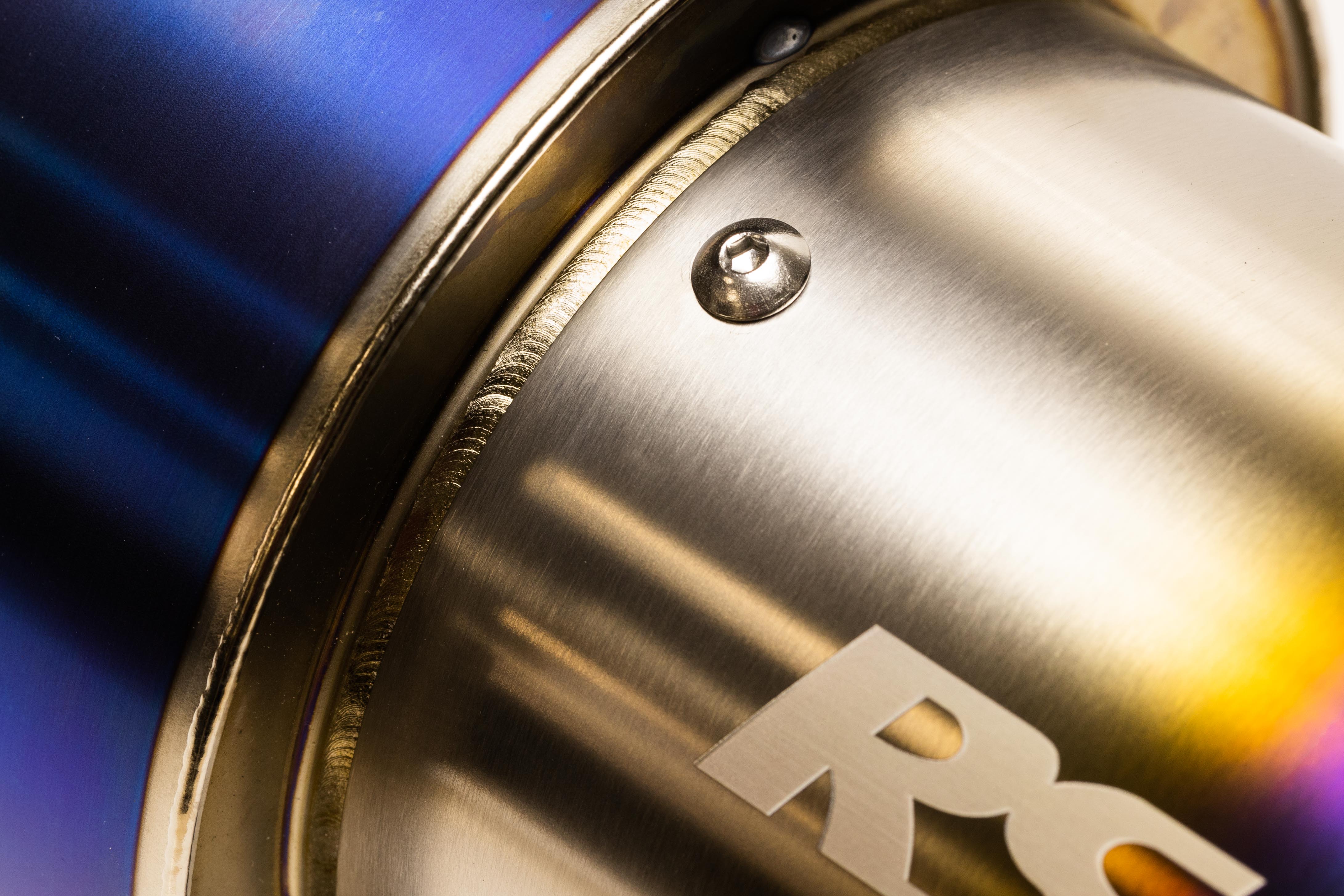

Tip Type: Removable Single-wall Titanium with RSTi Logo with Tri-bolt mounting
Dia.: 105mm (4.1")
Length: 120mm (4.7")
Surface: brunt-Titanium brushed finish, with laser-etched GPP logo
Piping Extension: L38mm (1.5")

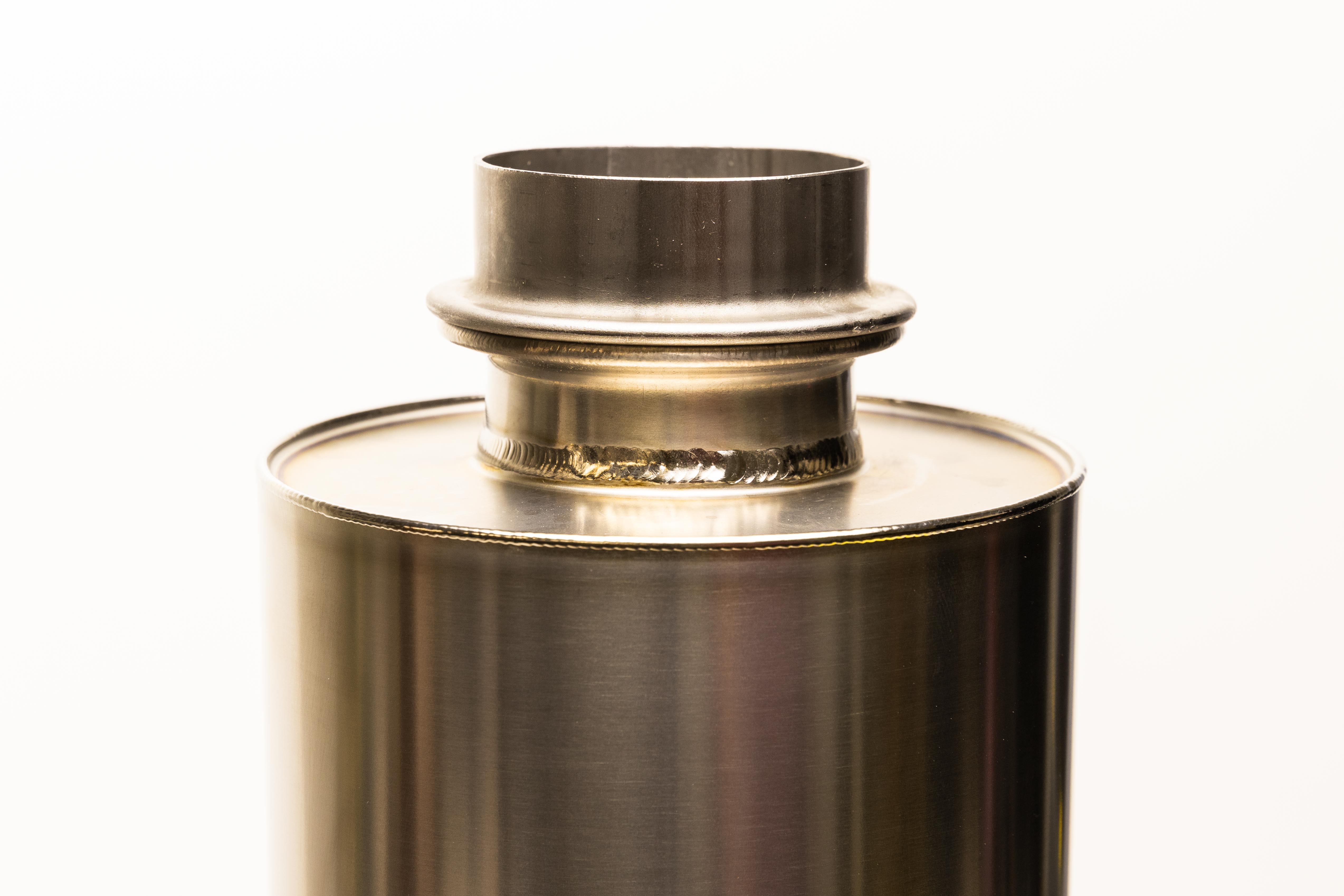

+ 2.5" piping at the back of the muffler, with a pre-welded 2.5" V-band Titanium flange
Additional Mounting Hardware included:
+ additional un-welded stainless-steel 2.5" V-band flange (to adapt to steel or stainless steel piping)

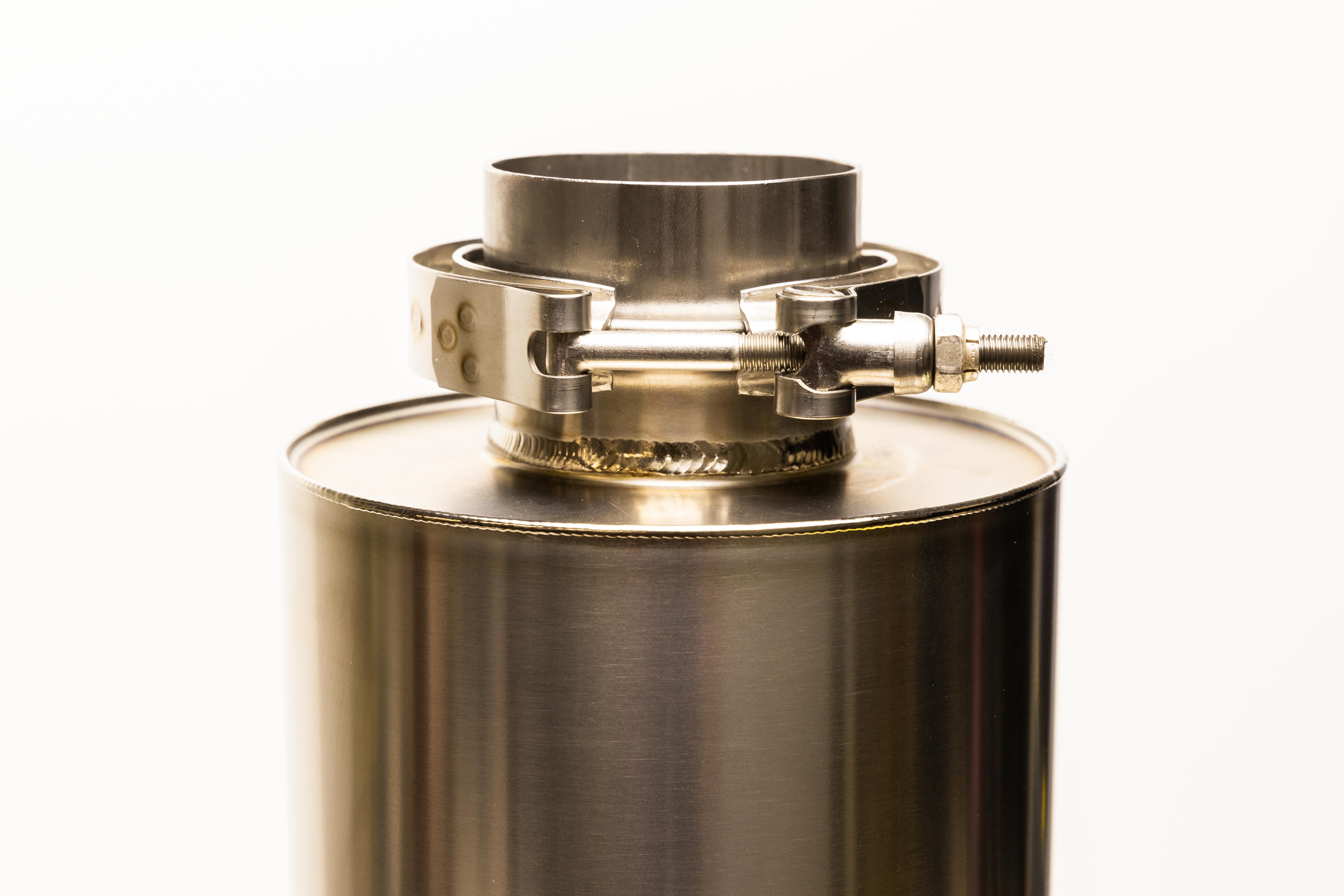

+ one matching stainless steel V-band clamp
+ a stainless-steel muffler canister mounting band. (to weld on steel or stainless steel muffler mounting hangers)
Notes:
requires welding (and cutting) for mounting and attaching piping
** Compatible with optional Revolution RS Tips and Silencers
