OIL COOLER KIT NS1310G/STD AP1 - (12054607)

Sale price$730.00

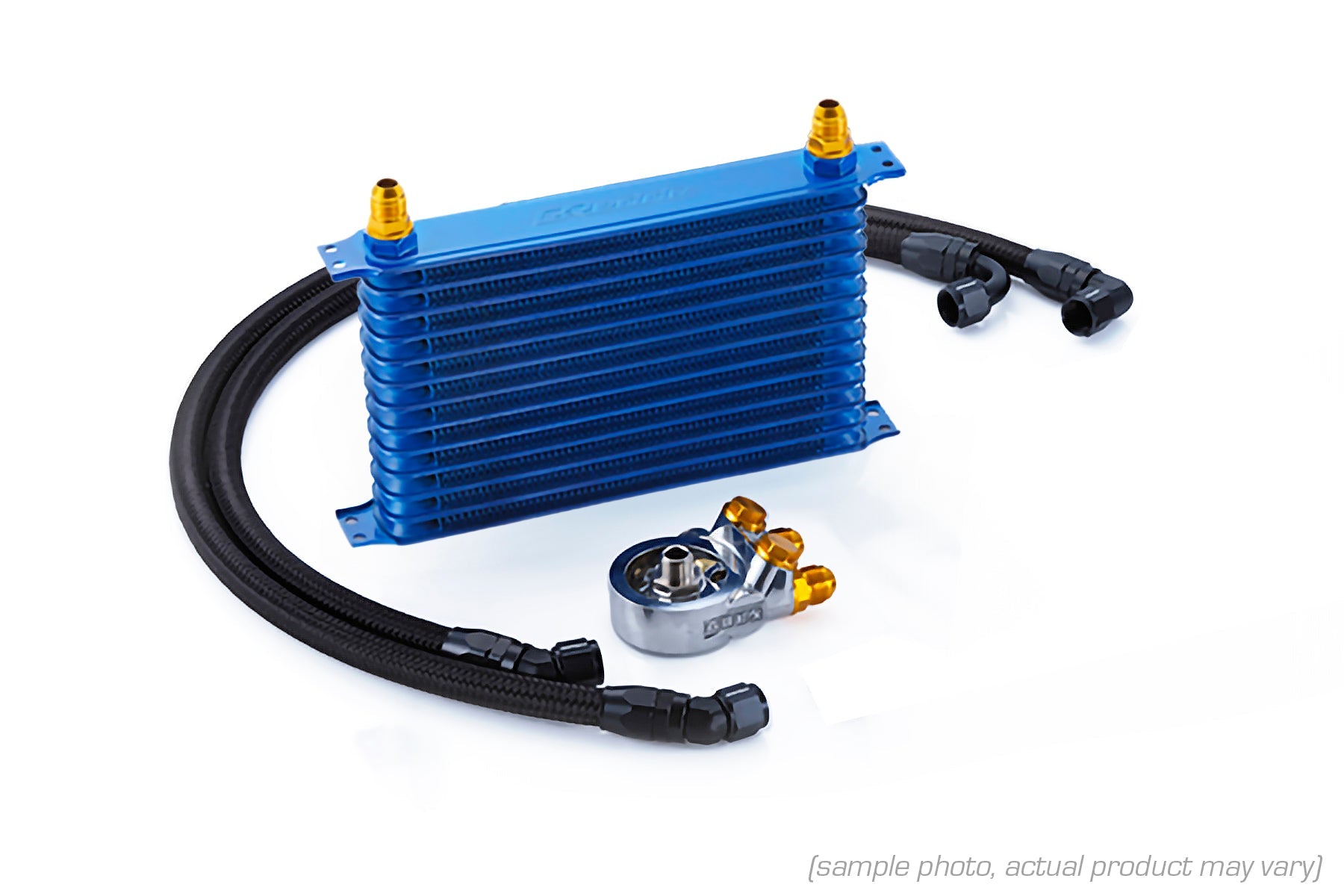

Oil cooler kit STD 13row for AP1

Product Features

  • This is an ideal oil cooler that uses a large capacity core with offset fins inside the core tube to increase heat dissipation and reduce pressure loss.
  • A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

  • Core type: NS1310G
  • Thermostat: Built-in block
  • Core installation position: In front of radiator
  • Center bolt size: M20 x P1.5

Compatible models: HONDA S2000

  • Vehicle model: AP1
  • E/G model: F20C
  • Year: 99.04~03.09
  • CODE:12054607

Remarks

  • Cannot be installed on VGS (Variable Gear Steering) vehicles.
  • Engines with center bolt M20 x P1.5  require an oil filter with center bolt size 3/4-16 UNF (GReddy oil filters OX-01, OX-02, and OX-03 are compatible).
  • Undercover processing required.
