OIL COOLER KIT STD VA 13ROW JDM SPEC - (12064609)
GReddy Oil Cooler KIT STD 13 Stage VA
Product Features
■ Ideal oil cooler that has succeeded in increasing heat dissipation and reducing pressure loss
■ Developed a dedicated pipe for removal in consideration of the safety of handling around the exhaust manifold
oil line pipe
The oil cooler kit has a structure in which a block is placed at the oil element installation part to take out the oil.

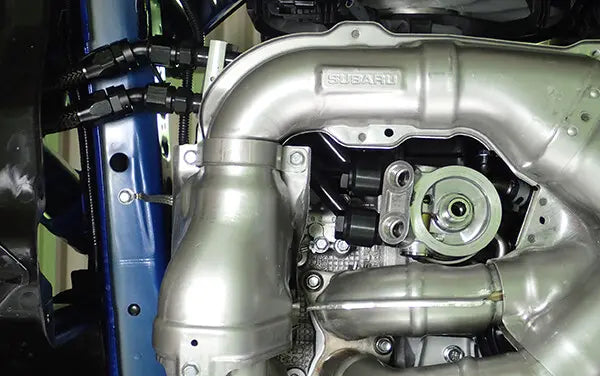

However, the oil outlet of the EJ engine is surrounded by the exhaust manifold, making it extremely susceptible to heat. In the worst-case scenario, we have determined that the mesh hose that comes with the regular kit is extremely dangerous, as the hose may be damaged.

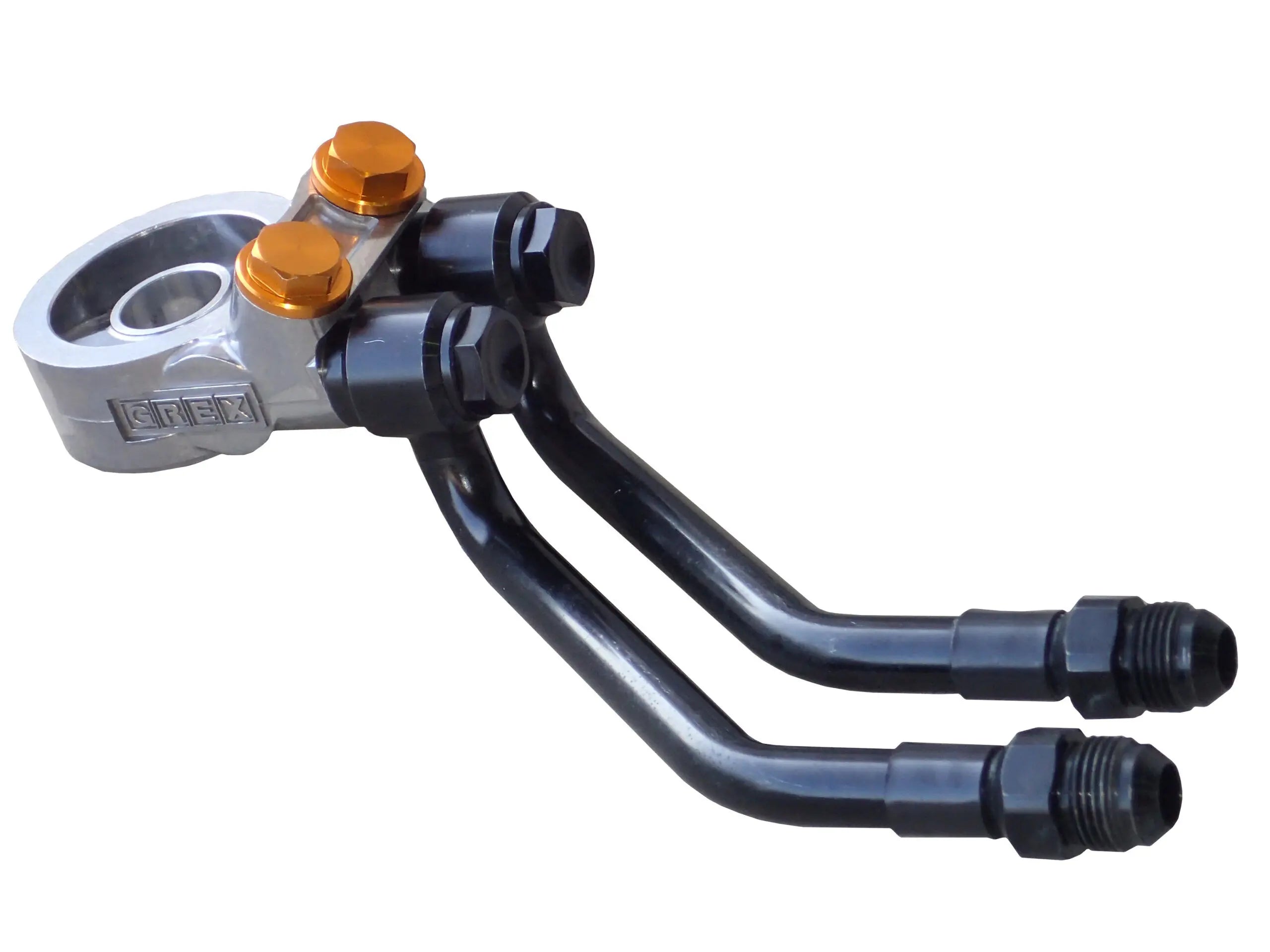

Therefore, we have developed a kit that can be used safely even on the harshest circuits by using a metal pipe instead of the usual mesh hose.
Specification
・Oil cooler core 13 stages L600× H284×W66 (in front of radiator)
・Oil line removal pipe
・Built-in thermostat (operating temperature 75°C~82°C±2°C) Nylon mesh hose
・Trust Original Black Anodized Aluminum Fitting
・ Work time 4~5 hours
・Center bolt M20 × P1.5 engines require an oil filter with a center bolt size of 3/4-16 UNF (applicable to GReddy oil filters OX-01 1500, OX-02 1600, and OX-03 1500).
[Compatible models] Subaru WRX STi
Model: VAB
Engine Model: EJ20
Year: 14.08-20.04
p/n: 12064609
