Oil Cooler Kit Hi-Capacity Front Mount Civic Type R 2017-21
SPECIAL ORDER
Part #: 12058003
GReddy Performance Products high-capacity front mount oil cooler kit for the Honda Civic Type R.

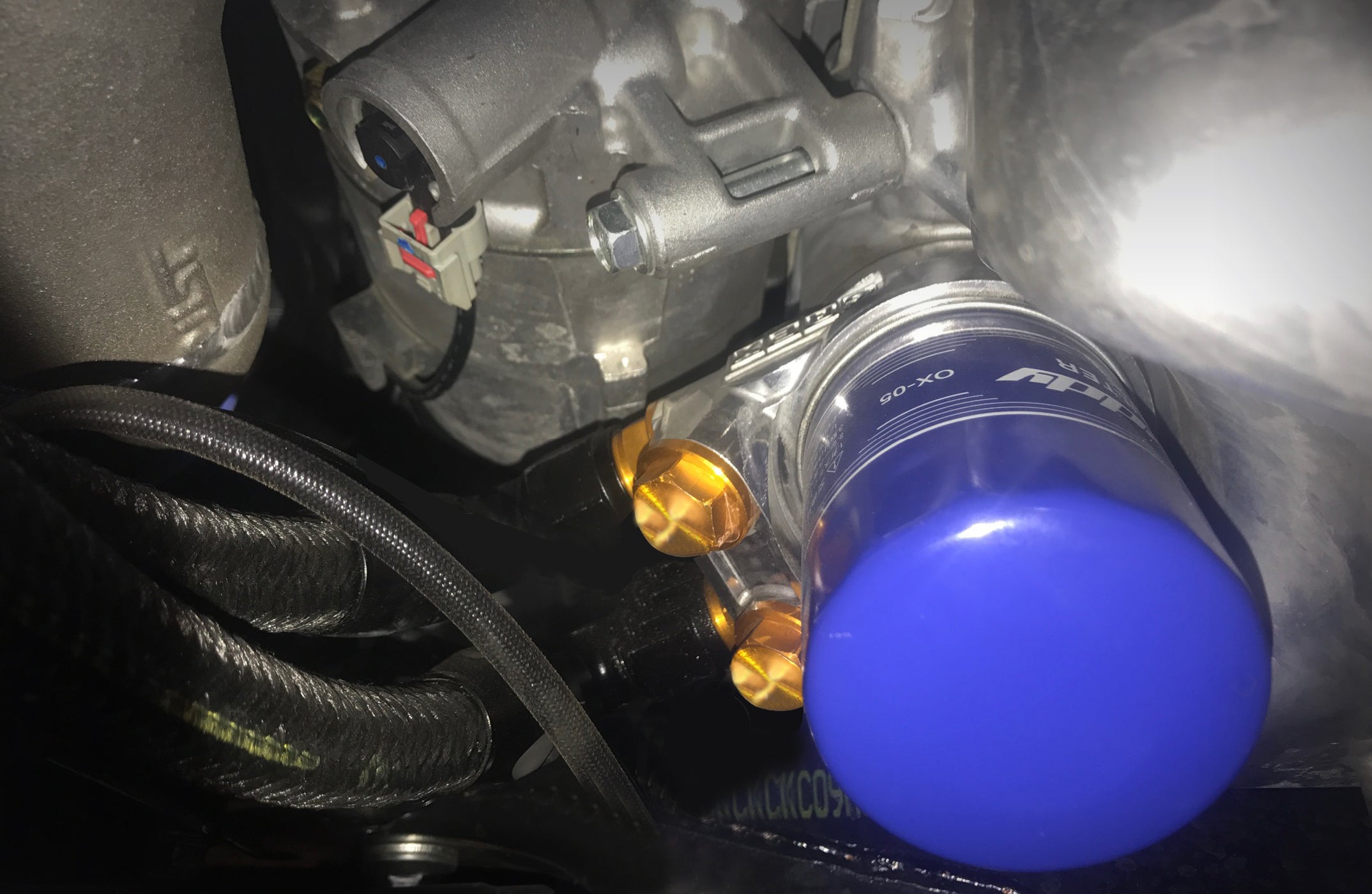

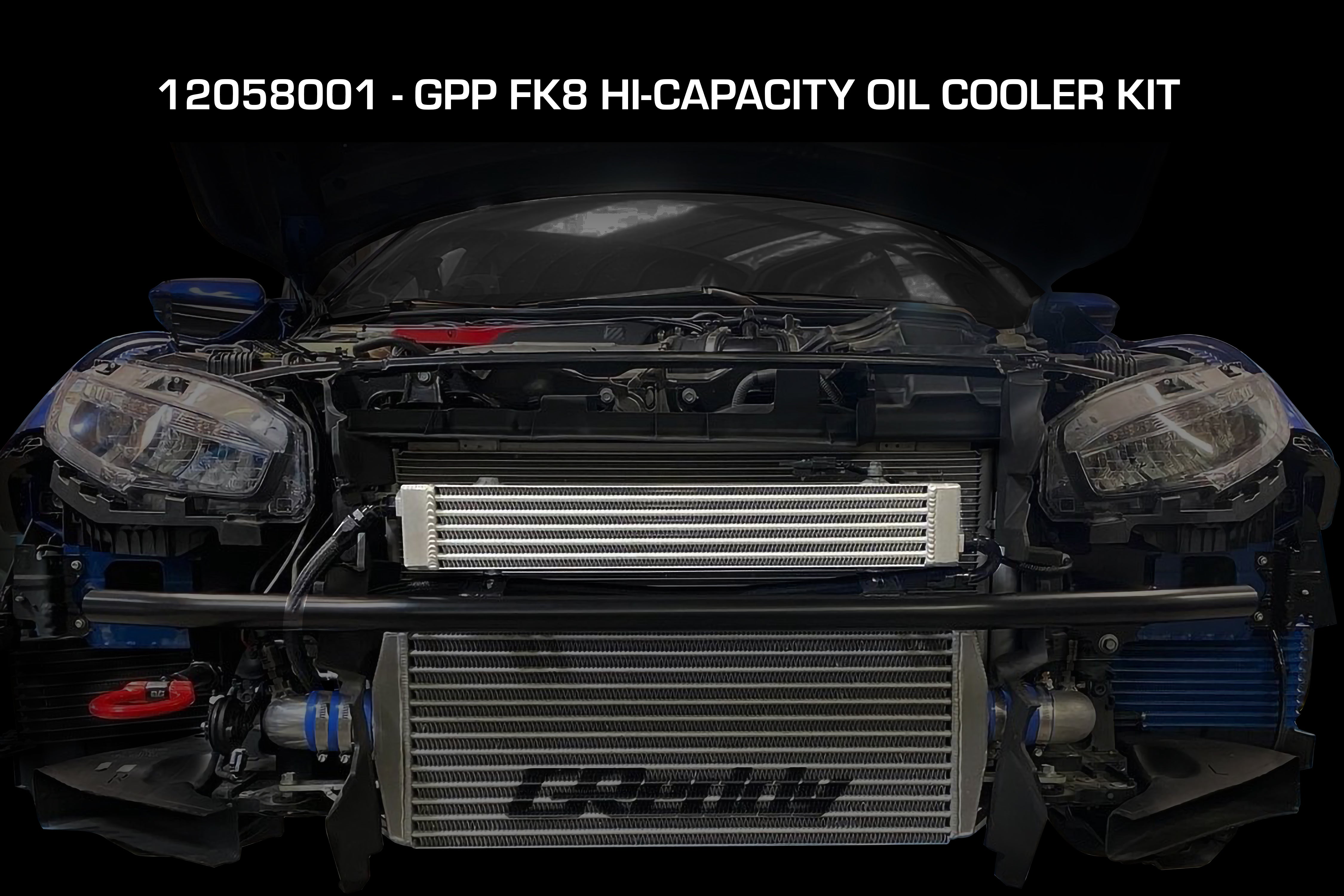

This kit addresses the documented cooling demands of the high performance K20C1 engine. By mounting a high-capacity K-type Koyo core just above the intercooler, in an unused area just behind the front grill, it does not hamper airflow. For constant oil temperatures, the other key component in the kit is the "tried and true" GREX oil block adapter with integrated thermostat for quick engine oil warm-ups. The oil block and oil cooler are connected by high flow -10 AN fittings and high-performance braided line. The complete kit also includes bolt-on brackets and necessary hardware.
Compatible Models
Chassis: Civic Type R
Engine: K20C1
Year: 2017-2021
Specification
- Core: K-type L
- Mounts above the intercooler, behind the center grill

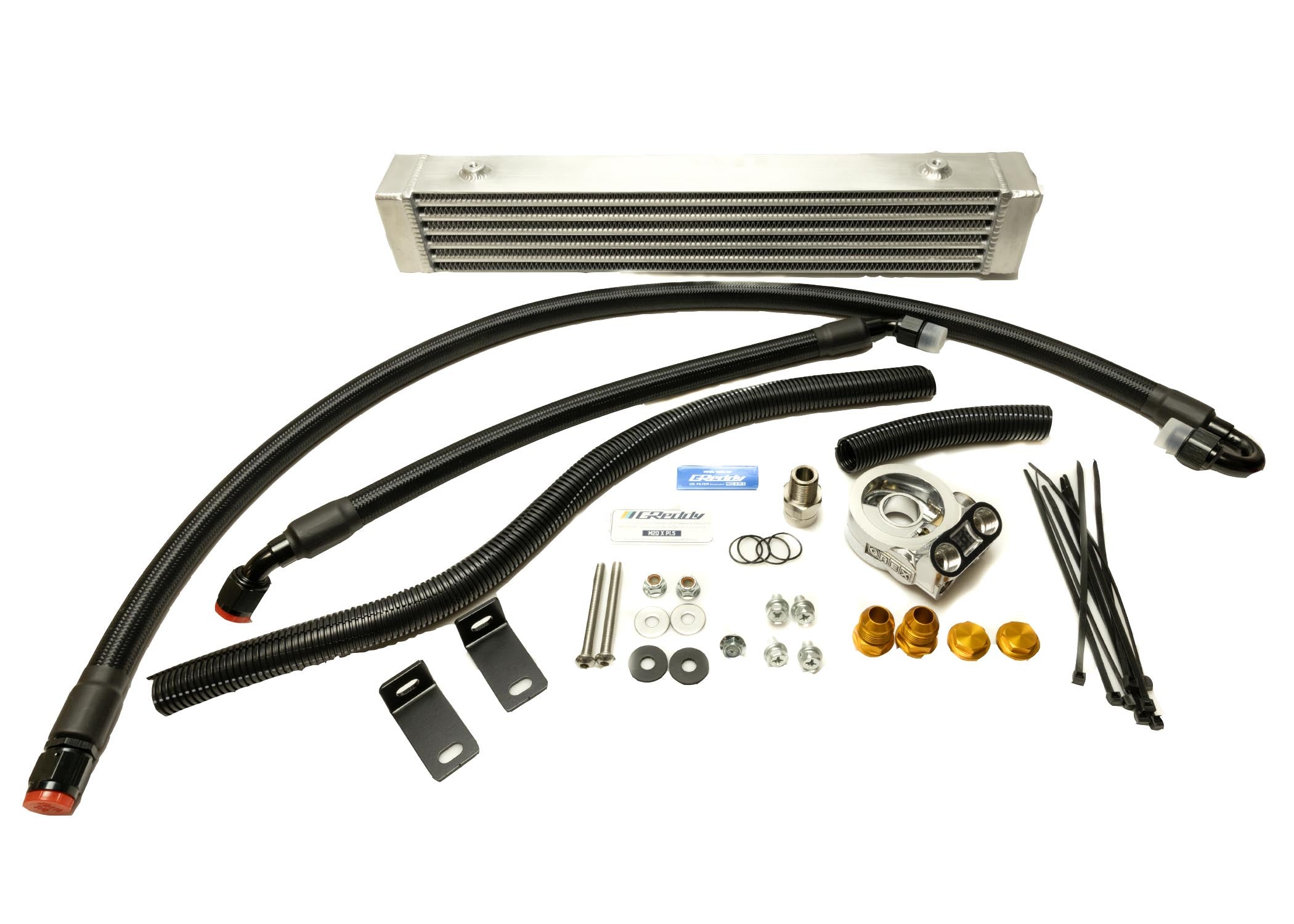

Kit Includes
- M20xP1.5 GREX oil block adapter with built-in thermostat
- K-type L oil cooler core
- -10 AN fittings and braided line
- Ducting plate, brackets and hardware
About GPP Oil Cooler Kits
GPP oil cooler kits help prolong the life of your oil and in turn your internal engine components. Hard driving causes higher engine temperatures. Factory oil coolers are normally small water-cooled devices sandwiched between the oil filter and engine block. These tax the cooling system even under normal driving conditions. GPP oil coolers are an excellent addition, and are especially effective in harsh driving environments. They increase oil capacity, decrease oil temperatures, and extend engine and oil life.
Notes
- Not compatible with the 2020 model Type R
- Recommended oil filter: GReddy OX-05 M20-P1.5, Dia. 65mm, H75mm (13901105) or equivalent
