OIL COOLER KIT W/ FILTER RELOCATION JZX90 13-ROW - (12014408)

Sale price$1,150.00

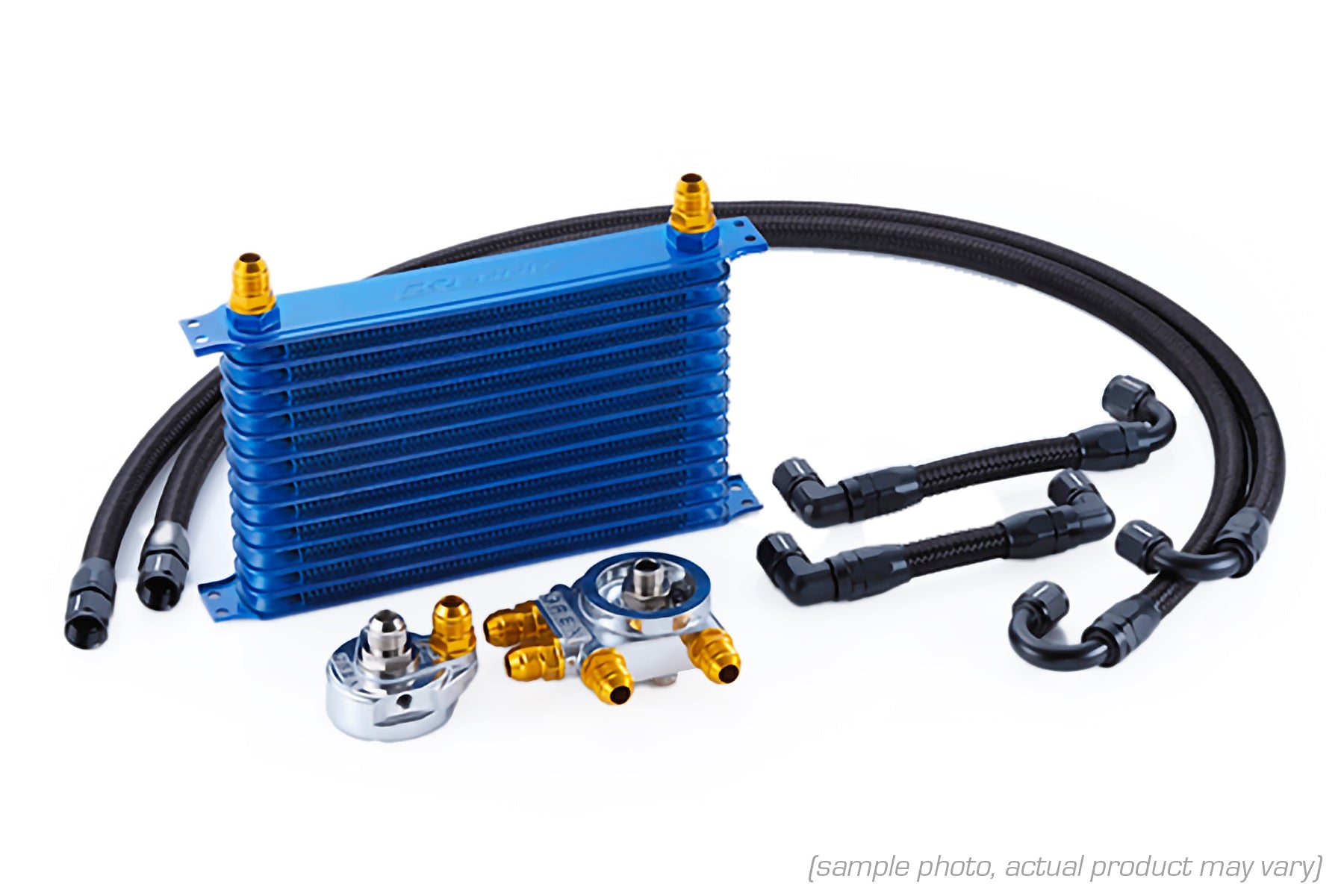

Oil cooler kit moving 13row for JZX90

Product Features

  • An ideal oil cooler that uses a large-capacity core with offset fins in the core tube to increase heat dissipation and reduce pressure loss.
  • A type of kit that can be installed on cars that do not have clearance near the oil filter.
  • By moving the element, it is easier to replace the oil filter and improve maintenance.

Product Specifications

  • Core type: NS1310G
  • Thermostat: Built-in block
  • Core installation position: In front of radiator
  • Element installation location: Next to the air conditioner compressor
  • Center bolt size: 3/4-16UNF

Compatible models: TOYOTA Mark II series

  • Vehicle model: JZX90
  • E/G model: 1JZ-GTE
  • Year: 92.10-96.09
  • CODE:12014408

Remarks

  • GReddy I/C KIT cannot be installed at the same time
    *When installing on H4.10 to H3.10 vehicles, oil filter bracket change and water line processing are required.
