GReddy Intake Air Duct FA24 GR86/BRZ

Part #: 12515002

Description: GReddy Direct Air Intake GR86(ZN8)/BRZ(ZD8)

Features:

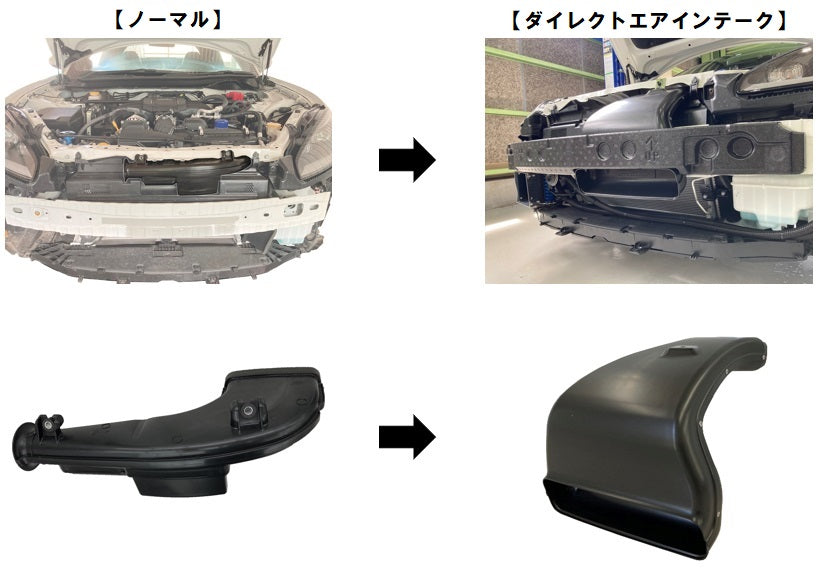

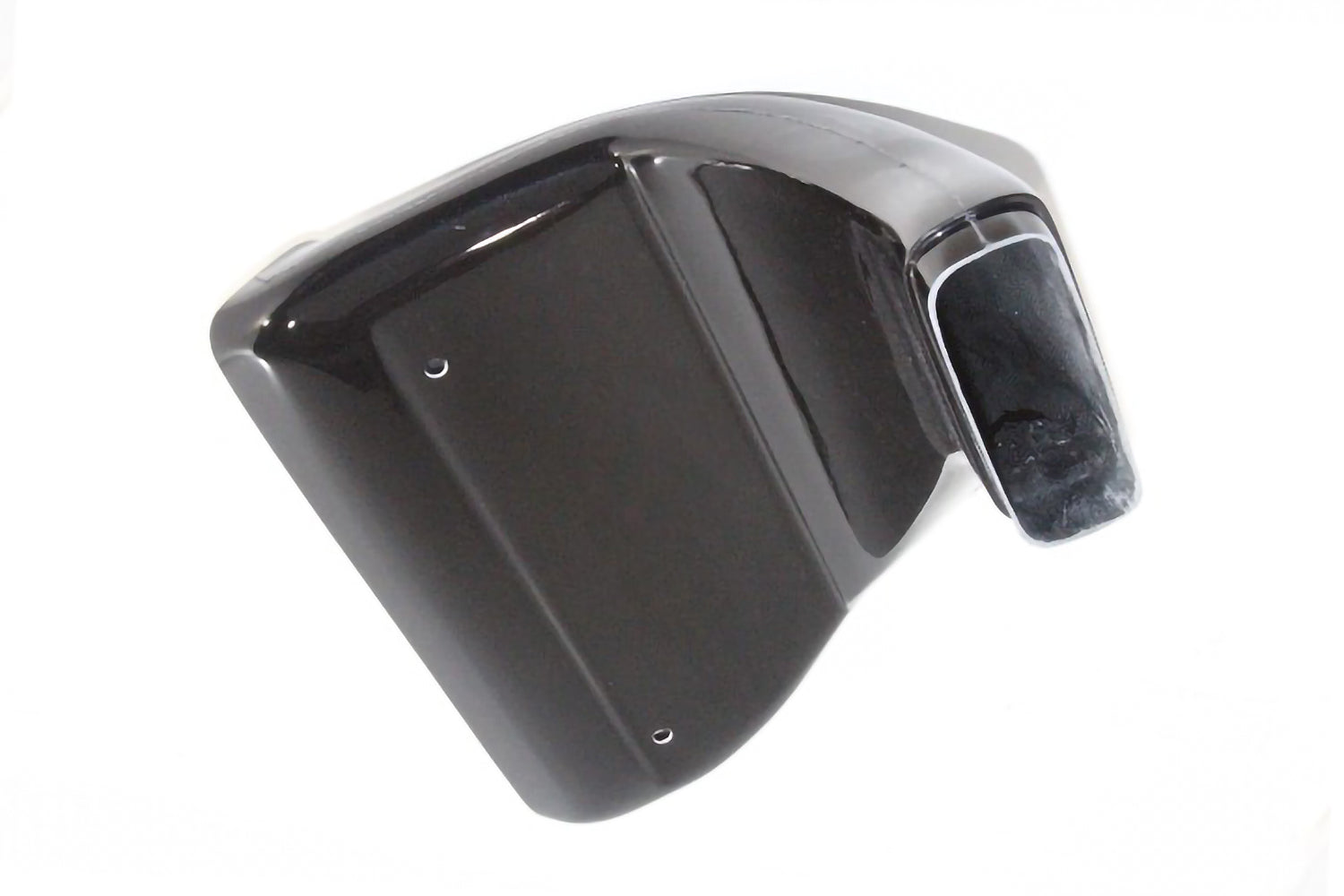

• This is an air intake duct that directly takes in the driving wind. (Made of PP: Polypropylene vacuum forming) Replacement installation with the genuine air intake duct whose intake port is hidden behind the bumper. 300g lighter than our FRP products for ZN6/ZC6.

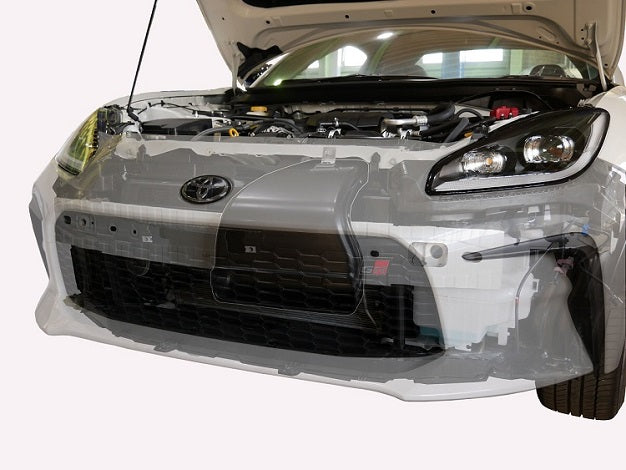

• A large duct intake port is installed in the radiator grille to actively draw fresh air into the air cleaner.

Specification:

• Compatible with genuine cleaner box.
• Product installation requires removing and removing the Fr bumper, drilling and machining the reinforcement, and cutting the energy absorber (Styrofoam).
• Package size: W285 x D355 x H375 mm
• Package weight: 1.2kg

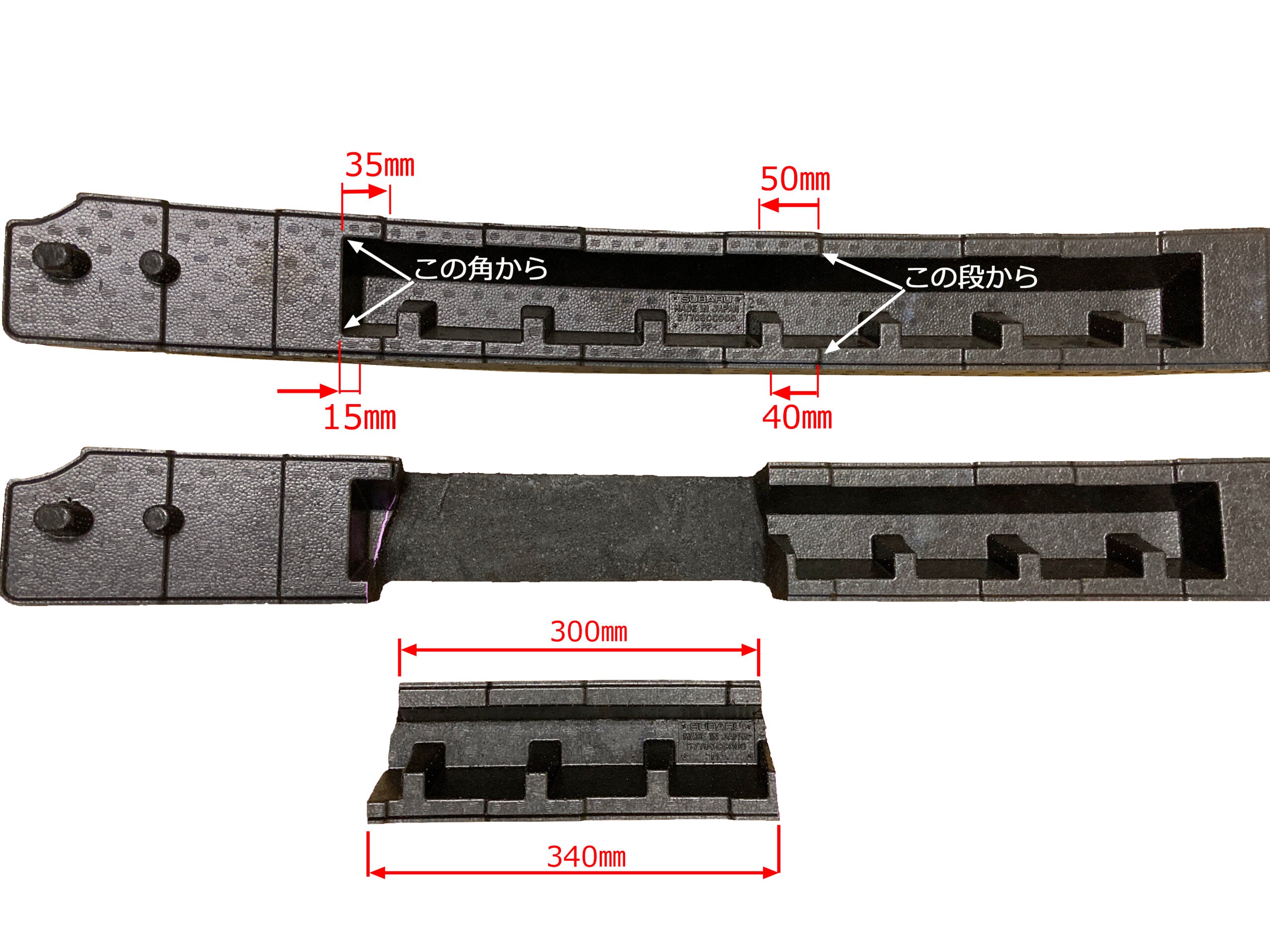

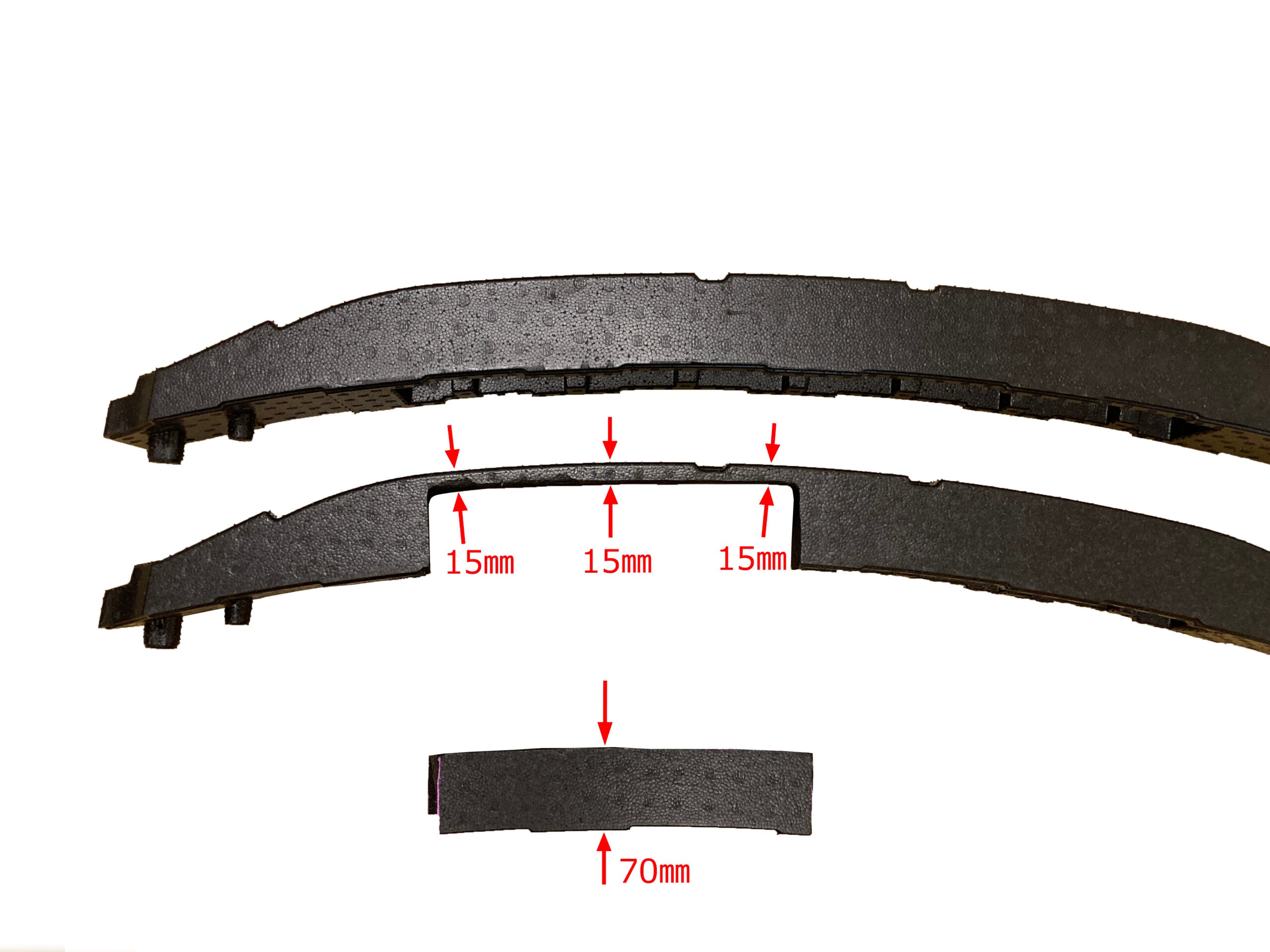

Reference cut dimensions of energy absorber:

Cut (using an air saw, saw, cutter, etc.) referring to the diagram below.

*Approximate dimensions. Please cut it into smaller pieces and gradually finish it according to the vehicle.
