GREDDY SIRIUS OBD SET (VISION) - (16001750)

16001750 - GREDDY SIRIUS OBD SET (VISION)

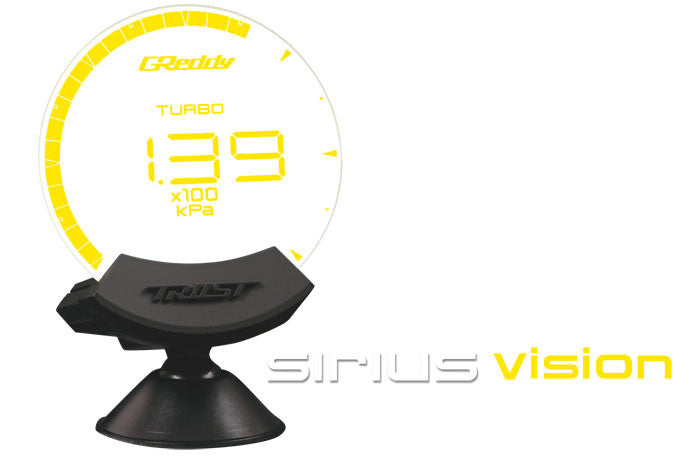

1x 66mm Sirius Vision Meter Display

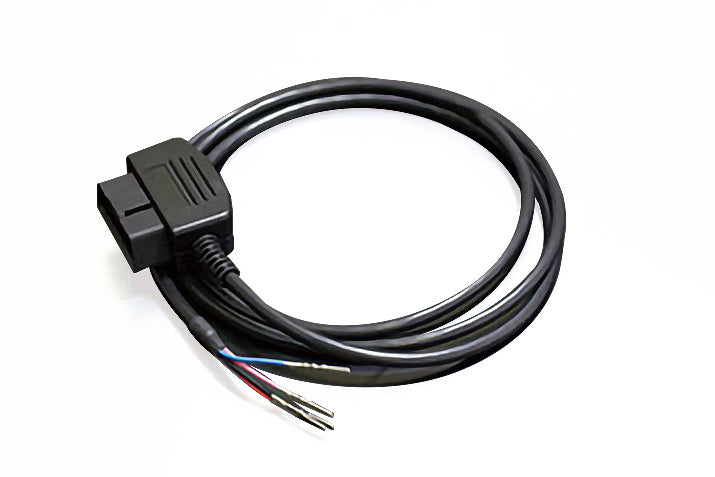

1x ISO CAN Communication Harness

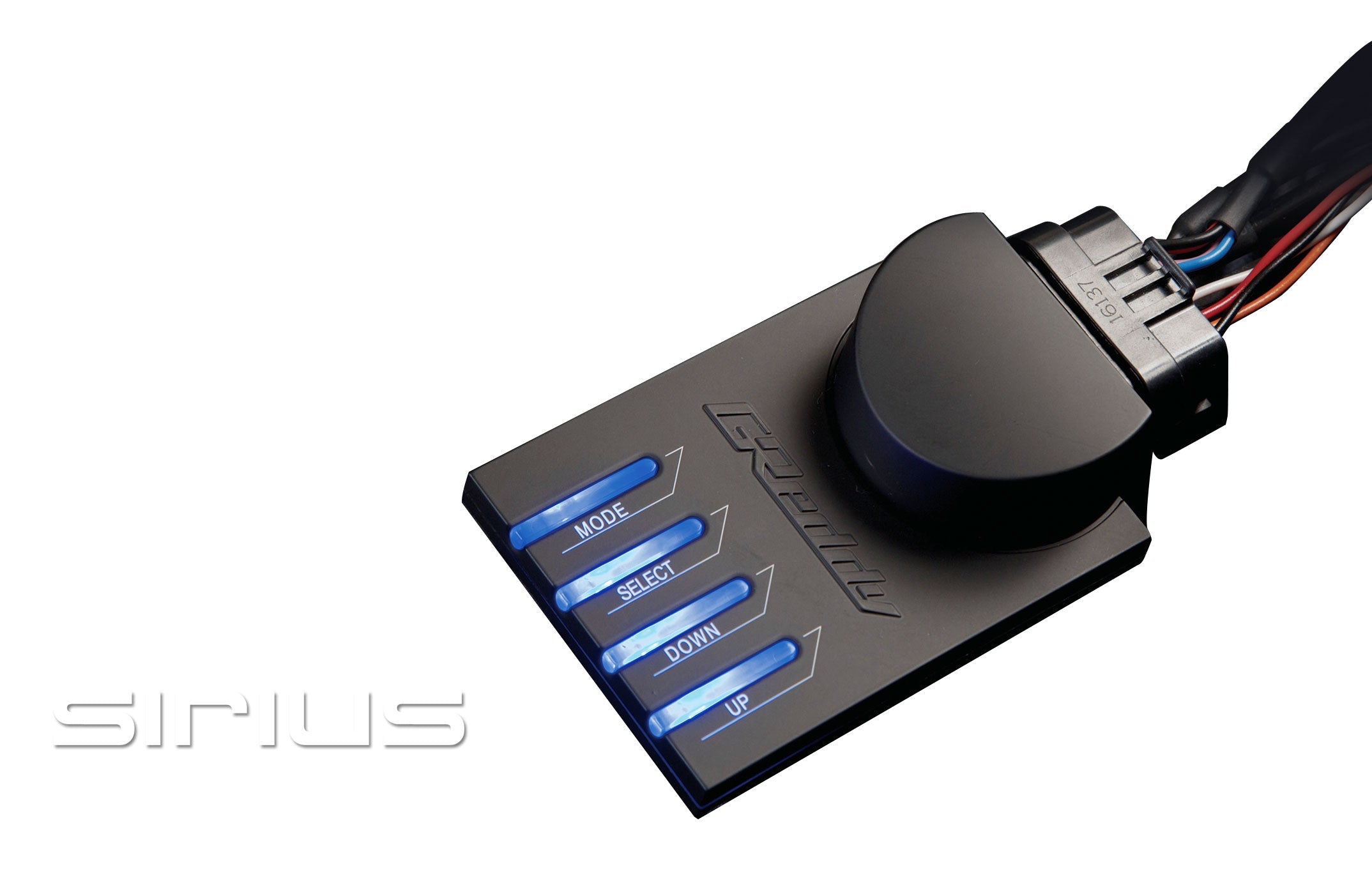

1x Sirius Control Unit

GReddy SIRIUS OBD

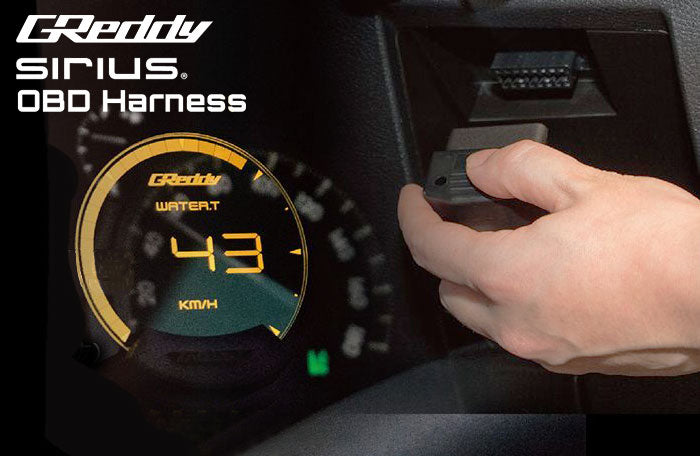

Easily connect GReddy SIRIUS with OBD

SIRIUS optional parts

• This is a harness that allows one-touch connection of GReddy SIRIUS to the fault diagnosis connector (OBDⅡ) of ISO CAN communication vehicles. (Compatible car models only)
• When installing Sirius Vision and Unify, you can select from 6 patterns on the display: boost, water temperature, intake temperature, rotation speed, vehicle speed, and voltage.
• For Sirius meter (analog) only boost and water temperature are supported
• If GReddy's boost sensor or water temperature sensor is already connected, the sensor data will take priority.
• Insert the four harness pins into the expansion port of the control unit.

*JDM Page Compatibility Chart (pdf)

NOTE: ** Control Unit, Vision, and Unify whose serial number is earlier than GSI - 8000 require updating. (details to come)
