GREDDY SIRIUS OBD SET (UNIFY WATER TEMP) - (16001761)

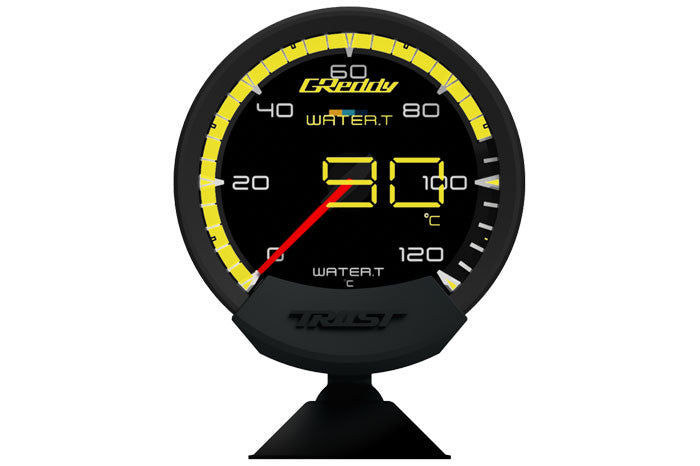

1x 74mm Sirius Analog Water Temperature Meter with integrated Sirius Vision display
     (Range: 0～120℃)

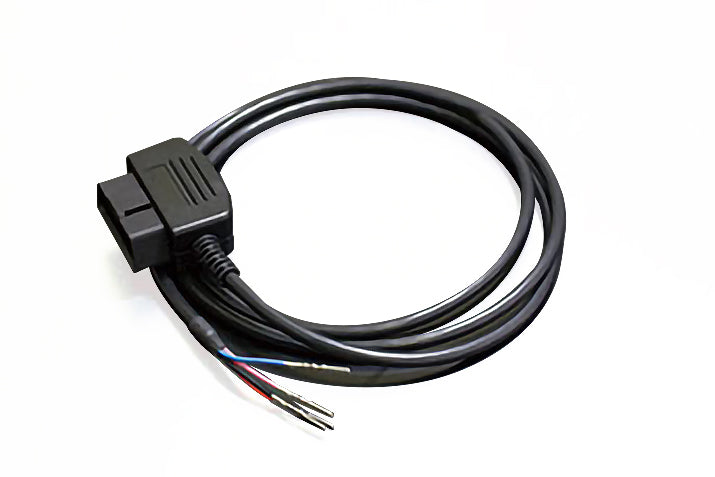

1x ISO CAN Communication Harness

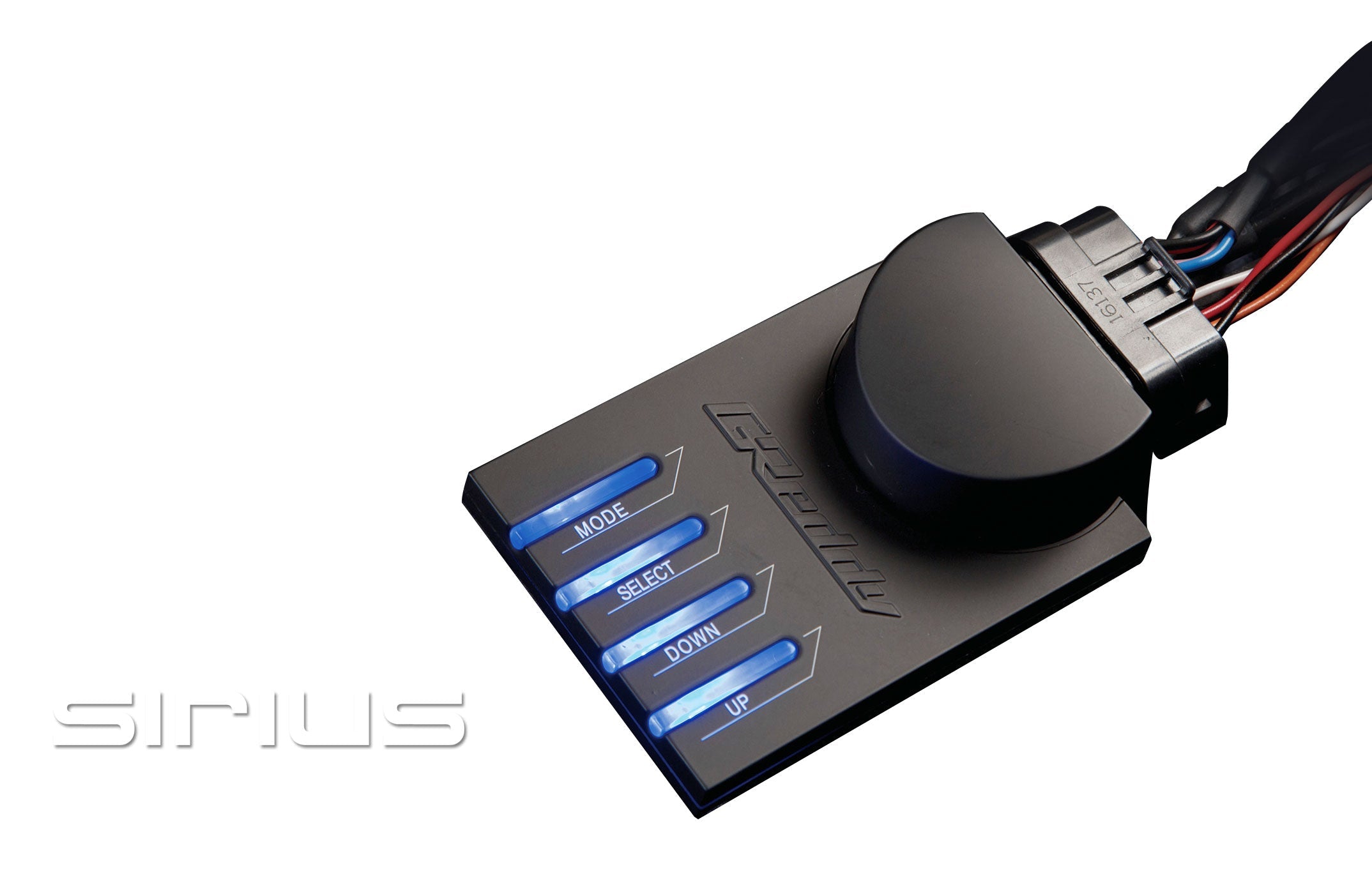

1x Sirius Control Unit

GReddy SIRIUS OBD
Easily connect GReddy SIRIUS with OBD

SIRIUS optional parts

• This is a harness that allows one-touch connection of GReddy SIRIUS to the fault diagnosis connector (OBDⅡ) of ISO CAN communication vehicles. (Compatible car models only)
• When installing Sirius Vision and Unify, you can select from 6 patterns on the display: boost, water temperature, intake temperature, rotation speed, vehicle speed, and voltage.
• For Sirius meter (analog) only boost and water temperature are supported
• If GReddy's boost sensor or water temperature sensor is already connected, the sensor data will take priority.
• Insert the four harness pins into the expansion port of the control unit.

Also available are Sirius OBD Sets, which include the Meter, Control Unit and OBD Harness...

*JDM Page Compatibility Chart (pdf)

NOTE: ** Control Unit, Vision, and Unify whose serial number is earlier than GSI - 8000 require updating. (details to come)
