GREDDY METAL HEAD GASKET RB26 87# 1.2MM - (13521302)

NISSAN RB26 METAL HEAD GASKET(S)

GReddy Metal Head Gaskets are offered in a stock and 1.0mm-over bore size and stock and 0.2mm thicker gasket to slightly lower compression. With higher boost pressure comes increased horsepower, this means increased cylinder pressure. These special metal reinforced Head Gaskets are available in various thickness to lower compression levels and help withstand the extreme temperature and cylinder pressure of a high output (as well as a better-than-OE replacement for the) RB26 engine.

13521302 – NISSAN RB26 METAL HEAD GASKET - Bore:87.0mm, Thickness: 1.2mm
13521303 – NISSAN RB26 METAL HEAD GASKET - Bore:87.0mm, Thickness: 1.4mm

13521304 – NISSAN RB26 METAL HEAD GASKET - Bore:88.0mm, Thickness: 1.2mm
13521305 – NISSAN RB26 METAL HEAD GASKET - Bore:88.0mm, Thickness: 1.4mm

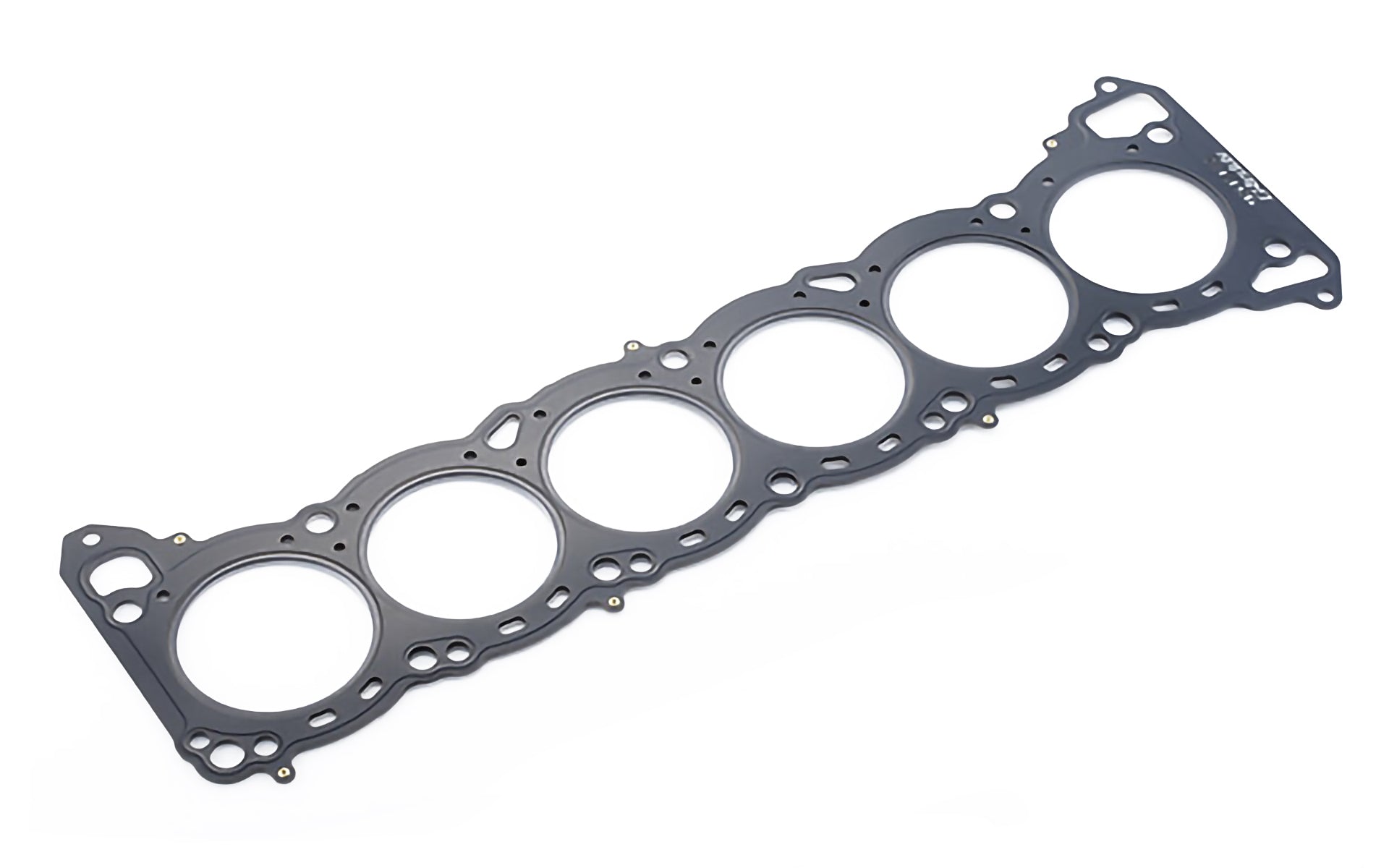

GReddy Metal Head Gasket for RB26
Ensures high surface pressure and prevents combustion gas pressure from escaping.

Product features
High surface pressure is ensured by using a grommet type. Prevents combustion gas pressure from escaping due to high boost.

Specification

■Grommet type metal head gasket
■Bore diameter φ87.0 (piston diameter φ86.0 to 86.5), φ88.0 (piston diameter φ87.0 to 87.5)
■Thickness 2 types: 1.2 mm and 1.4 mm

[Compatible models] Nissan Skyline GT-R

Compatible model: BNR32/BCNR33/BNR34
Engine model: RB26DETT
Year: 1989.8~2002.8
