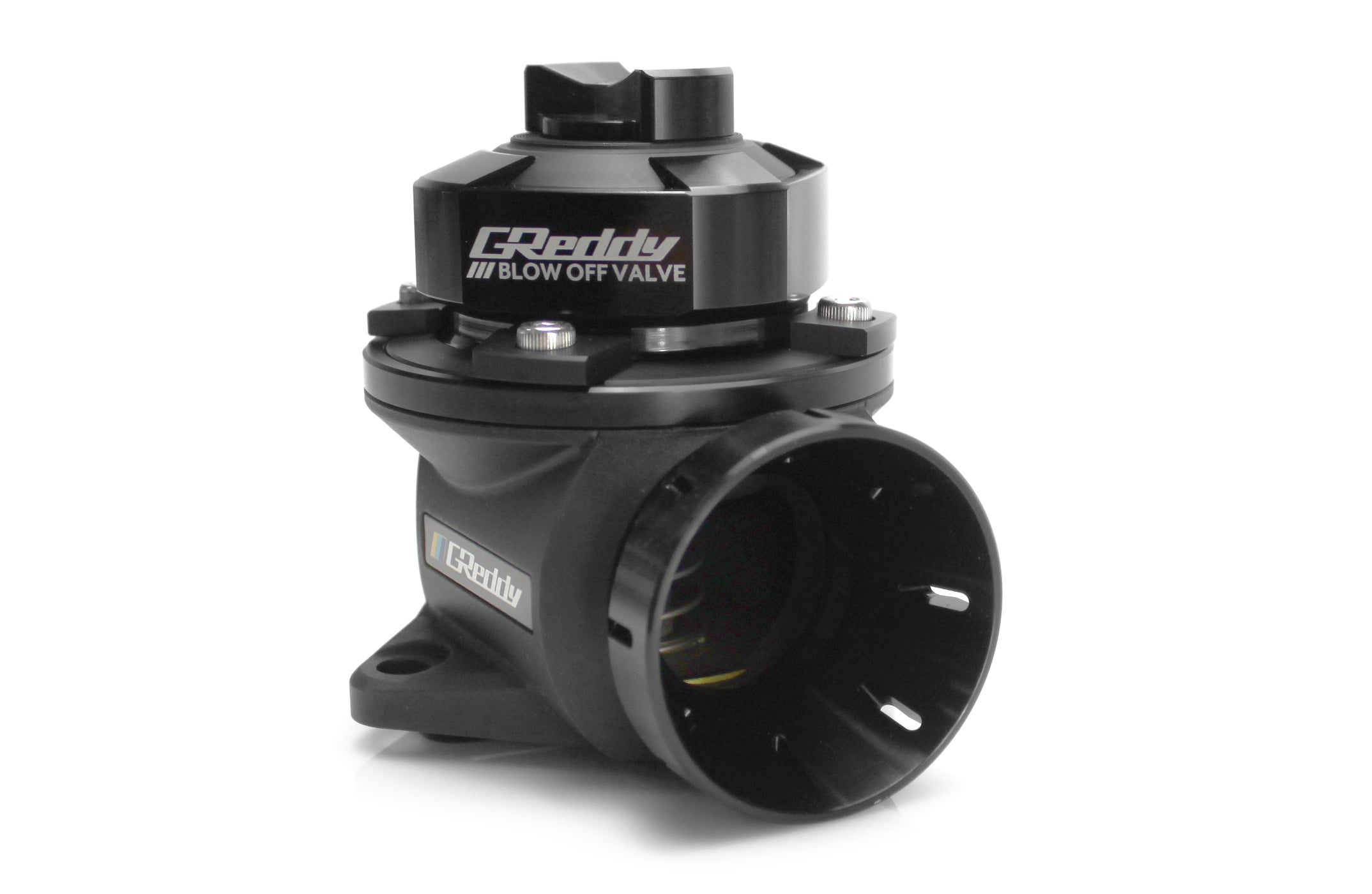

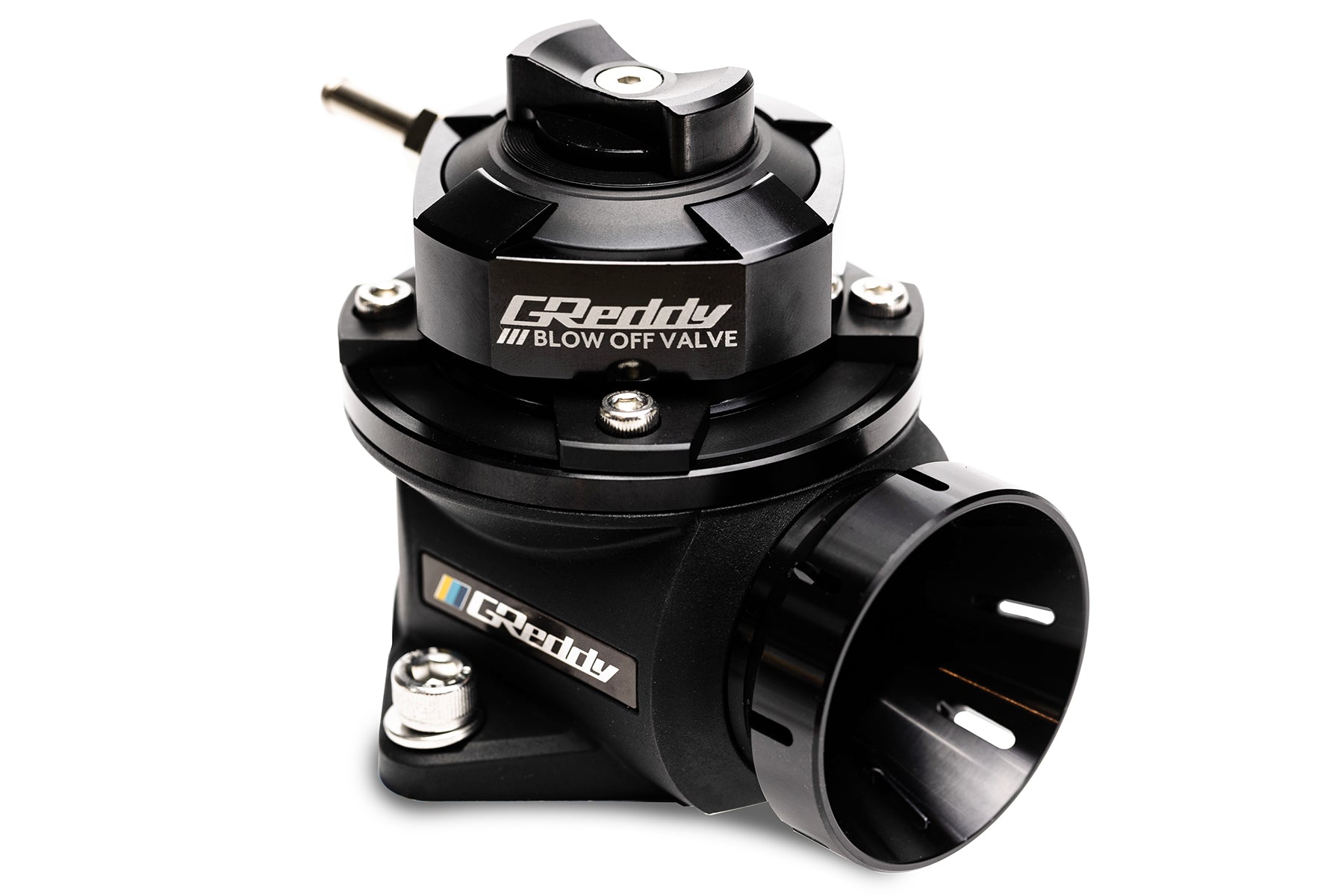

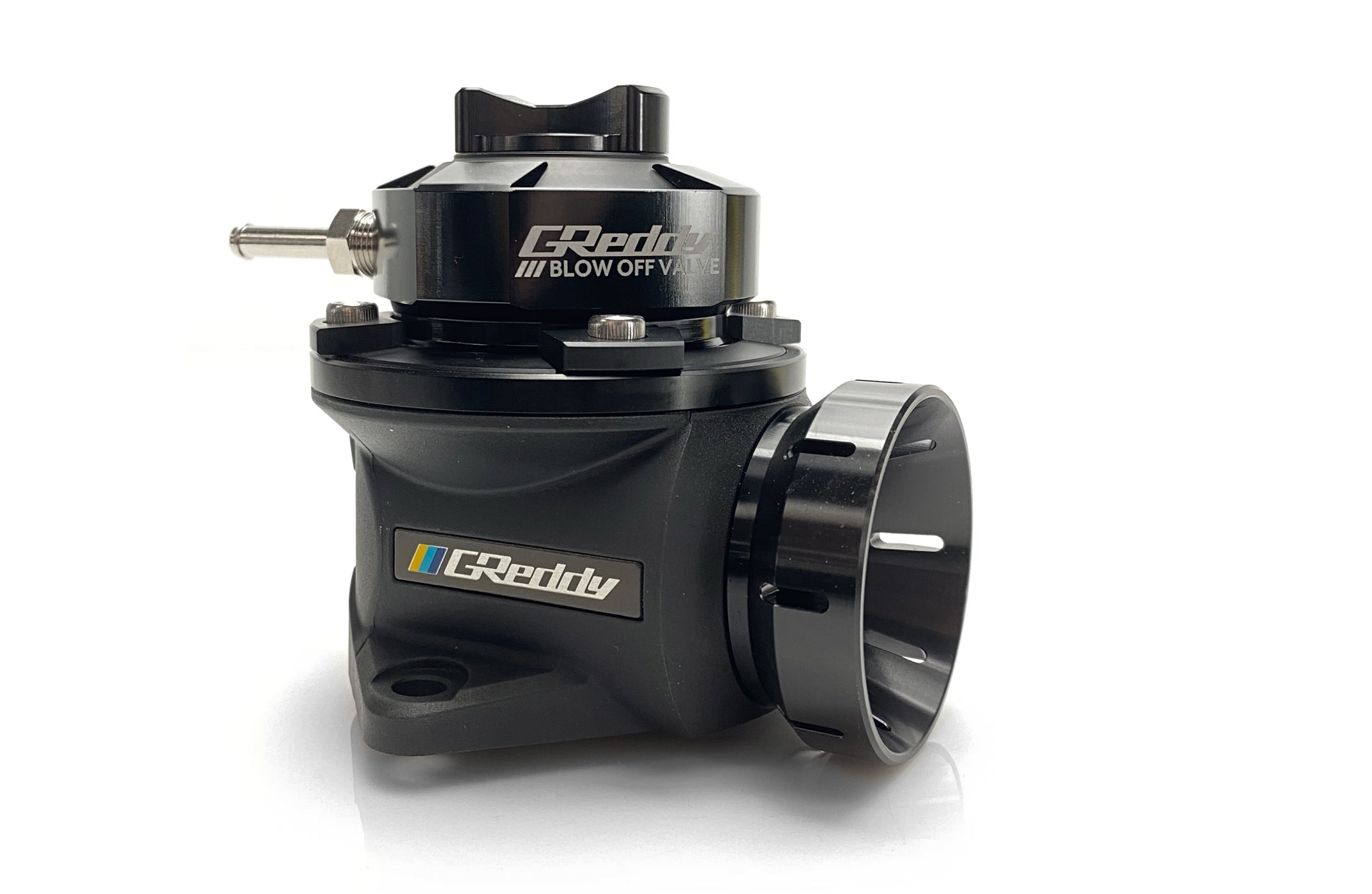

GREDDY TYPE FV2 BLOW OFF VALVE "BLACK-OUT" - (11501673)
may also require p/n GREDDY BLOW OFF VALVE FLANGE - ALUMINUM - (11900451)
"Black-out model" GReddy BLOW OFF VALVE TYPE-FV2 inherits the floating valve structure that was popular in the previous FV model, while improving with a more sophisticated design, easier adjustment, and even more reliability.

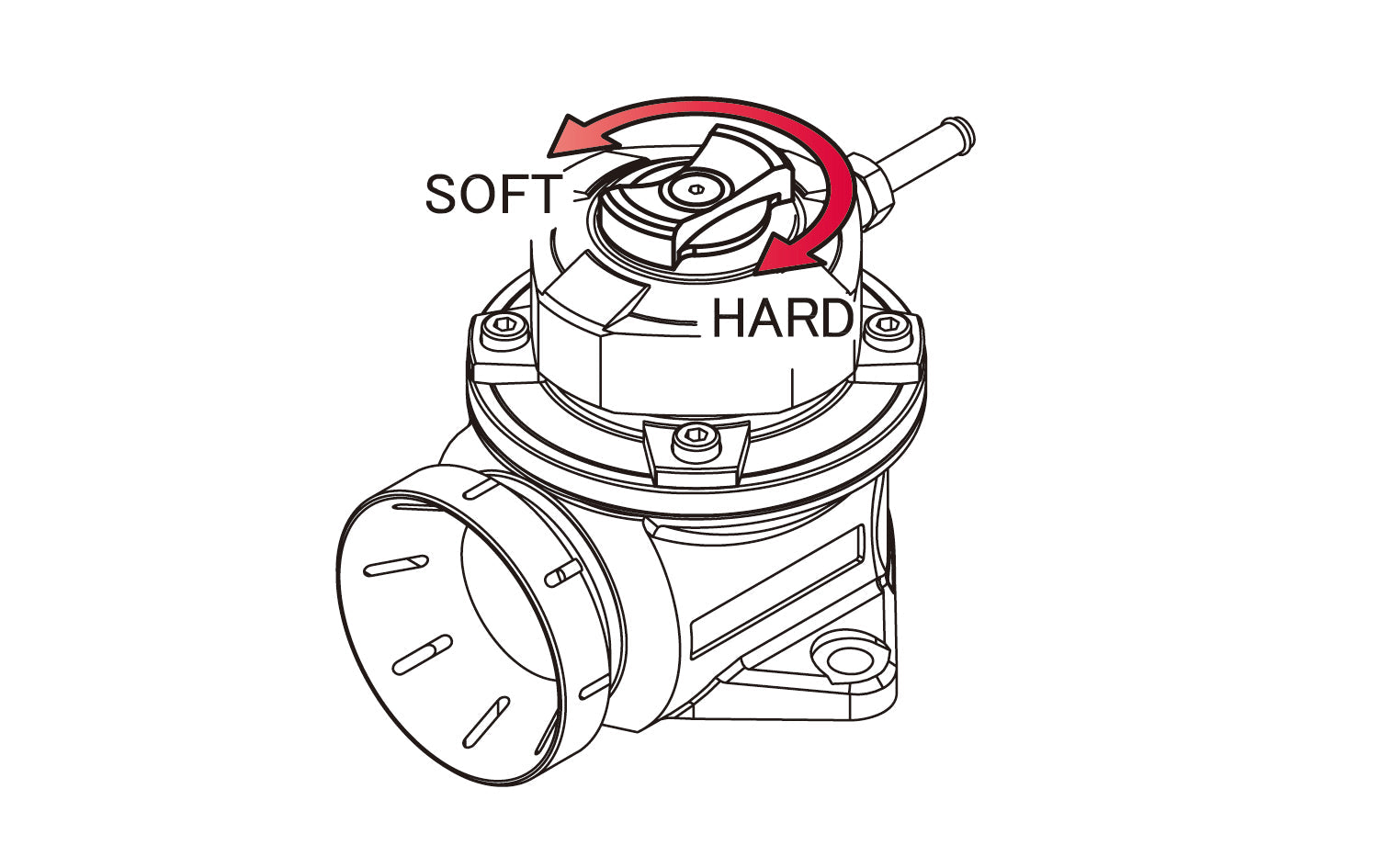

A hand turning detent knob that adjust the preload setting of the spring does not require any tools. It is also now possible to change the direction of the hose union on the top cover, so it can also be adjusted 360°, also without tools, to best suit your installation.
The mounting flange and inlet retain the same dimensions as previous GReddy blow-off valves (TYPE-RS, RZ, and FV) so the TYPE-FV2 can easily replace any of the older models. Made in Japan.
Black on Black, adjustable detent rotary knob, floating valve, revised funnel outlet

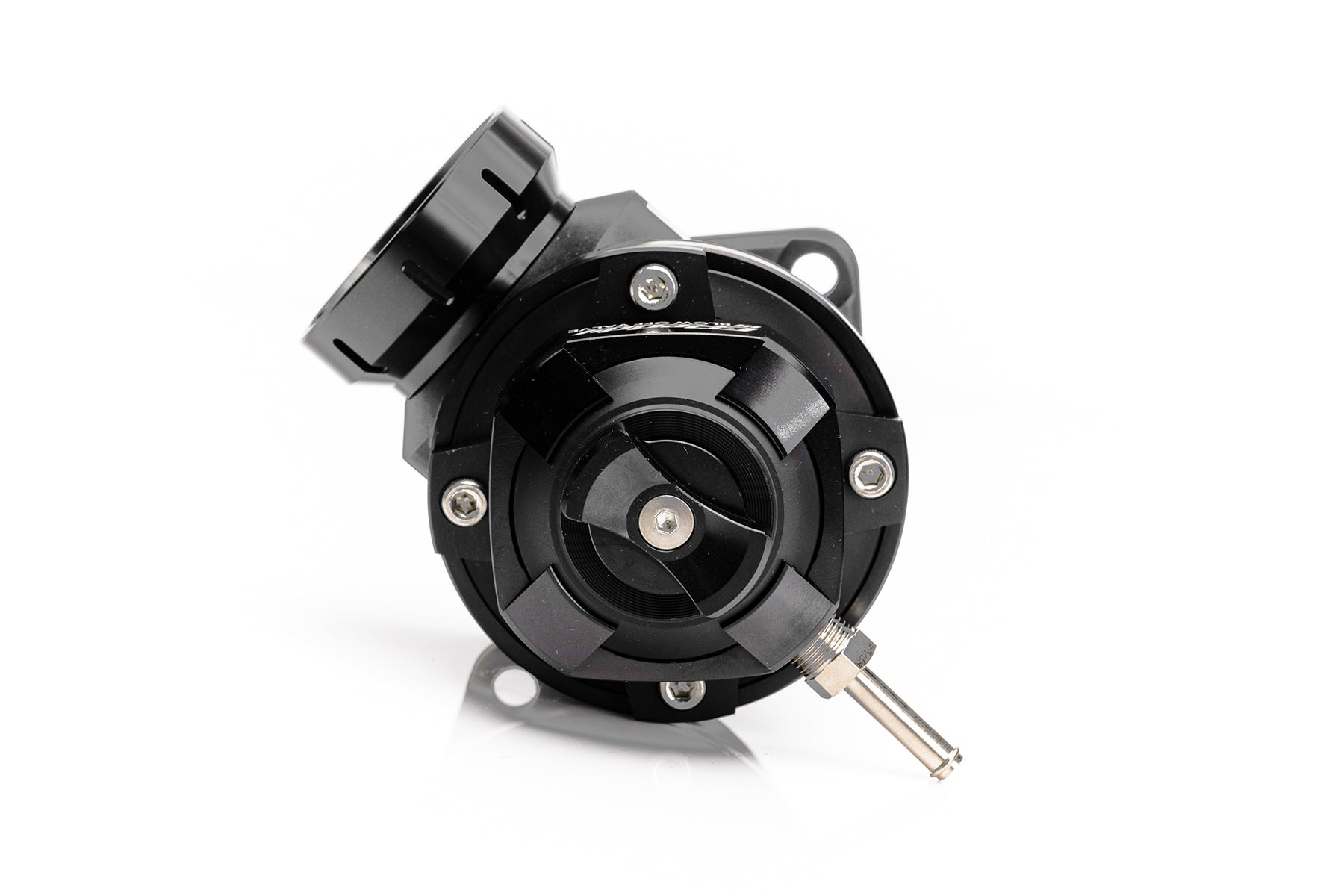

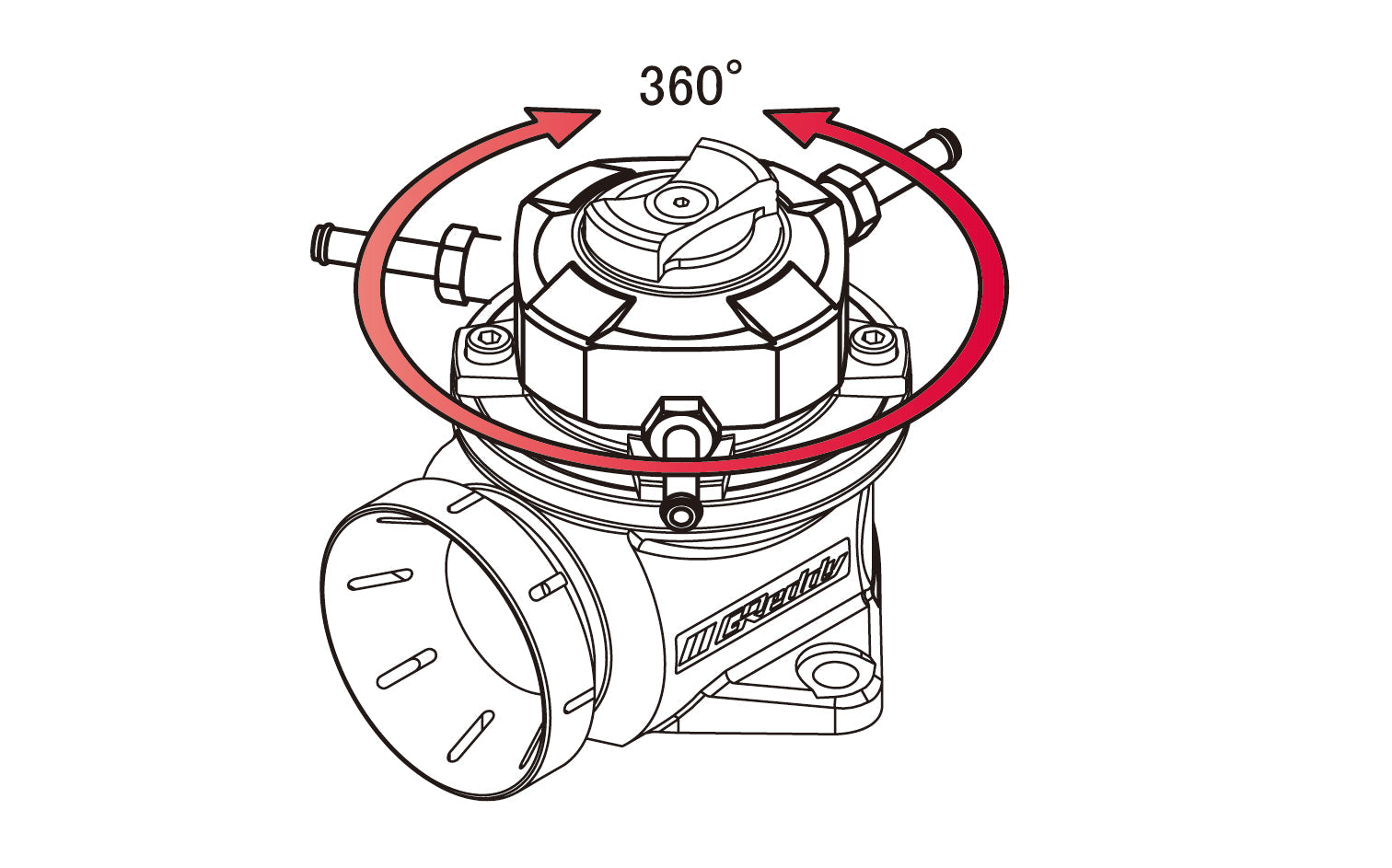

New 360 degree adjustable top hat - to point the. vacuum fitting. in any direction.

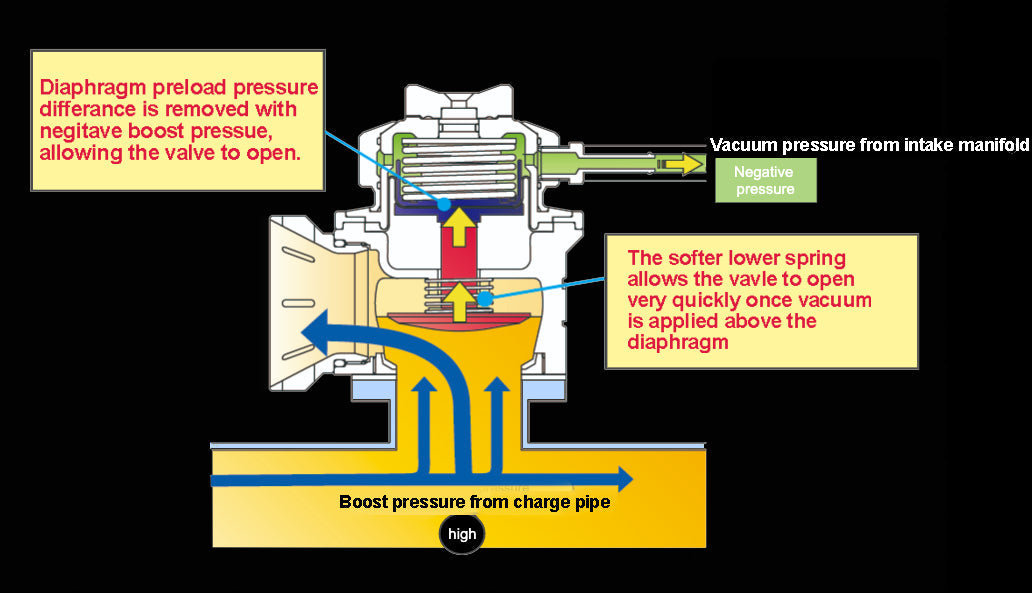

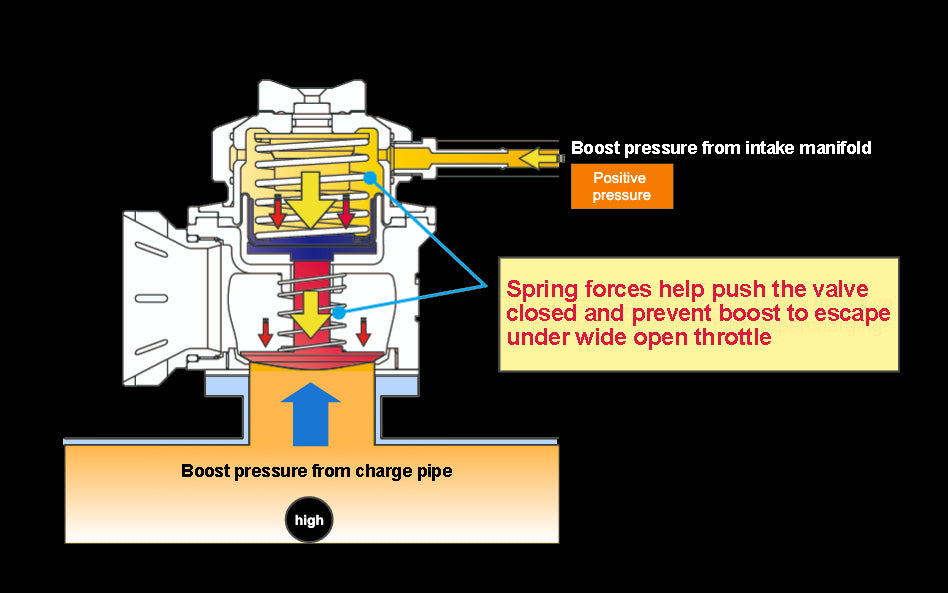

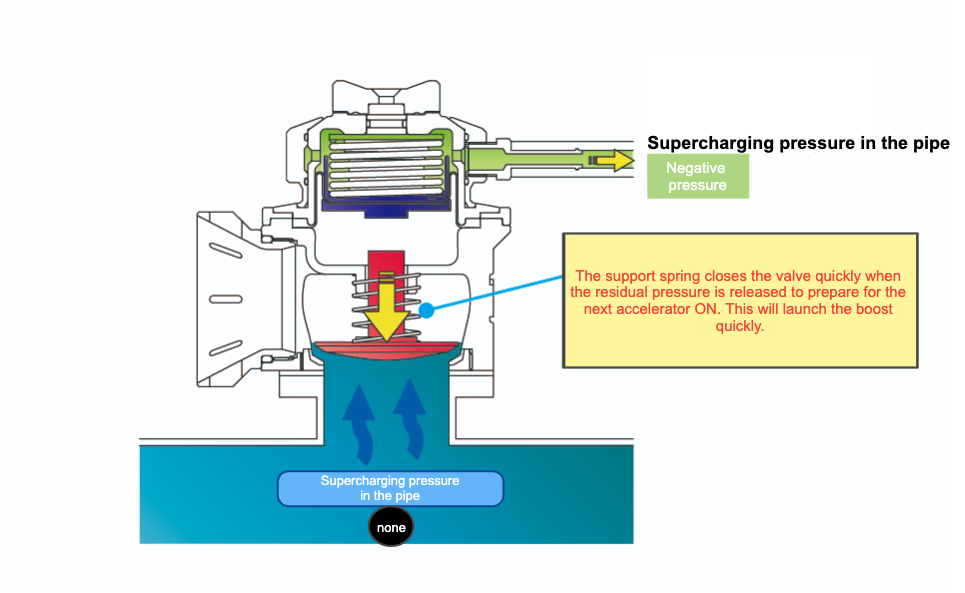

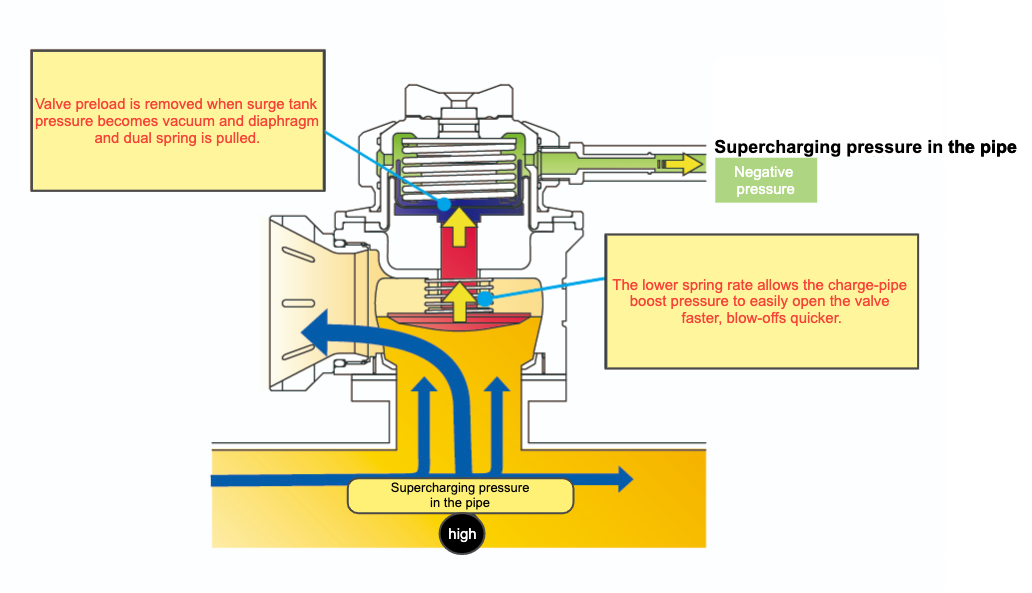

Floating Valve design with opposing springs, alows for improved control, response and idle.
new top hat design allow for rotating of the vacuum nipple without disassmebly of the unit.
80-480hp range
BOV gasket, nuts & bolts

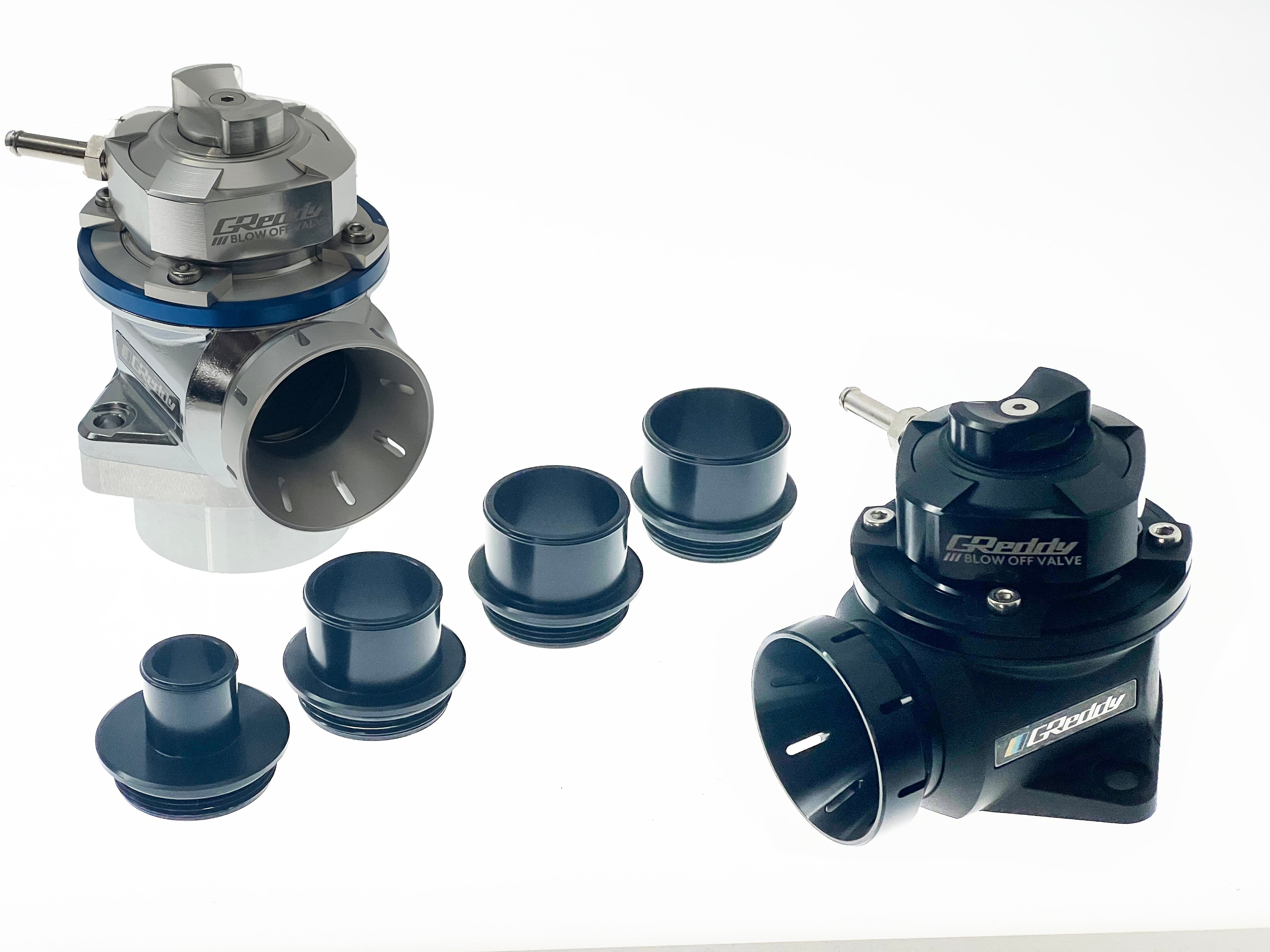

Compatiable with standard 2-bolt GReddy BOV flanges and Type-RZ outlet adapters.
Replacement Parts for Type-FV II (FV, RZ / RS / S) - (here)
To install this product, the GReddy blow off valve mounting flange is required.
In addition, please prepare other necessary parts such as piping and hoses.
Product Name Description Code
Weld-on Mounting Flange Aluminum 11900451
or an 3rd party application specific adapter
