Revised GReddy Std. Oil Cooler Block Adapter - Universal - Coming Soon!
USE THE PULL-DOWN MENU ABOVE TO SELECT CENTER BOLT SIZE, THEN ADD TO CART ^

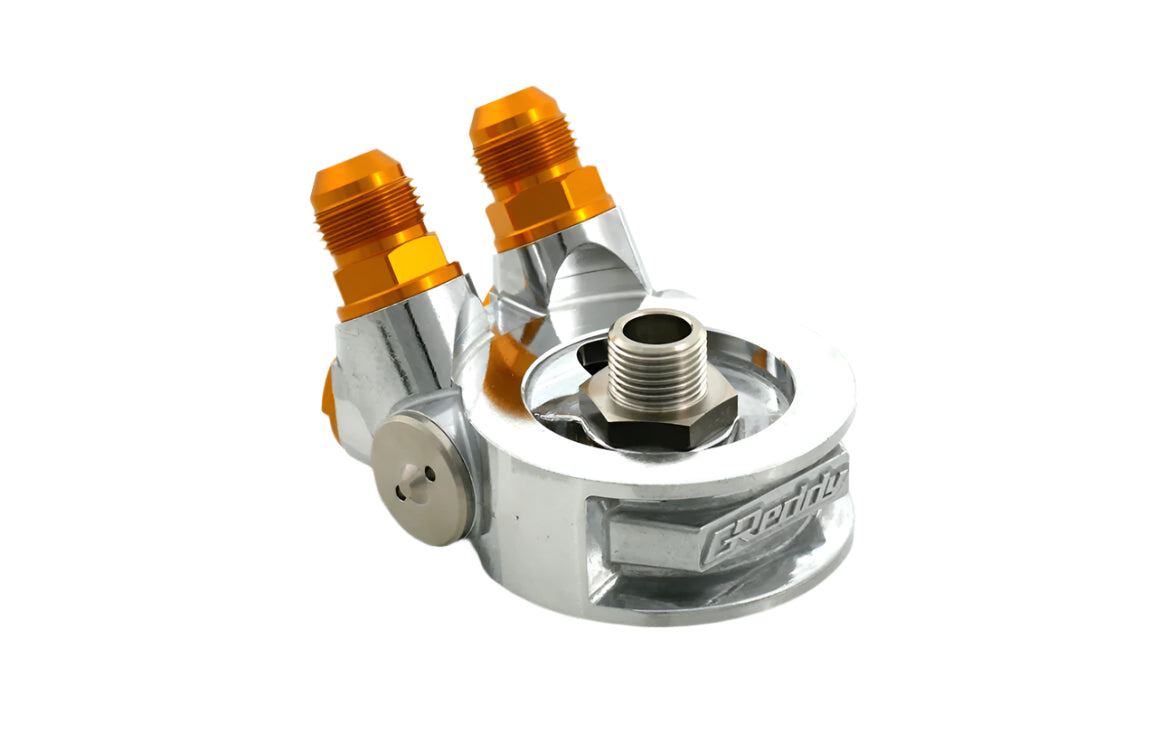

Updated and revised Type E - Standard Block Adapter Model
GReddy Universal Oil Block with AN -10 Fittings with built-in GReddy Thermostat (70-80 C)
Ideal for custom Oil Cooler Kit applications.

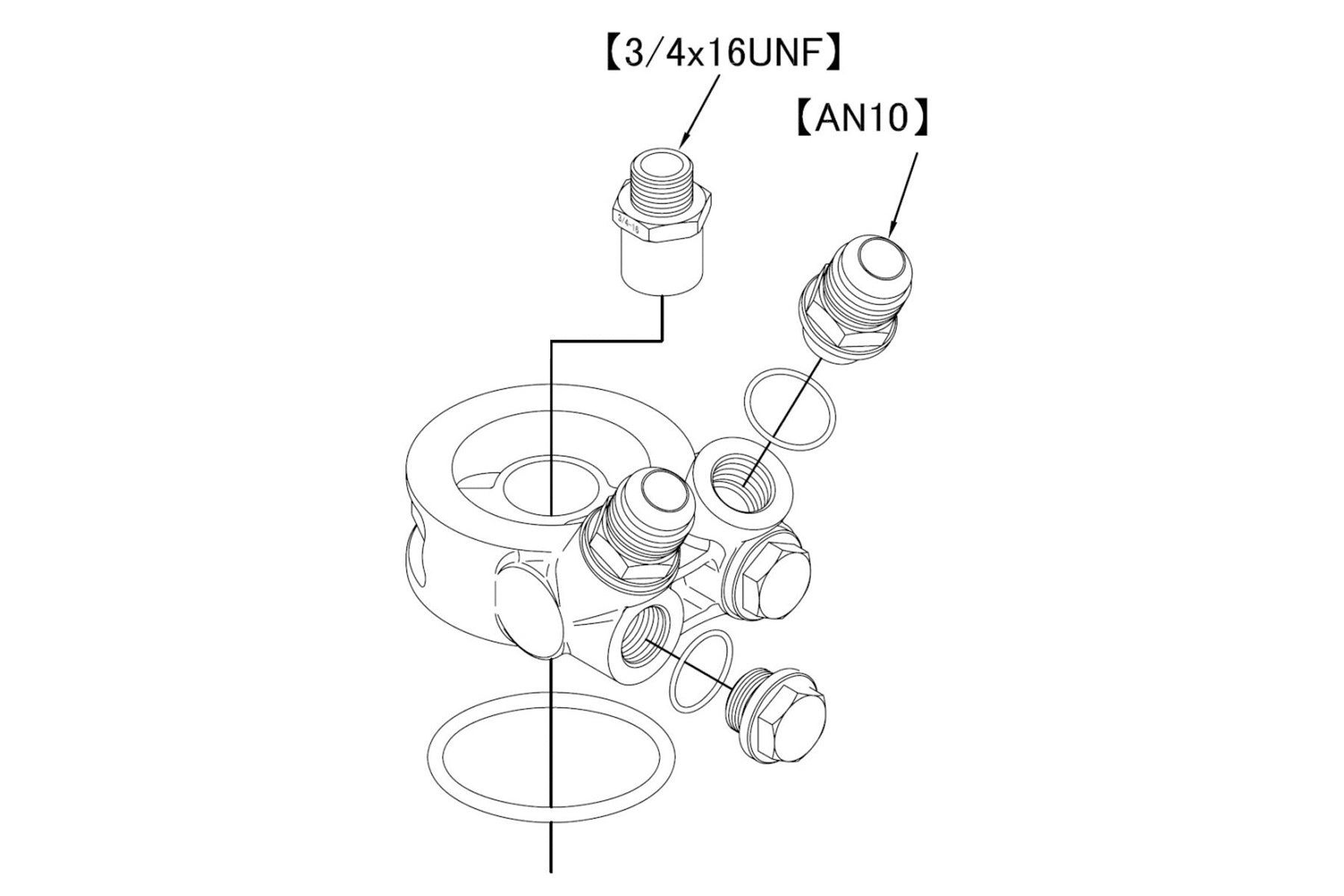

12401187 - Block 3/4-16UNF (Filter 3/4-16UNF)* - Make: most Toyota, Scion, Lexus and Nissan, Infiniti
or

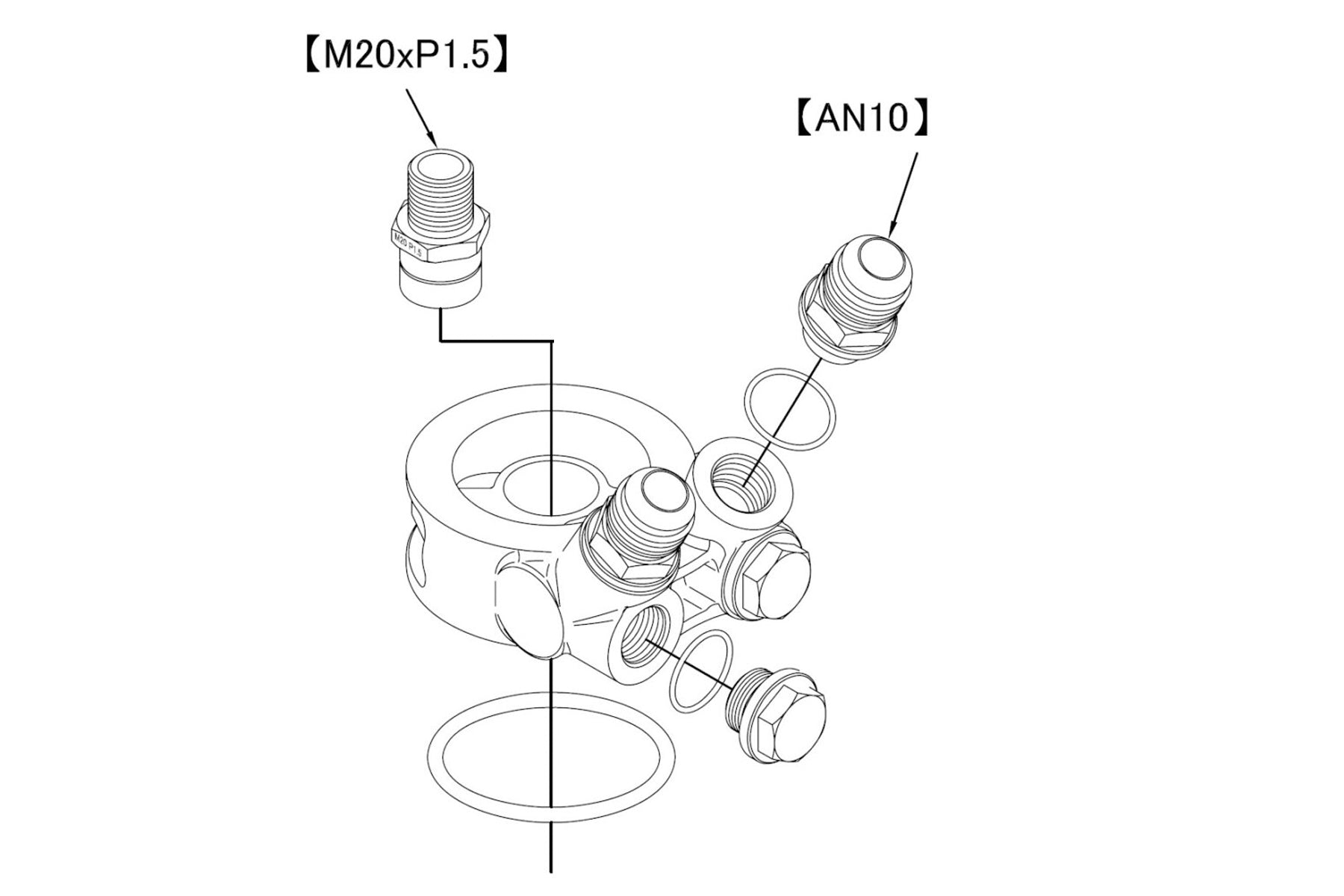

12401190 - Block M20xP1.5 (Filter M20xP1.5)** - Make: most Acura, Honda, Mitsubishi, Subaru and some Nissan, Infiniti (12401194 High)
*FILTER 3/4 x 16UNF use GReddy Sized Oil Filters: OX-01 P/N 13901101, OX-02 P/N 13901102, or OX-03 P/N 13901103 (3/4"x16UNF) or AE86 - 4AG sized Oil Filter.
**FILTER M20 x P1.5 use GReddy Sized Oil Filters: OX-04 P/N 13901104, or OX-5 P/N 13901105
Use P/N 16400720 for 1/8PT ports to use with Pressure & Temperature Sensors
* Also see P/N 12401119 for the M20 x P1.5 version of this adapter.
Product features
◆ Replacement thermostatic oil cooler block adapter for std. GReddy oil cooler kits
◆ Key component to build your very own custom GReddy oil cooler kit.
◆ The design of the oil block with built-in thermostat has been improved & updated, and the oil flow path has been reviewed to optimize the flow rate at low and high temperatures.
◆ Use factory replacement oil filter or matching GReddy oil filter per application.
* Oil filters with an outer diameter of Φ80 or less, O-ring inner diameters of Φ52 or more ~ outer diameters of Φ76 or less can be installed.
◆ Optional Oil block STD high type 12401194 is a 20mm high mount type of oil block STD. Compared to the spacer type, the installation work has been simplified, and the weight has been reduced. In addition, by making the mounting surface Φ70, it is possible to accommodate special mounting seating surfaces.
* Except for the lift-up part, it has the same design as the oil block STD. Please pay attention to the surrounding clearance.
◆ The updated screw size is engraved on the center bolt so that it can be identified at a glance.
Replacement Parts for Type E Oil Block (HERE)
