GReddy GT-R DCT Transmission Cooler Kit(s) - R35
Nissan (R35) 2009-on GT-R DCT Transmission [NS1310G] Cooler Kit
- 12024810 - CBA-R35 2008-11
- 12024811 - DBA-R35 2012-16
-

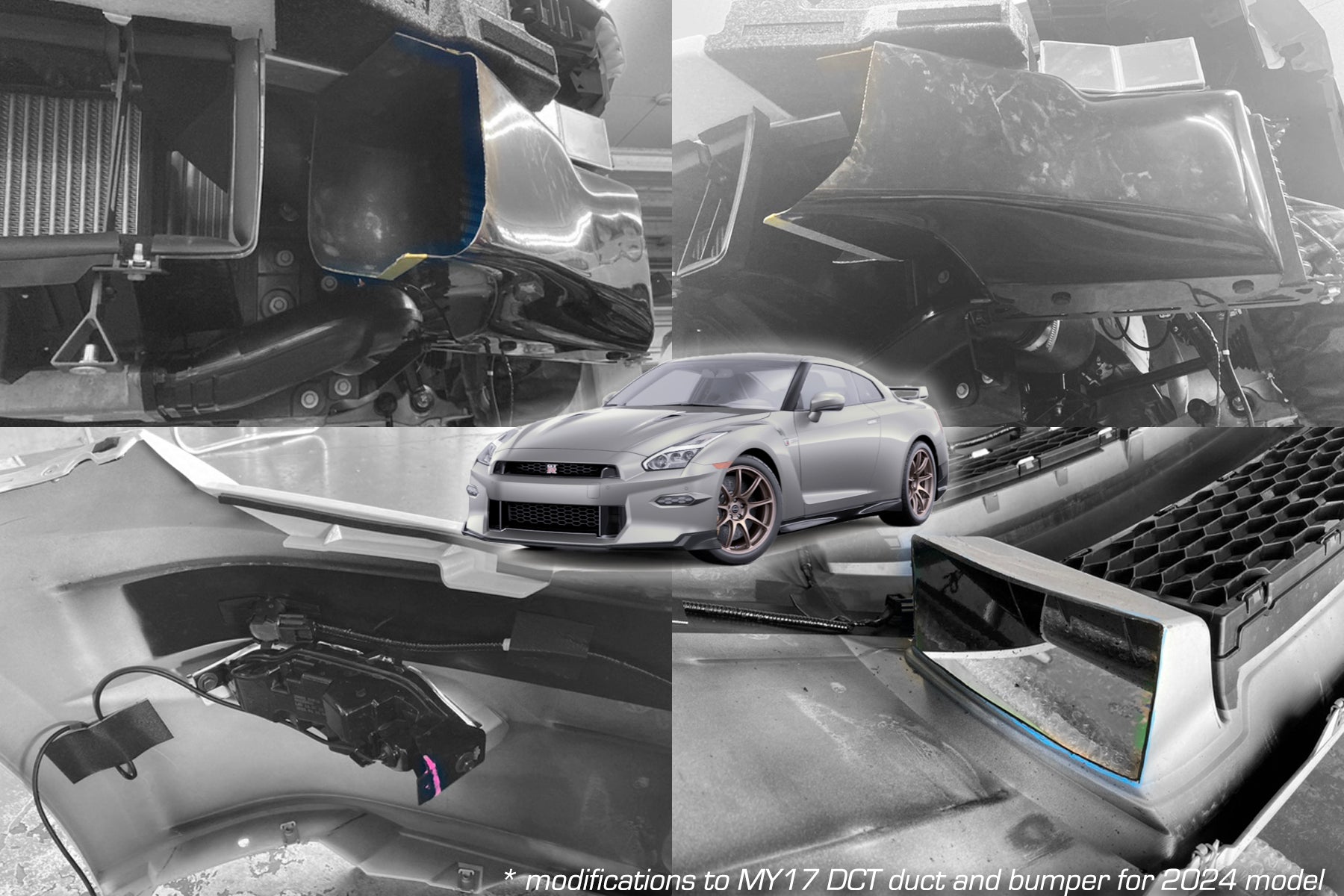

12024814 - EBA (MY17-17) 2017-21 (22-on with modifications to ducting)
* Optional R35 GTR Washer Tank kit Type 2

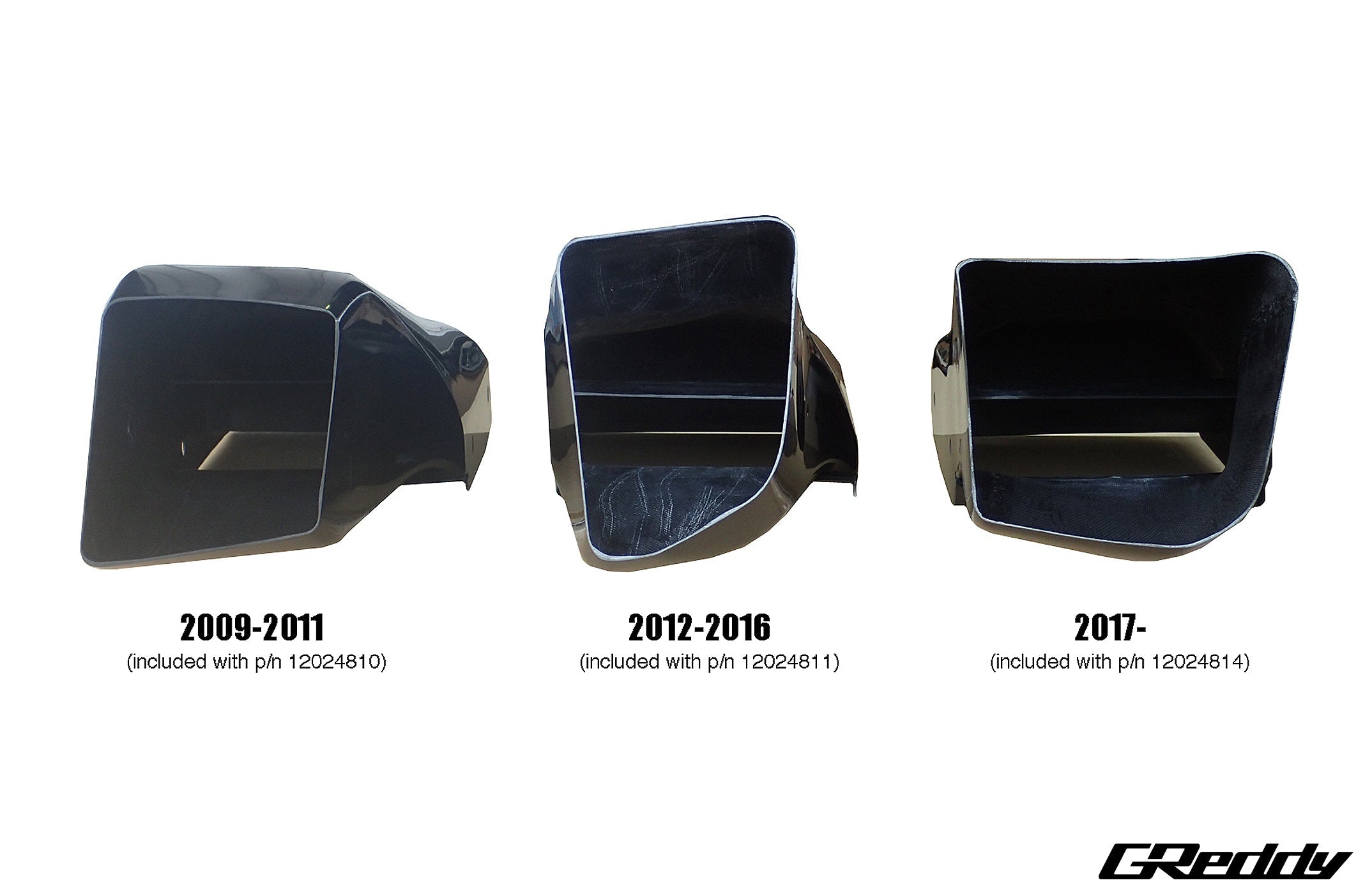

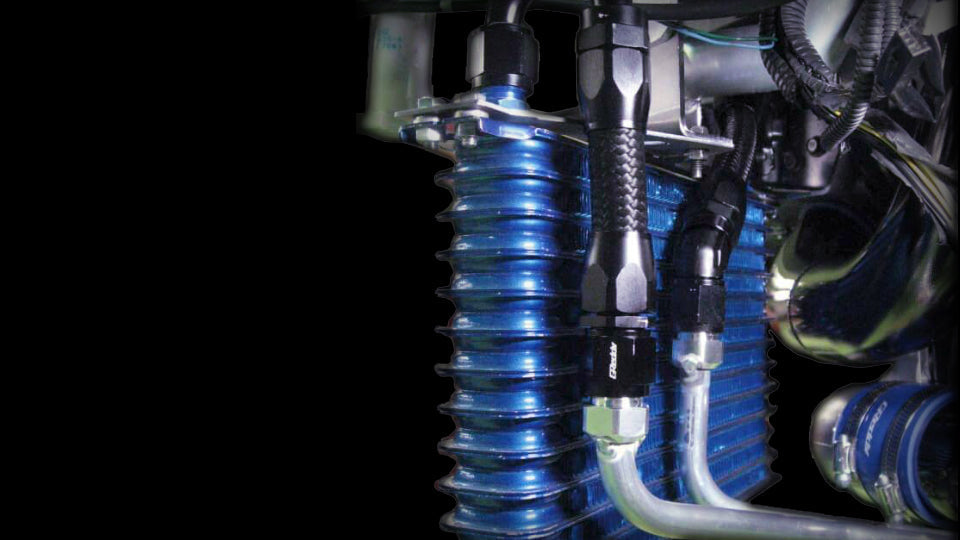

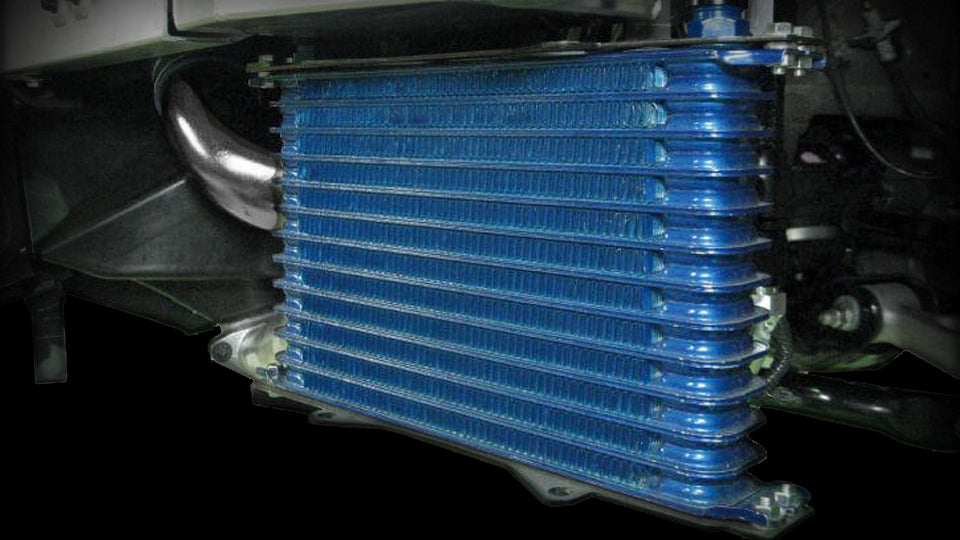

The GReddy R35 GT-R DCT Transmission Cooler Kit features our famous Blue with large 13row (inner-fin) core mounted in front fender. It also includes a model year specific *FRP divided air duct, similar to the OEM unit on the other side of the car for maximum cooling. The Dual Clutch Transmission Cooler Kit is a parallel system, with special billet internal Thermostat adapter, hardlines, etc. Installation is easy thanks to specialized GReddy R35 trans oil block. The internal thermostat ensures quick fluid warm-up and consistent oil temps and does not tax the standard coolant system. Carefully designed lightweight -14 hard-lines and braided-lines allow for a minimal routing lengths and maximum flow. Completing the kit are all the necessary mounts, hose fitting and 3-piece billet flanges with O-rings.
Also available as an option, is our GReddy R35 Window Washer Tank option. This is ideal to keep you window washer working even with use of either our DCT or front-mounted Intercooler kits.
Remarks

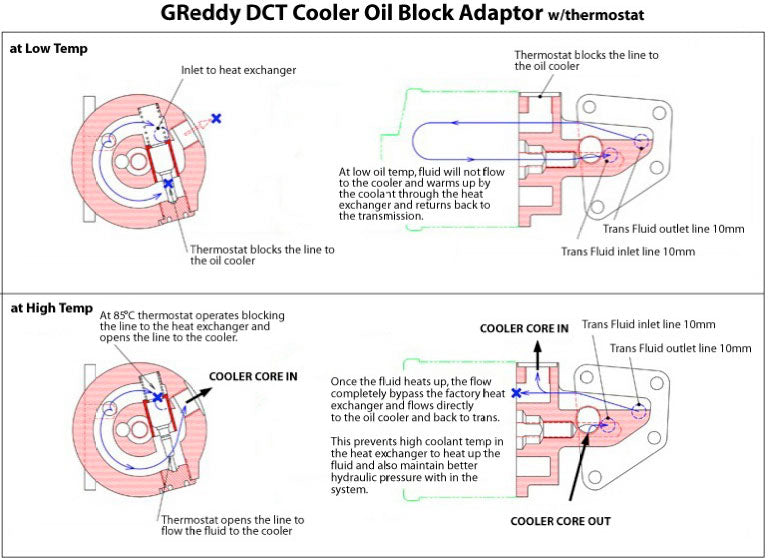

- Machined aluminum oil block for R35GTR (with built-in thermostat)
- A special aluminum pipe runs from the oil block to the core. (Some piping is done with black nylon mesh hose and GReddy fittings)

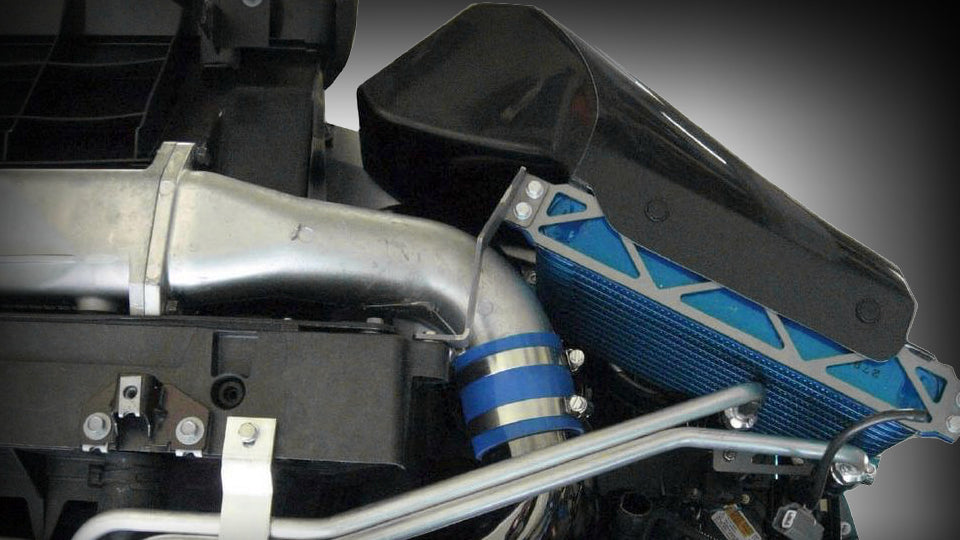

- Comes with FRP duct with special inner blade.
- Separate washer tank required. (TRUST CODE:13526111)
